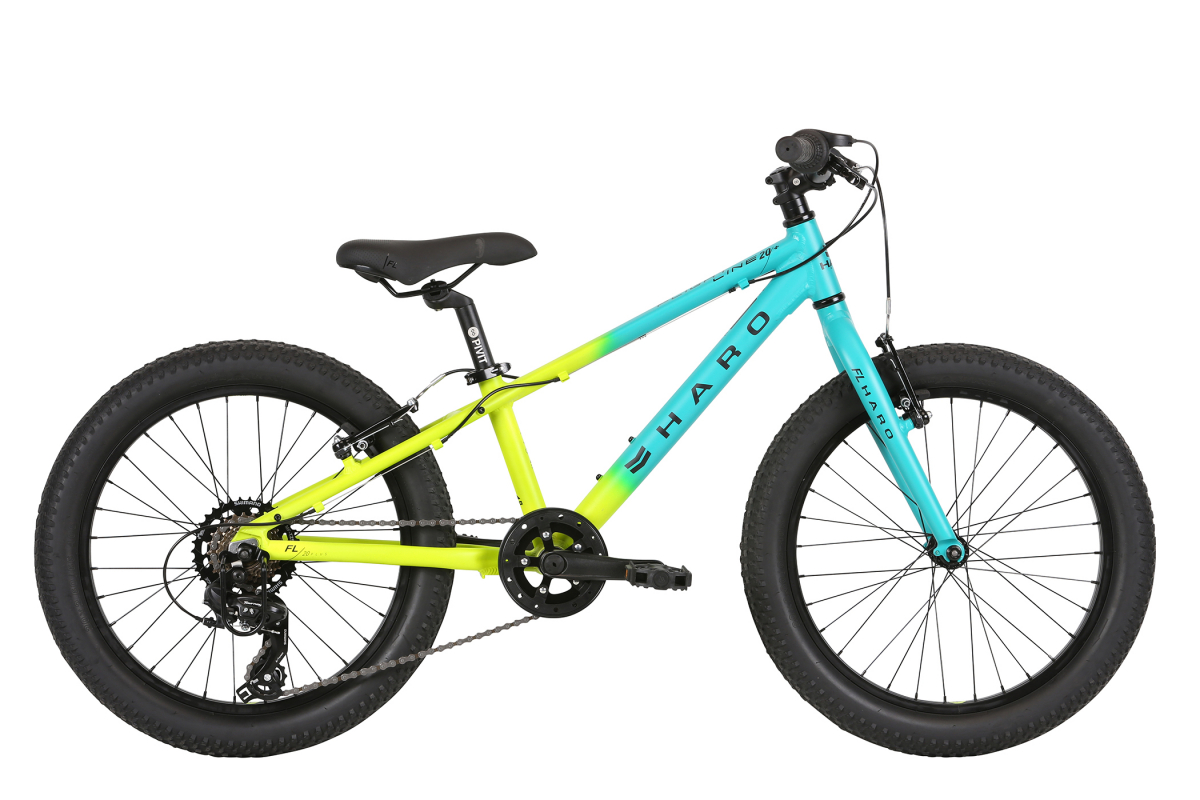

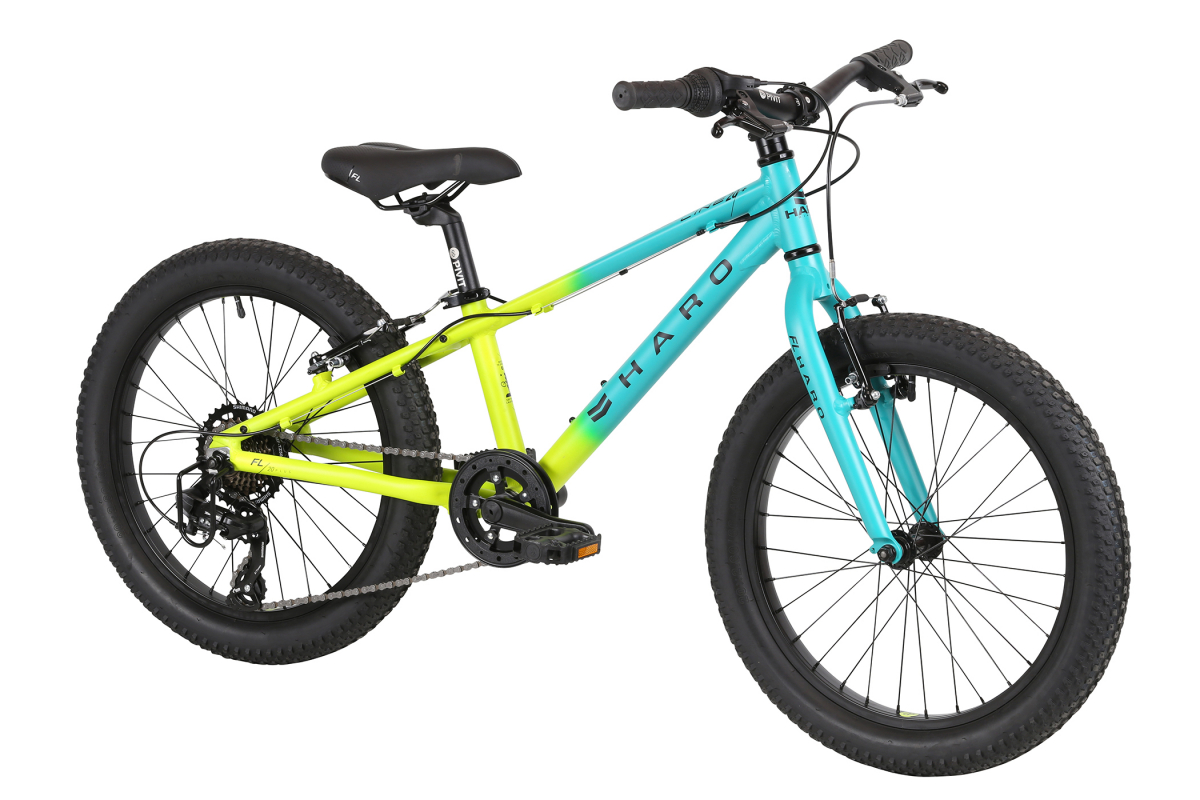

Flightline 20 Plus
| Year | 2021 |
|---|---|
| MSRP | $389.99 * |
| Sizes | 20" |
| Colors | Grey / Charcoal Fade, Matte Teal / Neon Yellow Fade |
| Weight |
Who said you have to be an adult to experience a plus size ride? Not us...The Flightline 20 Plus features plus-size bump-absorbing 2.6" MTB tires matched to 32-hole aluminum rims. The FL 20 Plus is surprisingly light, thanks to its aluminum frame and rigid alloy fork. A Revo 7-speed twist-shifter keeps shifting simple and intuitive with a Shimano Tourney rear derailleur protected against accidental mishaps by a bolt-on-guard. The FL 20 Plus is ready to hit the trails...
FEATURES
- FL 20" Plus X6 Series frame, new chainstays
- 1-1/8" Threadless headset
- 6000 Series aluminum 1-1/8" fork
- Aluminum 3-pc 28T crankset w/ double chainguard
- New Shimano Tourney TY-200 rear derailleur
- Shimano Tourney 7-spd Revo shifter
- New Tourney TZ510 7-spd 14-34T freewheel
- 31mm wide rims w/ aluminum 32h hubs
- H-5183 20"x2.60" tires
| Frame Components | |
|---|---|
| Frame | Haro Flightline 20" Plus FL3G 6000 series Aluminum | New Chainstay Design | V-Brake bosses |
| Fork | 20" Rigid Aluminum Legs Chromoly steer Tube | V-Brake bosses |
| Headset | 1-1/8" threadless steel cups, loose ball, Nylon Top |
| Drivetrain | |
| Cranks | Aluminum 3-pc 28T | Double-chainguard | 5" / 127mm |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC Z7 1/2"x3/32" |
| Rear Deralleur | New Shimano Tourney TY-200 |
| Derailleur Shifter | Shimano Revo 7-spd |
| Pedals | MTB nylon body |
| Wheels | |
| Tires | H-5183 | 20"x2.60" |
| Wheels/Rims | Aluminum single wall 20" 31mm wide |
| Hubs | Pivit steel 32h nuts |
| Freewheel/Cassette | New Shimano Tourney MF-TZ510 7-spd freewheel 14-34T |
| Spokes | Steel BED |
| Braking System | |
| Brakes | Promax TX-121 V-Brakes |
| Brake Levers | Promax BL-81G | Short reach |
| Other Components | |
| Grips | Haro MTB |
| Handle Bar | Pivit alloy 25mm riser bar | 31.8mm O.D. |
| Stem | Pivit melt forged stem w/ 4 bolts | 31.8mm bar bore |
| Seat | Haro Flightline Jr |
| Seat Post | Pivit alloy micro adjust 27.2mm |
| Seat Clamp | Pivit alloy 31.8mm quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 69° | 71° | 469mm (18.5") | 260mm (10.2") | 372mm (14.6") | 15mm (0.6") | 890mm (35") | 554mm (21.8") | 432mm (17") | 320mm (12.6") | 351mm (13.8") | 35mm (1.4") | 45mm | 620mm | 127mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
