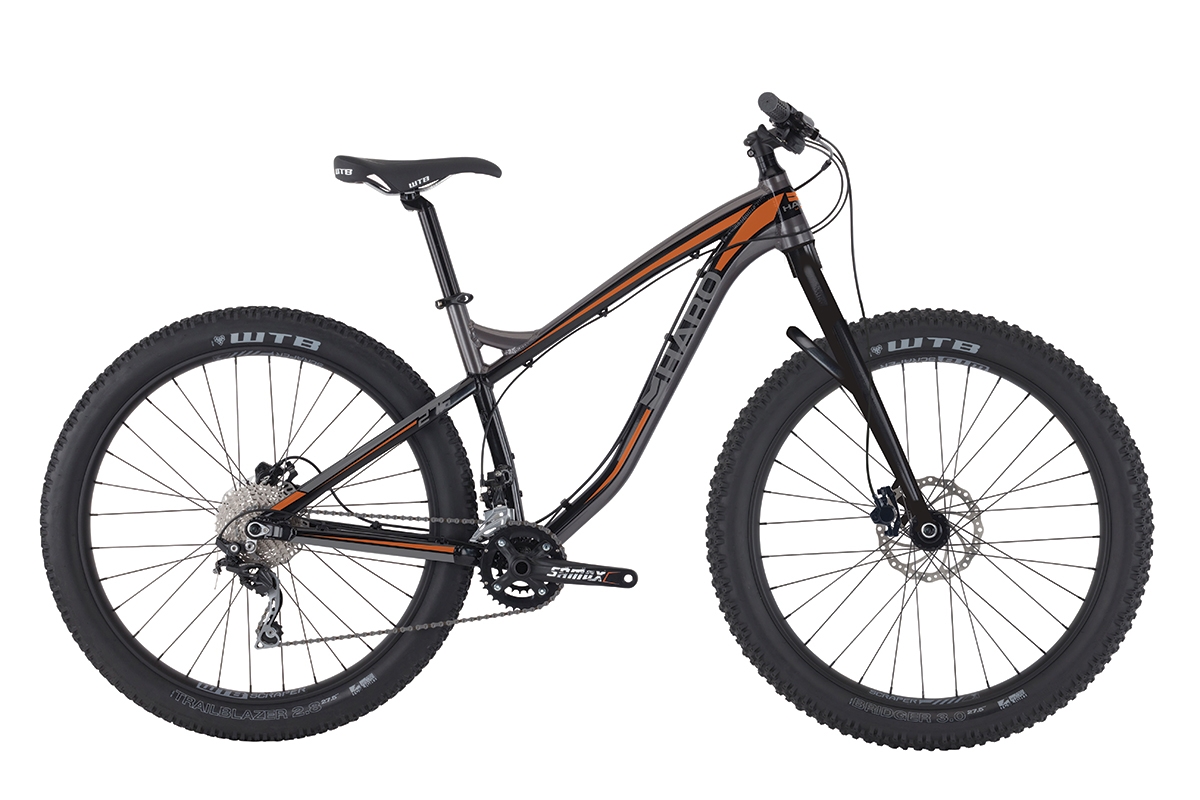

Featuring the same high-end aluminum frame and hollow chainstay yoke as the HT7 and HT5, The HT3 sports a lightweight aluminum fork as the only full rigid model in the line. Suspension, comfort and incredible traction are delivered by the new WTB Bridger and Trail Blazer tires rideable at low air pressure. 2x10 Shimano gearing, 2-pc crankset, Tektro disc brakes & tubeless ready WTB TCS wheels & tires complete a high quality package.
FEATURES
- 6061-T6 Series alloy Hardtail frame, 27.5" Plus / 29" geometry, Tapered 1.5" head tube, 73mm BB shell, 12x148mm Boost Thru-Axle dropouts
- Full Alloy fork, 1-1/8 - 1.5" Taper alloy steerer, Boost 110mm axle w/ Q/R
- FPD DOZER headset w/ 1.5" AC Bearing bottom cup
- Samox 2-pc 36/22T crankset, 24mm Axle, Boost 148 & 10-spd compatible
- Shimano Deore 2x10 derailleurs & shifters
- Shimano 10-spd 11-36T cassette
- WTB Scraper 27.5"Plus 50mm wide, alloy double wall rims w/ TCS i45 rim tape, Tubeless ready
- WTB Bridger Comp 27.5x3.0" front & Trail Blazer 2.8" rear tires, TCS, Aramid 60 tpi
- Pivit Boost alloy disc hubs, 32h, 110mm Q/R axle front & 12x148mThru-Axle rear
| Frame Components | |
|---|---|
| Frame | 6061-T6 Series alloy Hardtail frame, 27.5" Plus / 29" geometry, Tapered 1.5" head tube, 73mm BB shell, 12x148mm Boost Thru-Axle dropouts |
| Fork | Full Alloy 27.5" / 29" geometry; 1-1/8 - 1.5" Taper alloy steerer, Boost 15x110mm Thru-Axle |
| Headset | FPD DOZER-1048 w/ 1.5" ACB bottom for 44/56mm Head Tube (28.6/41-39.8/56mm) |
| Drivetrain | |
| Cranks | Samox TAF12-231AS / 2-pc, BCD 104 36/22T w/ 24mm Axle, Boost 148 & 10-spd chainrings compatible |
| Bottom Bracket | Samox EB2401 sealed cartridge, for 53mm chainline (Boost 148) |
| Chain | KMC X10 NP/GY MTB 10-spd |
| Front Derailleur | Shimano Deore, Down Swing, Top Pull, Direct Mount |
| Rear Deralleur | Shimano Deore, 10-spd, Top Normal, Shadow Design |
| Derailleur Shifter | Shimano Deore, 2x10-spd, w/ Optical gear display |
| Pedals | N/A |
| Wheels | |
| Tires | WTB Bridger Comp, 27.5*3.0" Dual DNA, TCS, Aramid Bead 60 tpi |
| Wheels/Rims | WTB Scraper 27.5"Plus, 50mm width, alloy double wall rims w/ TCS i45 rim tape, Pivit Boost alloy disc hubs, 32h, Thru-Axles 15x110mm Front & 12x148mm Rear w/ 10-spd cassette / TCS Brass Tubeless Valves, 34mm x 6.3mm, included |
| Freewheel/Cassette | Shimano CS-HG50-10, 10-spd 11-13-15-17-19-21-24-28-32-36T |
| Braking System | |
| Brakes | Tektro Auriga Hydraulic 180/160mm rotors |
| Brake Levers | Tektro Auriga |
| Other Components | |
| Grips | WTB Weirwolf |
| Handle Bar | Pivit alloy 25mm riser bar 31.8mm |
| Stem | Pivit Alloy Trail 0 Deg., 4-Bolts, 55mm ext. |
| Seat | WTB Pure Sport |
| Seat Post | Pivit alloy micro adjust 31.6mm |
| Seat Clamp | Pivit alloy 34.9mm quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.5 | 68.5° | 71.5° | 555mm (21.9") | 368.3mm (14.5") | 440mm (17.3") | 54mm (2.1") | 1073mm (42.2") | 791mm (31.1") | 626mm (24.6") | 364mm (14.3") | 45mm (1.8") | ||||
| 16 | 68.5° | 71.5° | 575mm (22.6") | 406.4mm (16") | 440mm (17.3") | 54mm (2.1") | 1101mm (43.3") | 791mm (31.1") | 626mm (24.6") | 391mm (15.4") | 45mm (1.8") | ||||
| 18 | 68.5° | 72.8° | 600mm (23.6") | 457.2mm (18") | 440mm (17.3") | 54mm (2.1") | 1133mm (44.6") | 796mm (31.3") | 635mm (25") | 420mm (16.5") | 45mm (1.8") | ||||
| 20.5 | 68.5° | 72.8° | 620mm (24.4") | 520.7mm (20.5") | 440mm (17.3") | 54mm (2.1") | 1158mm (45.6") | 819mm (32.2") | 645mm (25.4") | 441mm (17.4") | 45mm (1.8") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
