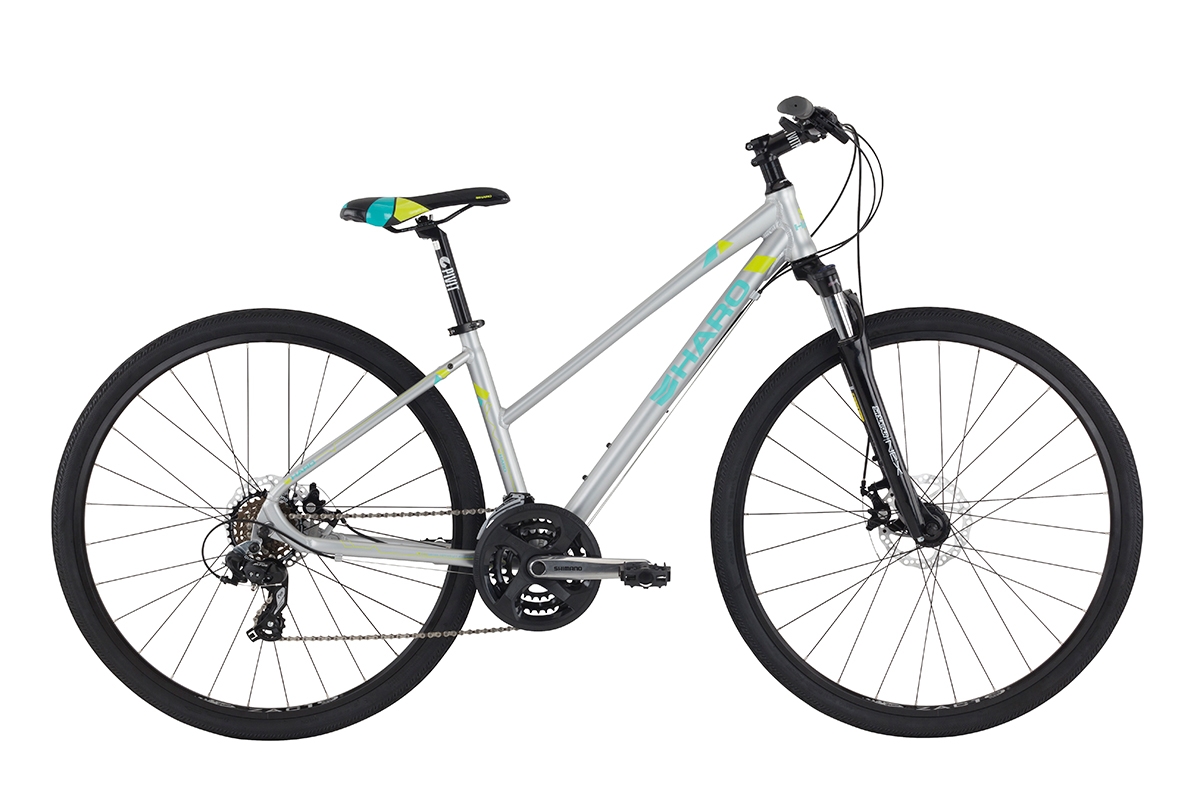

Bridgeport ST
| Year | 2016 |
|---|---|
| MSRP | $509.99 * |
| Sizes | 14", 16" |
| Colors | Light Grey, White / Purple |
| Weight |
An all-new and lightweight Step-Thru alloy frame forms the backbone of this agile new women’s bike offering. Smart spec completes the package, and the great color choices is the icing on the cake.
FEATURES
- All-New Haro Solum Dual Sport frame w/ Rider Optimized Geometry, mechanically-shaped alloy tubing & chainstay disc brake mount
- SR Suntour NEX HLO suspension fork w/ 63mm travel & hydraulic lockout
- Shimano M131 crankset, 48/38/28 & sealed cartridge BB
- Shimano Altus rear derailleur
- Shimano Tourney 7 speed EZ Fire shifters, front derailleur
- Pivit disc brake hubs and Weinmann ZAC19 double wall rims
- Wide-ratio Shimano HG-200 12-32 8-speed cassette
- New Pivit alloy 9* sweep riser bar& forged stem
- Custom Haro Solum saddle
- Tektro Aires mechanical disc brakes
| Frame Components | |
|---|---|
| Frame | Haro Solum 6061 with Rider-Tuned Geometry |
| Fork | SR Suntour NEX HLO 63mm travel w/ hydraulic Lockout |
| Headset | FSA Orbit No. 10 |
| Drivetrain | |
| Cranks | Shimano M131 48/38/28t w/ sealed cartridge BB |
| Chain | KMC Z51 |
| Front Derailleur | Shimano Tourney TX-51 |
| Rear Deralleur | Shimano Altus M280 |
| Derailleur Shifter | Shimano EF-51 7-speed |
| Pedals | Wellgo nylon body |
| Wheels | |
| Tires | Chao Yang H-5113 700 x 38c |
| Wheels/Rims | Weinmann ZAC19 alloy double wall rims, alloy disc hubs |
| Freewheel/Cassette | Shimano HG-20 7-speed cassette 12-32T |
| Braking System | |
| Brakes | Tektro Aires mechanical disc, 160mm rotors |
| Brake Levers | Shimano EF-51 |
| Other Components | |
| Grips | Haro Dual Sport |
| Handle Bar | Pivit alloy 25mm riser bar 31.8mm 9 degree sweep |
| Stem | Pivit alloy stem, 31.8mm |
| Seat | Haro Dual Sport saddle |
| Seat Post | Pivit alloy micro adjust 27.2mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 70° | 74° | 550mm (21.7") | 355mm (14") | 445mm (17.5") | 60mm (2.4") | 1058mm (41.7") | 680mm (26.8") | |||||||
| 16 | 70° | 74° | 572mm (22.5") | 406mm (16") | 445mm (17.5") | 60mm (2.4") | 1081mm (42.6") | 682mm (26.9") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
