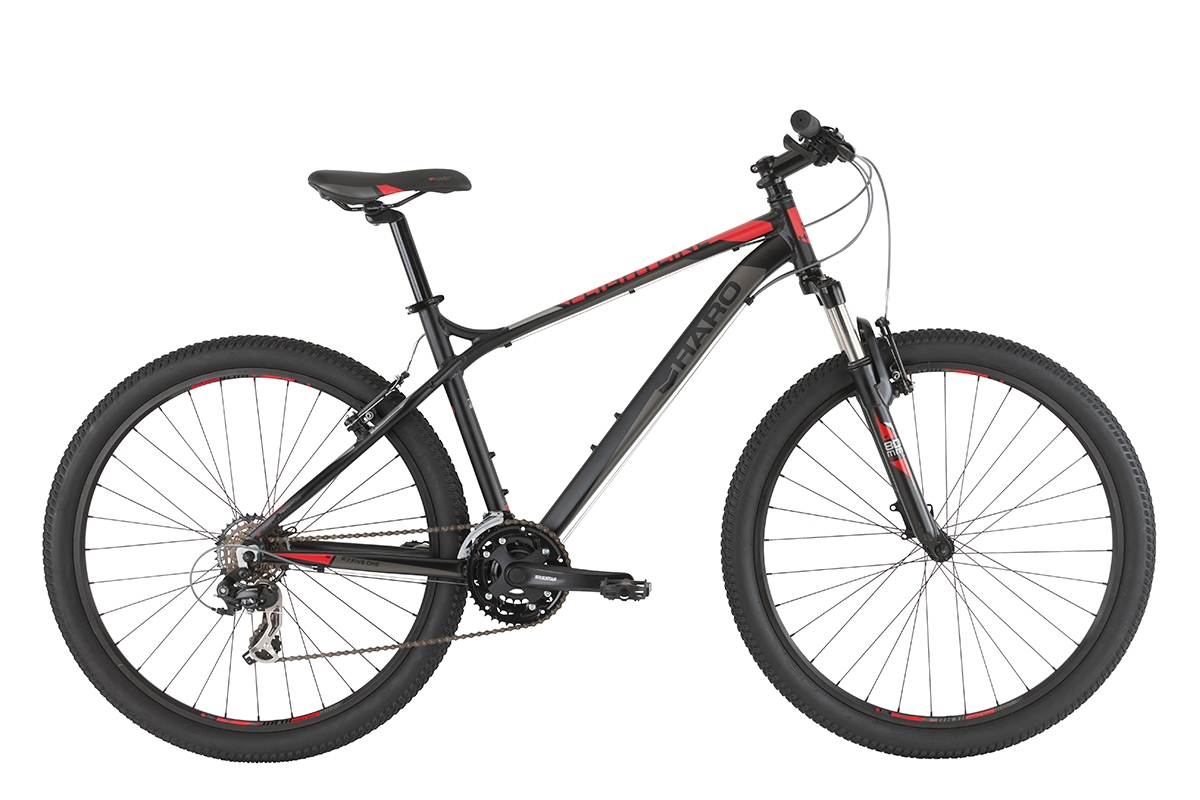

Bigger 27.5-inch wheels roll with more authority, and with 21 speeds to conquer steep hills, the 2016 Flightline One 27.Five and its revamped low standover height frame design is an even more comfy and trusted companion both on and off-road.
FEATURES
- New FL3Gr 6000 Series alloy frame
- HL CH-389 27.5" suspension fork w/ 80mm travel
- 1-1/8" Threadless headset
- Suntour XCC-T102 42/34/24 alloy crankset
- Sealed cartridge BB set
- Shimano Tourney TX-50 front derailleur
- Shimano Tourney TX-35 rear derailleur
- Shimano EF-41 3x7-speed shifters
- Shimano HG-20 7-speed cassette 12-32T
- Pivit alloy 25mm riser bar 31.8mm & melt forged stem
- DH 18 alloy double wall rims w/ Pivit alloy cassette 32h hubs
| Frame Components | |
|---|---|
| Frame | New MY16 Haro Flightline 27.Five FL3G 6000 Series alloy |
| Fork | HL CH-389 fork, 27.5" w/ 80mm Travel |
| Drivetrain | |
| Cranks | SR Suntour XCC-T102 42/34/24 |
| Bottom Bracket | Sealed cartridge BB |
| Front Derailleur | Shimano Tourney TX-50 |
| Rear Deralleur | Shimano Tourney TX-35 |
| Derailleur Shifter | Shimano EF-41 7-speed |
| Pedals | MTB nylon body |
| Wheels | |
| Tires | H-5129 27.5 x 1.95" |
| Wheels/Rims | DH 18 alloy double wall / Pivit alloy cassette 32h |
| Freewheel/Cassette | Shimano HG-20 7-speed cassette 12-32T |
| Braking System | |
| Brakes | Promax TX-121 V-Brake |
| Brake Levers | Shimano EF-41 |
| Other Components | |
| Grips | Haro MTB |
| Handle Bar | Pivit alloy 25mm riser bar 31.8mm |
| Stem | Pivit melt forged stem |
| Seat | Haro Flightline saddle |
| Seat Post | Pivit alloy micro adjust 30.9mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 70° | 72.5° | 567mm (22.3") | 356mm (14") | 425mm (16.7") | 38.5mm (1.5") | 1045mm (41.1") | 729mm (28.7") | 589mm (23.2") | 381mm (15") | |||||
| 16 | 70° | 72.5° | 593mm (23.3") | 406mm (16") | 425mm (16.7") | 38.5mm (1.5") | 1071mm (42.2") | 746mm (29.4") | 594mm (23.4") | 405mm (15.9") | |||||
| 18 | 70° | 72.5° | 623mm (24.5") | 457mm (18") | 425mm (16.7") | 38.5mm (1.5") | 1100mm (43.3") | 772mm (30.4") | 594mm (23.4") | 435mm (17.1") | |||||
| 20 | 70° | 72.5° | 634mm (25") | 508mm (20") | 425mm (16.7") | 38.5mm (1.5") | 1112mm (43.8") | 798mm (31.4") | 599mm (23.6") | 444mm (17.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
