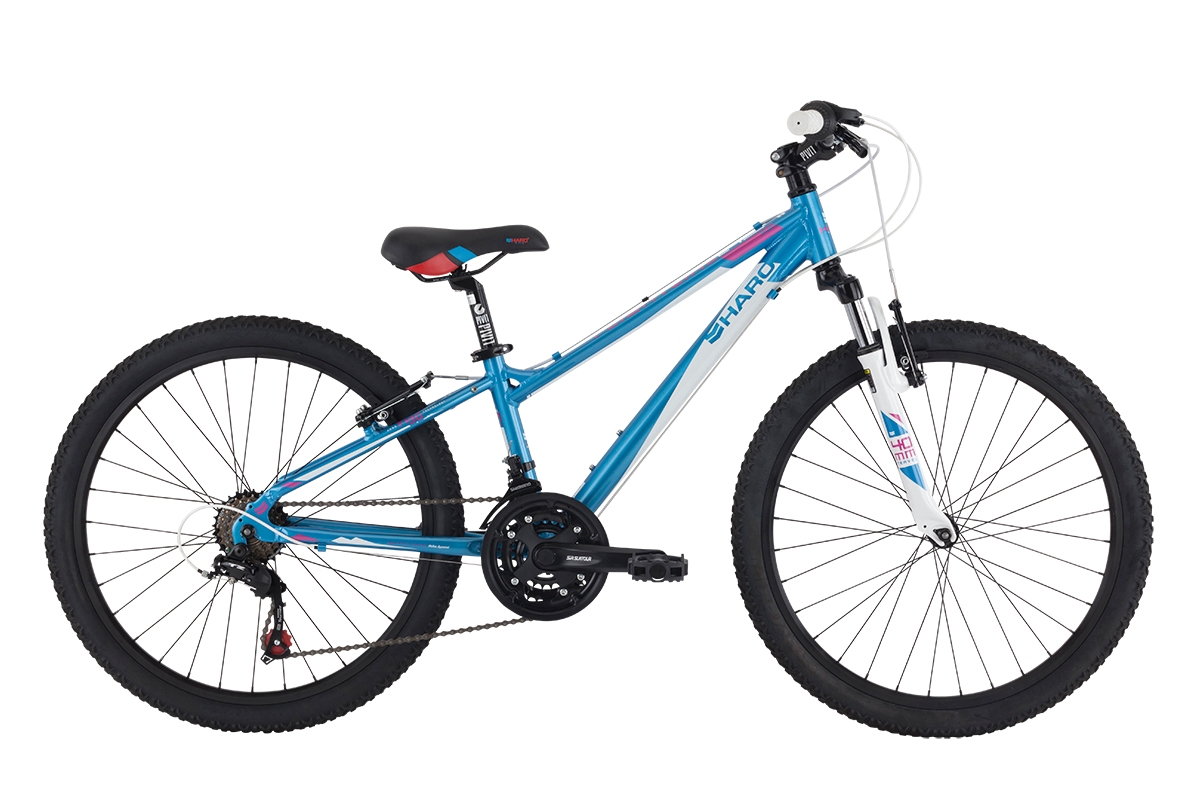

Flightline 24

Year 2016
MSRP $329.99 *
Sizes 24"
Colors Slate Grey / Green, Black / Charcoal, Blue / Pink
Weight 27.9 lbs

Adding more gears and bigger wheels to the mix, the Flightline 24 is perfect for adventurous kids who love to ride but aren’t quite big enough for adult-sized bikes yet.

FEATURES

  • Flightline FL3G 6000 Series alloy frame
  • HL 410E suspension fork w/ 40mm travel
  • 1-1/8" Threadless headset
  • Suntour XCC-T102 42/32/22 alloy crankset w/ sealed cartridge BB set
  • Shimano Tourney TZ-30 front derailleur
  • Shimano Tourney TZ-50 rear derailleur
  • Revo 6-Speed shifter
  • Shimano Tourney 6-speed freewheel 14-28T
  • Pivit 30mm riser bar & melt forged stem
  • Alloy single wall 24" rims w/ Pivit 32h hubs
SPECIFICATIONS
Frame Components
Frame Haro Flightline FL3G 6000 Series alloy
Fork HL 410E fork- 40mm travel
Headset 1-1/8" Threadless Steel Cups, Loose Ball, Nylon Top
Drivetrain
Cranks SR Suntour XCC-T102 42/32/22
Bottom Bracket Sealed cartridge BB
Front Derailleur Shimano Tourney TZ-30
Rear Deralleur Shimano Tourney TZ-50 6-speed
Derailleur Shifter Shimano Revo 6-speed
Pedals MTB nylon body
Wheels
Tires H-5120 24 x 1.95"
Wheels/Rims C20 alloy single wall 24" rims w/ Pivit steel 32h nutted hubs
Freewheel/Cassette Sunrace 6-speed freewheel 14-28T
Braking System
Brakes Promax TX-121 V-Brake
Brake Levers Promax BL-42G
Other Components
Grips Haro MTB
Handle Bar Pivit Steel 30mm riser bar
Stem Pivit melt forged stem
Seat Haro Flightline Jr saddle
Seat Post Pivit alloy micro adjust 27.2mm
Seat Clamp Pivit alloy 31.8mm quick release
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
24 71° 74° 516mm (20.3") 305mm (12") 425mm (16.7") 40mm (1.6") 1000mm (39.4") 635mm (25") 511mm (20.1") 369mm (14.5")

RESOURCES

Owner's manual: Bike Manual PDF

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
