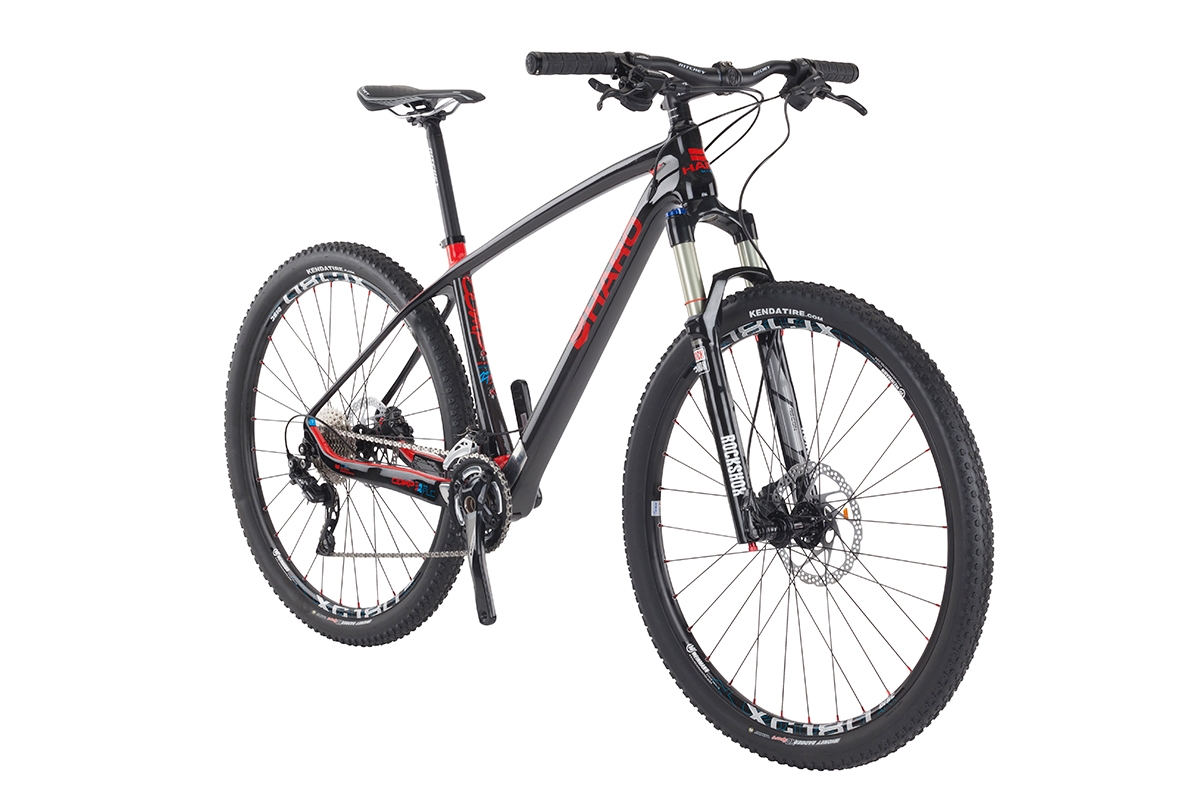

Carving corners with razor-sharp precision is made easier and more effortless than ever thanks to the new 27.5-inch wheels Comp model. Tapered head tube, RockShox Recon Gold fork, front and rear thru-axles and Shimano Deore / XT components deliver a lightweight quality ride.
FEATURES
- 2016 Haro FL Carbon 27.5 Series w/ tapered head tube, BB92 shell, 12mm rear Thru-Axle, Direct mount side-swing front derailleur
- RockShox Recon Gold TK 27.5in taper fork, 100mm travel, 15mm Thru Axle
- Ritchey Comp Logic Zero Drop-In, tapered 1-1/8"-1.5" headset, w/ ACB sealed bearings
- FSA Comet Mega Exo 38/24t crankset & BB-CFM92/CZ Press Fit BB set
- Shimano Deore front derailleur, Direct Mount / Side-swing
- Shimano XT GS Shadow rear derailleur
- Ritchey MTN 20mm riser handlebar
- Ritchey WCS Trail Lock On grips
- Kenda Honey Badger XC 27.5*2.05" 60tpi tires
- Weinmann XC-180 Disc alloy double wall rims, Pivit alloy disc 28h hubs w/ cassette, Thru-Axle Front 15mm & Shimano Rear 12mm
| Frame Components | |
|---|---|
| Frame | MY16 Haro FL Carbon 27.5 Series w/ taper headtube, BB92, 12mm rear Thru-Axle, Direct mount front derailleur |
| Fork | Rock Shox Recon Gold TK 27.5in Taper, 100mm travel, 15mm Thru Axle |
| Headset | Ritchey Comp Logic Zero Drop-In, tapered 1-1/8" / 1.5", w/ ACB Sealed Bearings |
| Drivetrain | |
| Cranks | FSA Comet Mega Exo 38/24T |
| Bottom Bracket | FSA BB-CFM92/CZ Press Fit BB92 |
| Chain | KMC X10 NP/GY, 1/2" x 11/128" |
| Front Derailleur | Shimano Deore, Low Direct Mount |
| Rear Deralleur | Shimano XT GS Shadow |
| Derailleur Shifter | Shimano Deore 10-speed |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Honey Badger XC 27.5*2.05" 60tpi |
| Wheels/Rims | Weinmann XC-180 Disc alloy double wall rims, Pivit alloy disc hubs 28h w/ cassette, Thru-Axle Frt 15mm & Shimano Rr 12mm |
| Freewheel/Cassette | Shimano HG-62 10-speed 11-34T |
| Braking System | |
| Brakes | Shimano BR-396 |
| Brake Levers | Shimano BR-396 |
| Other Components | |
| Grips | Ritchey WCS Trail Lock On |
| Handle Bar | Ritchey MTN 20mm riser bar 31.8mm |
| Stem | Ritchey 4 Axis 6/84 Deg. |
| Seat | Ritchey Comp Streem V3 |
| Seat Post | Ritchey alloy micro adjust 27.2mm |
| Seat Clamp | Allloy for Carbon post, 31.8mm O.D. |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 70.3° | 73.5° | 567mm (22.3") | 380mm (15") | 427mm (16.8") | 45mm (1.8") | 1059mm (41.7") | 766mm (30.2") | 580mm (22.8") | 395mm (15.6") | |||||
| 17 | 71° | 73° | 587mm (23.1") | 430mm (16.9") | 427mm (16.8") | 45mm (1.8") | 1066mm (42") | 793mm (31.2") | 590mm (23.2") | 406mm (16") | |||||
| 19 | 71° | 73° | 602mm (23.7") | 480mm (18.9") | 427mm (16.8") | 45mm (1.8") | 1081mm (42.6") | 820mm (32.3") | 598mm (23.5") | 419mm (16.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
