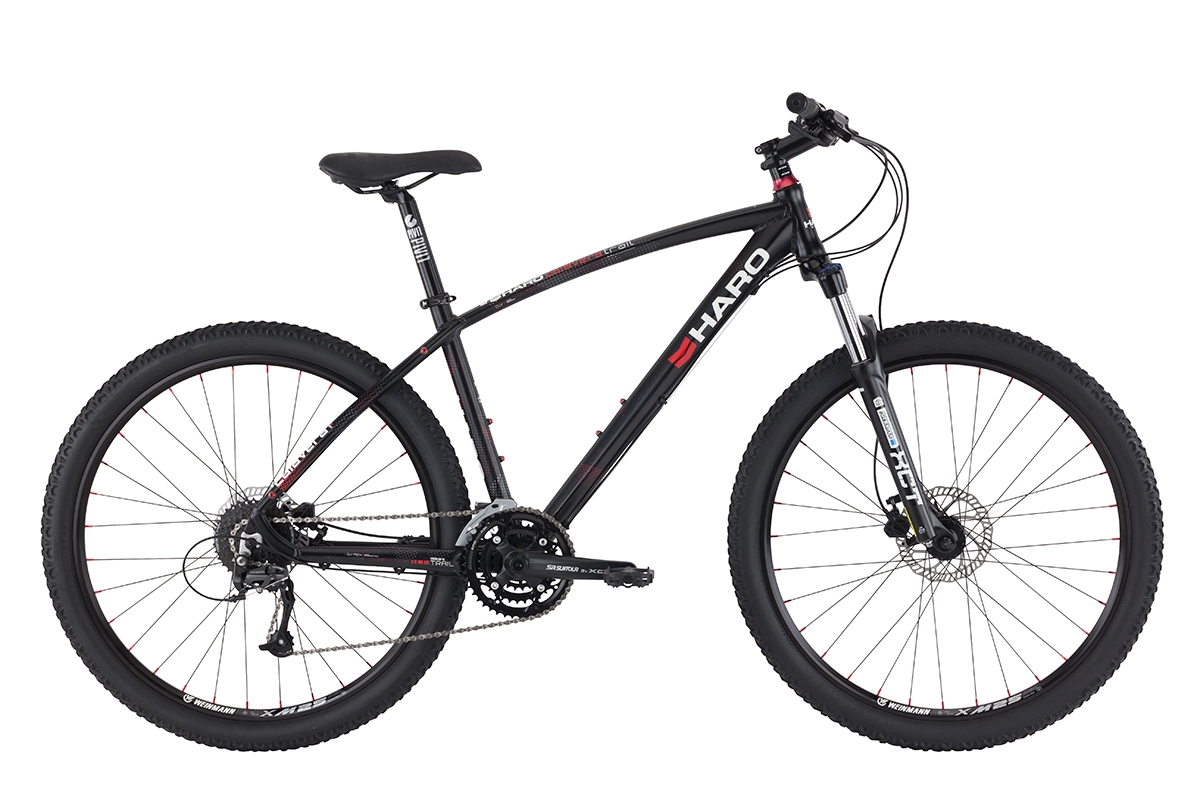

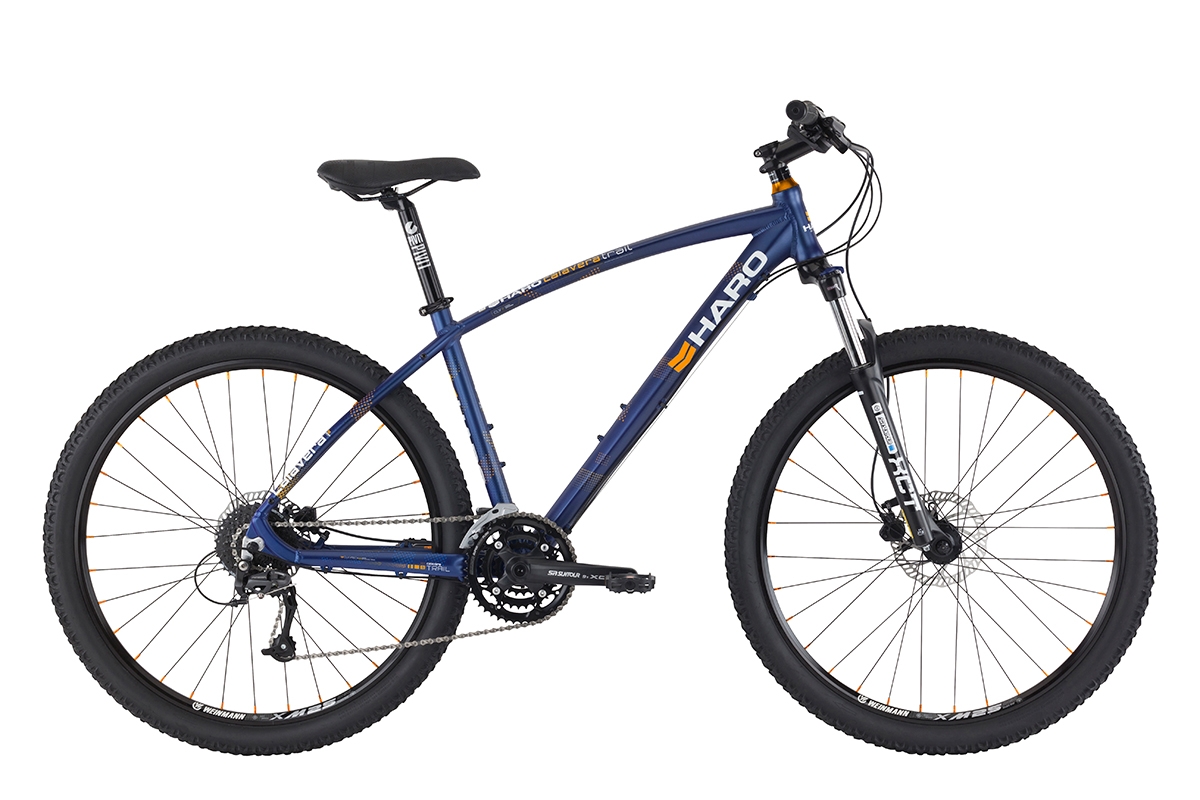

Fun is in the numbers, and with 100mm of suspension travel for tackling bumps and a new 27-speed Shimano Altus / Acera drivetrain for clawing over terrain, the Calavera Trail is one high-performance ride.
FEATURES
- Revised Calavera 6000 Series alloy frame
- New 2016 Suntour XCT 100mm travel fork w/ hydraulic Lockout
- XCT-414 44/34/24t crankset w/ sealed cartridge BB
- Shimano Altus front derailleur
- Shimano Acera 9-speed rear derailleur
- Shimano HG-200 9-speed 11-34T cassette
- Weinmann XM-25 Disc alloy double wall rims, Pivit alloy disc cassette 32h hubs
- Tektro Auriga Hydraulic disc brakeset
| Frame Components | |
|---|---|
| Frame | Revised Haro Calavera 27.Five 6000 Series alloy |
| Fork | New MY16 SR Suntour XCT 100mm travel w/ Hydraulic Lockout |
| Headset | FSA No. 10P, 1-1/8" Threadless for 50mm OD headtube; w/ 15mm top cover |
| Drivetrain | |
| Cranks | SR Suntour XCT-414 42/34/24T |
| Bottom Bracket | SR Suntour BB10-XCT sealed cartridge BB |
| Chain | KMC X9 1/2"X3/32" |
| Front Derailleur | Shimano Altus M370 |
| Rear Deralleur | Shimano Acera 9-spd |
| Derailleur Shifter | Shimano SL-M370 3x9-speed |
| Pedals | VP MTB nylon body |
| Wheels | |
| Tires | H-5120 27.5 x 2.00" |
| Wheels/Rims | Weinmann XM-25 Disc alloy double wall, Pivit alloy disc cassette 32h hubs |
| Freewheel/Cassette | Shimano HG-200 9-speed 11-34T |
| Braking System | |
| Brakes | Tektro Auriga Hydraulic |
| Brake Levers | Tektro Auriga |
| Other Components | |
| Grips | WTB Trail II |
| Handle Bar | Pivit alloy 25mm riser bar 31.8mm |
| Stem | Pivit melt forged stem |
| Seat | Haro Calavera saddle |
| Seat Post | Pivit alloy micro adjust 31.6mm |
| Seat Clamp | Pivit alloy 34.9mm quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 70° | 72.5° | 563mm (22.2") | 356mm (14") | 428mm (16.9") | 38.5mm (1.5") | 1048mm (41.3") | 771mm (30.4") | 595mm (23.4") | 374mm (14.7") | |||||
| 15.5 | 70° | 72.5° | 588mm (23.1") | 394mm (15.5") | 428mm (16.9") | 38.5mm (1.5") | 1074mm (42.3") | 784mm (30.9") | 600mm (23.6") | 399mm (15.7") | |||||
| 17.5 | 70° | 72.5° | 618mm (24.3") | 445mm (17.5") | 428mm (16.9") | 38.5mm (1.5") | 1104mm (43.5") | 813mm (32") | 600mm (23.6") | 428mm (16.9") | |||||
| 19.5 | 70° | 72.5° | 628mm (24.7") | 495mm (19.5") | 428mm (16.9") | 38.5mm (1.5") | 1115mm (43.9") | 840mm (33.1") | 605mm (23.8") | 438mm (17.2") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
