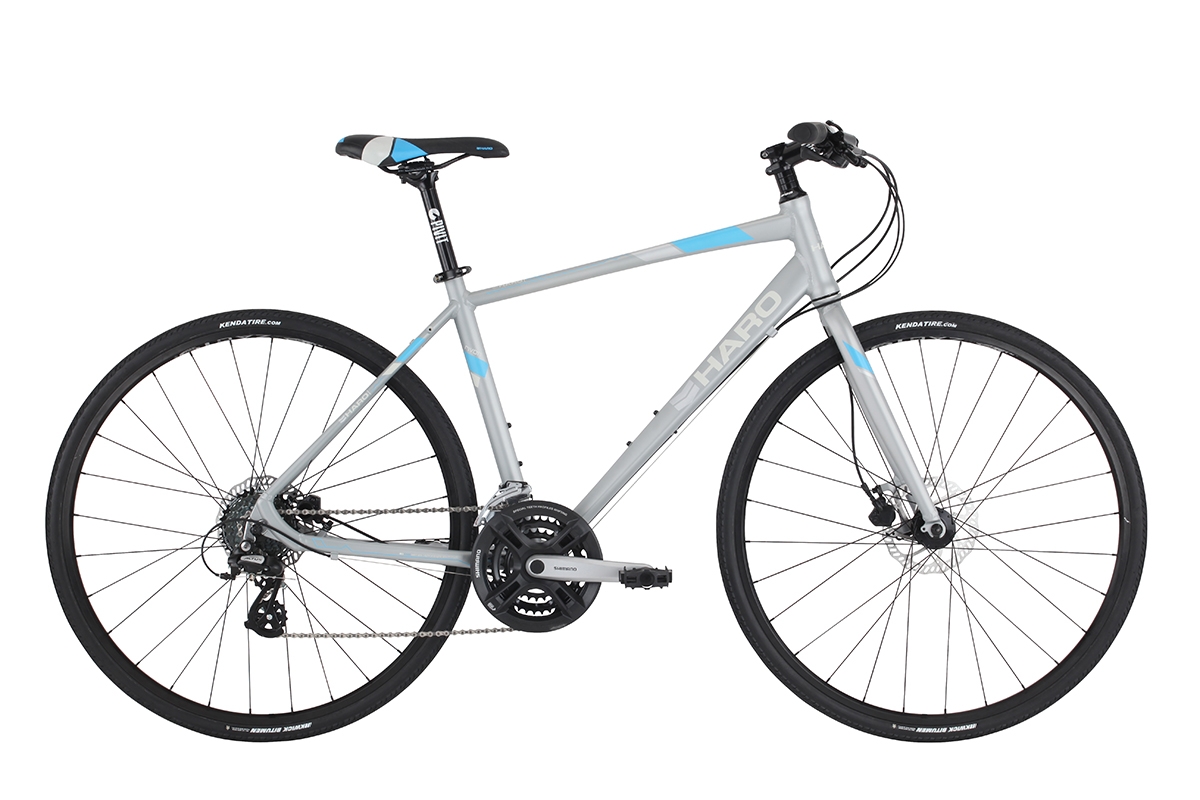

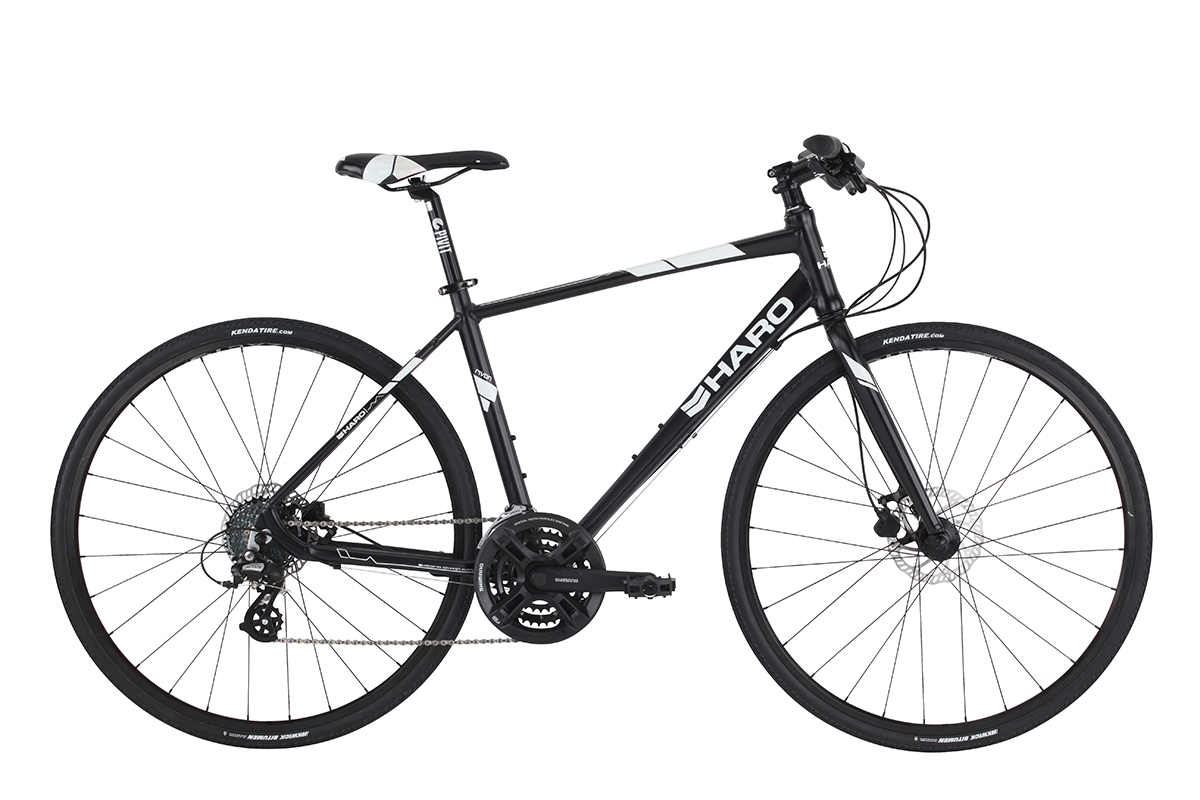

Fast. Efficient. Fun. The Rivon will have you looking for excuses to grab your helmet instead of your car keys, even for those longer errands.
FEATURES
- New Haro Ventus Sport Hybrid frame w/ Rider Optimized Geometry, mechanically-shaped alloy tubing & chainstay disc brake mount
- Alloy fork w/ chromoloy steerer tube & post-mount disc brake
- Shimano M171 crankset, 48/38/28 & sealed cartridge BB
- Shimano Altus 8-speed shifters & derailleurs
- Tektro Auriga hydraulic disc brakes
- Pivit disc brake hubs & Weinmann ZAC19 double wall rims
- Wide-ratio Shimano HG-200 12-32 8-speed cassette
- New Pivit alloy 9* sweep riser bar& forged stem
- Custom Haro Ventus saddle
- Kenda Bitumen 700 x 33c tires
| Frame Components | |
|---|---|
| Frame | Haro Ventus 6061 with Rider-Tuned Geometry |
| Fork | Haro Ventus Alloy w/post-mount disc mounts |
| Headset | FSA Orbit No. 10 |
| Drivetrain | |
| Cranks | Shimano M171 48/38/28t |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC X8 |
| Front Derailleur | Shimano Altus M191 |
| Rear Deralleur | Shimano Altus M310 |
| Derailleur Shifter | Shimano SL-M390 9-speed |
| Pedals | Wellgo nylon body |
| Wheels | |
| Tires | Kenda Kwick Bitumen 700 x 33c |
| Wheels/Rims | Weinmann ZAC19 alloy double wall rims, alloy disc hubs |
| Freewheel/Cassette | Shimano HG-200-9 8-speed 11-34T |
| Braking System | |
| Brakes | Tektro Auriga hydraulic disc, 160mm rotors |
| Brake Levers | Tektro Auriga |
| Other Components | |
| Grips | Haro Dual Sport |
| Handle Bar | Pivit alloy FlatTop bar 31.8mm 9 degree sweep |
| Stem | Pivit alloy stem, 31.8mm |
| Seat | Haro Dual Sport saddle |
| Seat Post | Pivit alloy micro adjust 27.2mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 70.5° | 73° | 555mm (21.9") | 394mm (15.5") | 445mm (17.5") | 60mm (2.4") | 1052mm (41.4") | 715mm (28.1") | |||||||
| 17.5 | 70.5° | 73° | 570mm (22.4") | 445mm (17.5") | 445mm (17.5") | 60mm (2.4") | 1069mm (42.1") | 746mm (29.4") | |||||||
| 19 | 70.5° | 73° | 580mm (22.8") | 483mm (19") | 445mm (17.5") | 60mm (2.4") | 1075mm (42.3") | 772mm (30.4") | |||||||
| 21 | 70.5° | 73° | 600mm (23.6") | 533mm (21") | 445mm (17.5") | 60mm (2.4") | 1085mm (42.7") | 810mm (31.9") | |||||||
| 23 | 70.5° | 73° | 620mm (24.4") | 584mm (23") | 445mm (17.5") | 60mm (2.4") | 1106mm (43.5") | 847mm (33.3") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
