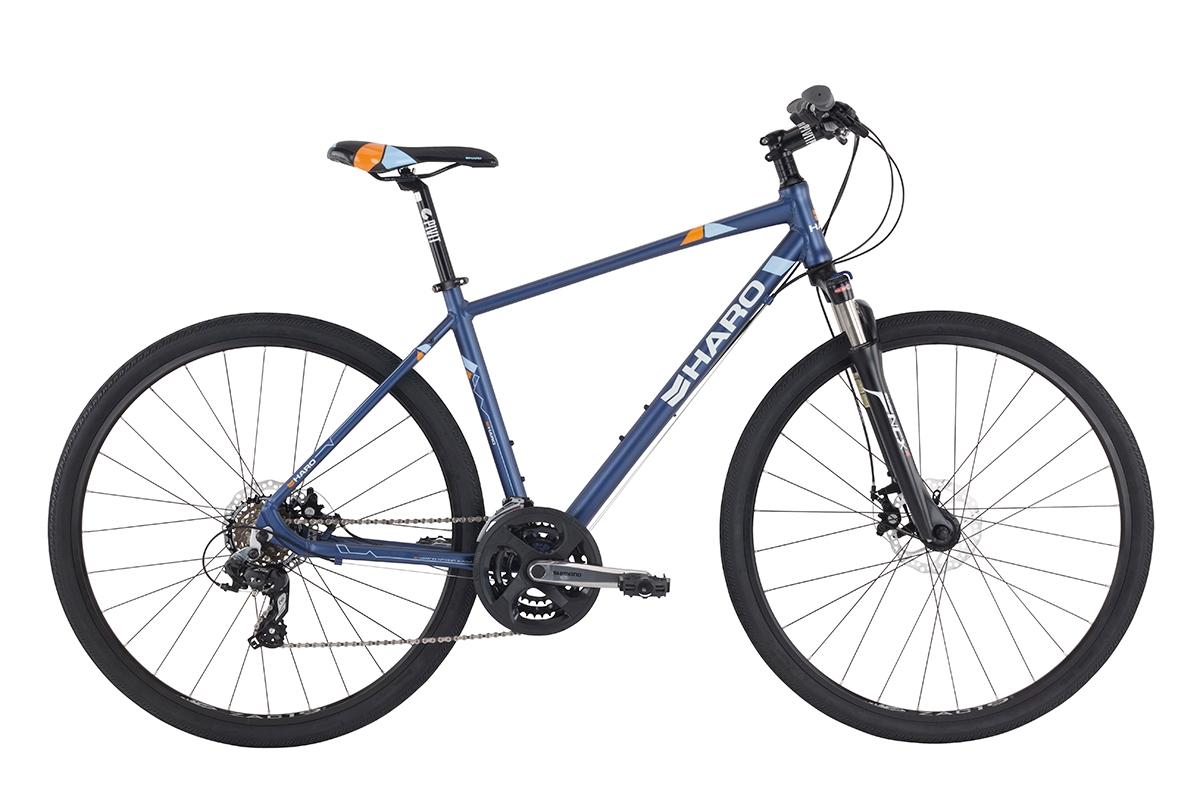

With an a light alloy frame featuring Rider-Optimized Geometry, and suspension from SR Suntour, the Bridgeport turns even the roughest pavement into a red carpet ride.
FEATURES
- All-New Haro Solum Dual Sport frame w/ Rider Optimized Geometry, mechanically-shaped alloy tubing & chainstay disc brake mount
- SR Suntour NEX HLO suspension fork w/ 63mm travel & hydraulic lockout
- Shimano M131 crankset, 48/38/28 & sealed cartridge BB
- Shimano Altus rear derailleur
- Shimano Tourney 7 speed EZ Fire shifters, front derailleur
- Pivit disc brake hubs and Weinmann ZAC19 double wall rims
- Wide-ratio Shimano HG-200 12-32 8-speed cassette
- New Pivit alloy 9* sweep riser bar& forged stem
- Custom Haro Solum saddle
- Tektro Aires mechanical disc brakes
| Frame Components | |
|---|---|
| Frame | Haro Solum 6061 with Rider-Tuned Geometry |
| Fork | SR Suntour NEX HLO 63mm travel w/ hydraulic Lockout |
| Headset | FSA Orbit No. 10 |
| Drivetrain | |
| Cranks | Shimano M131 48/38/28t |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC Z51 |
| Front Derailleur | Shimano Tourney TX-51 |
| Rear Deralleur | Shimano Altus M280 |
| Derailleur Shifter | Shimano EF-51 7-speed |
| Pedals | Wellgo nylon body |
| Wheels | |
| Tires | Chao Yang H-5113 700 x 38c |
| Wheels/Rims | Weinmann ZAC19 alloy double wall rims, alloy disc hubs |
| Freewheel/Cassette | Shimano HG-20 7-speed cassette 12-32T |
| Braking System | |
| Brakes | Tektro Aires mechanical disc, 160mm rotors |
| Brake Levers | Shimano EF-51 |
| Other Components | |
| Grips | Haro Dual Sport |
| Handle Bar | Pivit alloy 25mm riser bar 31.8mm 9 degree sweep |
| Stem | Pivit alloy stem, 31.8mm |
| Seat | Haro Dual Sport saddle |
| Seat Post | Pivit alloy micro adjust 27.2mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 70.5° | 73° | 575mm (22.6") | 394mm (15.5") | 445mm (17.5") | 60mm (2.4") | 1067mm (42") | 743mm (29.3") | |||||||
| 17.5 | 70.5° | 73° | 585mm (23") | 445mm (17.5") | 445mm (17.5") | 60mm (2.4") | 1076mm (42.4") | 768mm (30.2") | |||||||
| 19 | 70.5° | 73° | 600mm (23.6") | 483mm (19") | 445mm (17.5") | 60mm (2.4") | 1093mm (43") | 787mm (31") | |||||||
| 21 | 70.5° | 73° | 615mm (24.2") | 533mm (21") | 445mm (17.5") | 60mm (2.4") | 1108mm (43.6") | 815mm (32.1") | |||||||
| 23 | 70.5° | 73° | 625mm (24.6") | 584mm (23") | 445mm (17.5") | 60mm (2.4") | 1119mm (44.1") | 847mm (33.3") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
