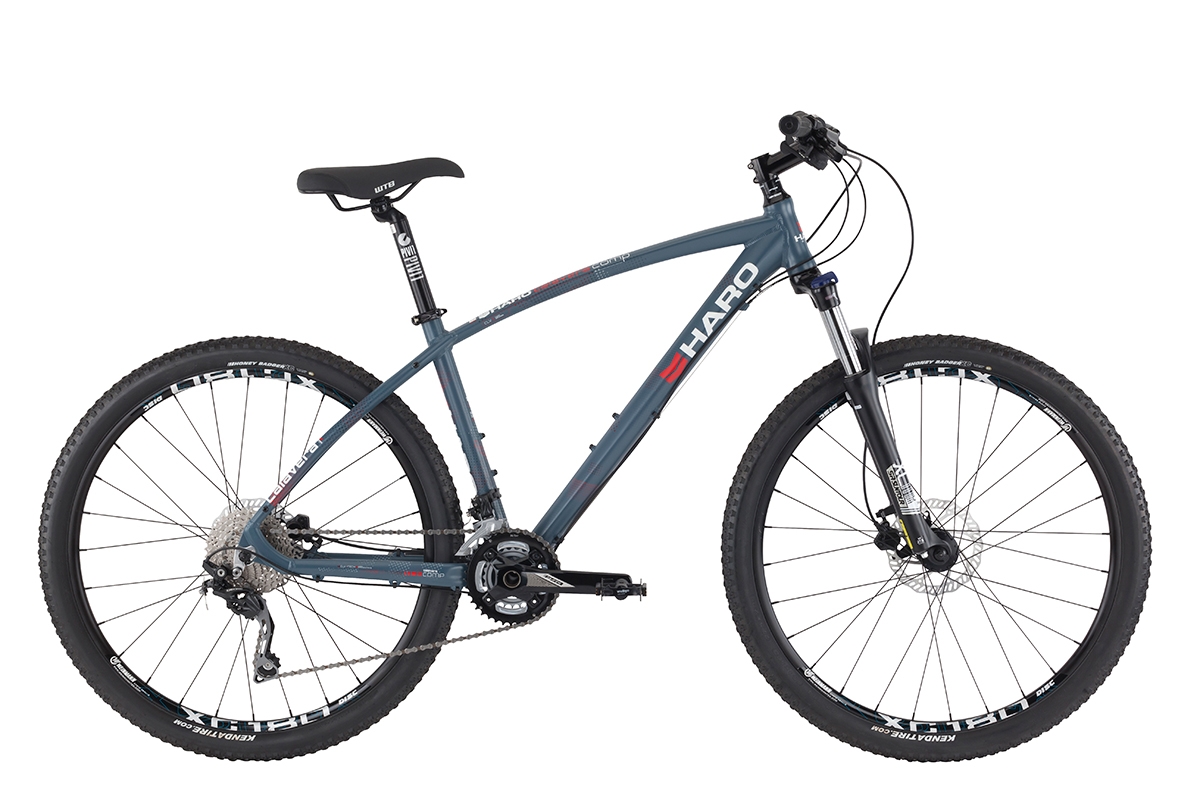

If you want to climb further and descend better than ever before, the 2016 Comp is ready for duty with a lightweight and efficient 2x10-speed Shimano Deore drivetrain, FSA crankset and Tektro hydraulic disc brakes.
FEATURES
- Revised Calavera 6000 Series alloy frame
- Suntour XCM 100mm travel fork w/ Hydraulic Lockout
- FSA Comet Compact 38/24t crankset
- FSA MegaExo sealed cartridge BB set
- Shimano 2x10 drive train
- Shimano Deore M618 front derailleur
- Shimano Deore rear derailleur
- Shimano CS-HG50-10 10-speed 11-36T cassette
- Shimano Deore SL-M610 shifters
- WTB Trail II grips & Speed Sport saddle
- Kenda Honey Badger XC 27.5*2.05 tires
- Weinmann XM-25 Disc alloy double wall rims w/ Pivit alloy disc cassette 28h hubs
| Frame Components | |
|---|---|
| Frame | Revised Haro Calavera 27.Five 6000 Series alloy |
| Fork | SR Suntour XCM 100mm travel w/ Hydraulic Lockout |
| Drivetrain | |
| Cranks | FSA Comet Compact MTB MegaExo 38/24T |
| Bottom Bracket | FSA sealed cartridge BB |
| Front Derailleur | Shimano Deore M618 |
| Rear Deralleur | Shimano Deore |
| Derailleur Shifter | Shimano Deore SL-M610 2x10-speed |
| Pedals | Wellgo nylon body w/ steel cage |
| Wheels | |
| Tires | Kenda Honey Badger XC 27.5*2.05 |
| Wheels/Rims | Weinmann XM-25 Disc alloy double wall / Pivit alloy disc cassette 28h |
| Freewheel/Cassette | Shimano CS-HG50-10 10-speed 11-36T |
| Braking System | |
| Brakes | Tektro Auriga Hydraulic |
| Brake Levers | Tektro Auriga |
| Other Components | |
| Grips | WTB Trail II |
| Handle Bar | Pivit alloy 25mm riser bar 31.8mm |
| Stem | Pivit melt forged stem |
| Seat | WTB Speed Sport |
| Seat Post | Pivit alloy micro adjust 31.6mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 70° | 72.5° | 563mm (22.2") | 356mm (14") | 428mm (16.9") | 38.5mm (1.5") | 1048mm (41.3") | 771mm (30.4") | 595mm (23.4") | 374mm (14.7") | |||||
| 15.5 | 70° | 72.5° | 588mm (23.1") | 394mm (15.5") | 428mm (16.9") | 38.5mm (1.5") | 1074mm (42.3") | 784mm (30.9") | 600mm (23.6") | 399mm (15.7") | |||||
| 17.5 | 70° | 72.5° | 618mm (24.3") | 445mm (17.5") | 428mm (16.9") | 38.5mm (1.5") | 1104mm (43.5") | 813mm (32") | 600mm (23.6") | 428mm (16.9") | |||||
| 19.5 | 70° | 72.5° | 628mm (24.7") | 495mm (19.5") | 428mm (16.9") | 38.5mm (1.5") | 1115mm (43.9") | 840mm (33.1") | 605mm (23.8") | 438mm (17.2") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
