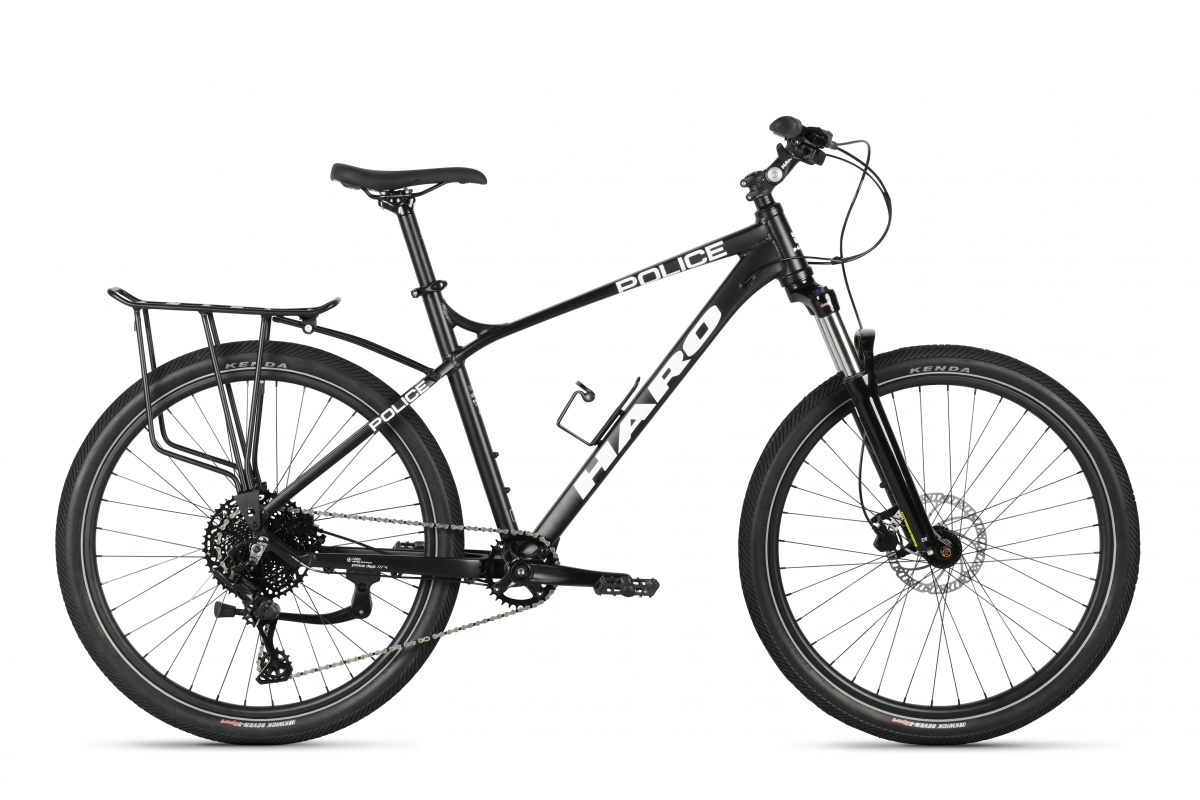

PD4
| Year | 2023 |
|---|---|
| MSRP | $1,799.99 * |
| Sizes | S, M, L, XL |
| Colors | Matte Black |
| Weight |
Our top-of-the-line PD4 gets another frame upgrade, this time in the form of 148mm boost spacing. This allows us to use a wider rear hub axle, which means we can increase the width of the hub flanges, resulting in a stronger, stiffer rear wheel. Add in the 12mm thru axles front and rear, sealed bearings throughout and the PD4 is our most bullet-proof (pardon the pun) model in the range.
FEATURES
- Haro PD4 frame made from X6 6000-series alloy frame w/ internal cable routing, tapered head tube and 148mm boost dropouts
- Suntour XCM34 fork w/ lockout, 100mm travel, and 12mm thru axle
- Alloy forged crankset w/ steel 32T chainring and plastic guard; 170mm size small, 175mm size medium - XLarge
- Microshift Advent 10-speed drivetrain, featuring the Advent X M6205AM rear derailleur w/proprietary ratchet-and-pawl clutch system
- Microshift 10-spd Advent SL- M9605 Trail Pro shifter
- 27.5" double-wall aluminum rims w/23mm inner diameter
- Novatech sealed 6-bolt hubs, 110mm x 12mm thru axle front; 148mm x 15mm rear
- Stainless steel spokes
- Kenda Kwick 27.5"x2.20" w/ reflective sidewalls
- Tektro hydraulic disc brakes w/ 180mm front rotor and 160mm rear rotor
- Extras: Rear rack, chainstay- mounted kick stand, police branding and alloy bottle cage
| Frame Components | |
|---|---|
| Frame | Haro PD 4 27.5" X6 6000 series alloy, w/internal housing routing, tapered head tube & 148mm Boost dropouts |
| Fork | Suntour XCM34 w/lockout, 100mm travel, and 12mm thru axle |
| Headset | 1-1/8" - 1-1/5" tapered threadless 50/62 OD headtube |
| Drivetrain | |
| Cranks | Alloy Forged 32T 170mm (size small), 175mm (sizes medium - Xlarge) |
| Bottom Bracket | Cartridge bearings |
| Chain | KMC X10 |
| Rear Deralleur | Microshift ADVENT M6205AM |
| Derailleur Shifter | Microshift 10-spd ADVENT SL-M9605 Trail Pro |
| Pedals | Nylon MTB 9/16" |
| Wheels | |
| Tires | Kenda Kwick 27.5"x2.20" w/ reflective tape |
| Wheels/Rims | J-23 27.5" 23mm inner width, aluminum double wall |
| Hubs | Novatech selaed; 6-bolt; 110mm 12mm thru axle front; 148mm Boost spacing 15mm thru axle rear |
| Freewheel/Cassette | Microshift CS-H104 11-48T |
| Braking System | |
| Brakes | Tektro HD-J285 hydraulic disc brakes; 180mm front rotor, 160mm rear rotor |
| Brake Levers | Tektro ML-520 2 finger |
| Other Components | |
| Grips | Velo 135mm ergonomic grips |
| Handle Bar | Haro alloy riser bar, 780mm width, 9-degrees backsweep, 20mm rise |
| Stem | Forged alloy 105mm reach, adjustable rise stem |
| Seat | WTB Volt Medium |
| Seat Post | 30.9mm alloy micro adjust |
| Seat Clamp | Alloy quick release |
| Extras | Triple strut, heavy duty rear rack, chainstay-mounted kickstand, police branding and alloy bottle cage |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 68° | 73° | 566.8mm (") | 406mm (") | 445mm (") | 45mm (") | 1122.9mm (") | 698mm (") | 410mm (") | 490mm (") | 42mm (") | ||||
| M | 68° | 73° | 585.9mm (") | 457mm (") | 445mm (") | 45mm (") | 1141.1mm (") | 719mm (") | 430mm (") | 490mm (") | 42mm (") | ||||
| L | 68° | 73° | 600.7mm (") | 508mm (") | 445mm (") | 45mm (") | 1158.6mm (") | 727mm (") | 443mm (") | 490mm (") | 42mm (") | ||||
| XL | 68° | 73° | 617.5mm (") | 559mm (") | 445mm (") | 45mm (") | 1168.5mm (") | 759mm (") | 450mm (") | 490mm (") | 42mm (") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
