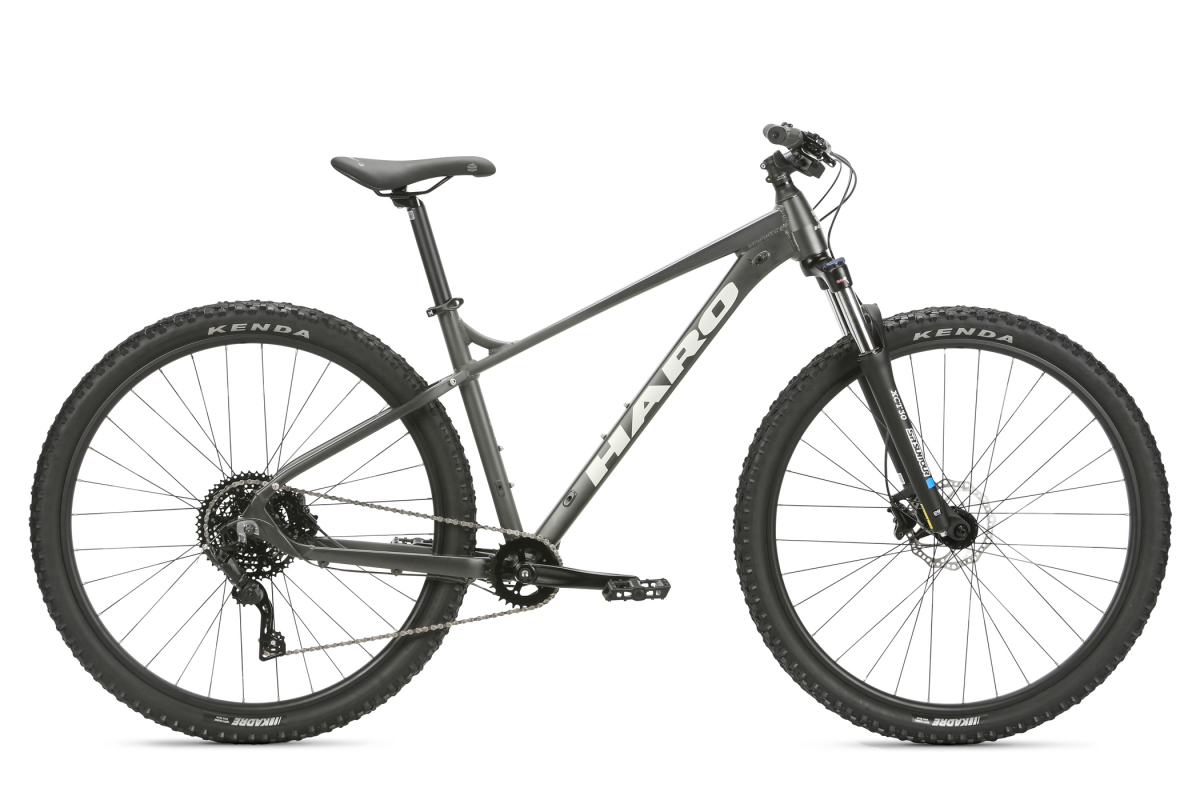

Double Peak 29 Sport

Year 2023
MSRP $799.99 *
Sizes S, M, L, XL
Colors Matte Charcoal
Weight

FEATURES

SPECIFICATIONS
Frame Components
Frame New 2021 Haro Double Peak 29" X6 Aluminum series | Tapered head tube | Internal housing routing | Chainstay disc brake mount | 73mm threaded BSA
Fork HL Vaxa 30S Fork | 29" 100mm Travel | hydraulic lockout
Headset 1-1/8"-1.5" Tapered Threadless for 50/62mm OD headtube | 10mm Aluminum top cover
Drivetrain
Cranks Samox Aluminum | 36-22T
Bottom Bracket Sealed cartridge
Chain KMC Z8.1 8-spd
Front Derailleur Shimano FD-M315-TS | 2x8 | Dual Pull
Rear Deralleur Shimano Altus M310
Derailleur Shifter Shimano SL-315 Rapidfire 2x8-spd
Pedals FPD Nylon body | Chromoly axles | Platform
Wheels
Tires H-5134 | 29x2.2"
Wheels/Rims MX-21 29"x27mm Aluminum double wall
Hubs Shimano TX-505 alloy | Center Lock Disc | cassette 32h
Freewheel/Cassette Shimano HG-200 8-spd cassette 12-32T
Spokes Stainless BED
Braking System
Brakes Shimano BR-MT200 hydraulic | 160mm Center Lock Rotors
Brake Levers Shimano BL-MT200
Other Components
Grips Haro MTB Kraton
Handle Bar Pivit aluminum 25mm riser bar 31.8mm
Stem Pivit forged stem | 31.8mm
Seat New Haro Double Peak
Seat Post Pivit Aluminum micro adjust | 31.6x350/400mm
Seat Clamp Pivit aluminum 34.9mm | quick release
Extras Internal housing routing
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
S 68° 72.5° 601mm (23.7") 406mm (16") 453mm (17.8") 64mm (2.5") 1128mm (44.4") 731mm (28.8") 621mm (24.4") 405mm (15.9") 517mm (20.4") 46mm (1.8") 60mm 700mm 170mm
M 68° 72.5° 625mm (24.6") 457mm (18") 453mm (17.8") 64mm (2.5") 1152mm (45.4") 731mm (28.8") 621mm (24.4") 430mm (16.9") 517mm (20.4") 46mm (1.8") 60mm 700mm 175mm
L 68° 72.5° 639mm (25.2") 508mm (20") 453mm (17.8") 64mm (2.5") 1167mm (45.9") 770mm (30.3") 630mm (25.8") 440mm (17.3") 517mm (20.4") 46mm (1.8") 60mm 700mm 175mm
XL 68° 72.5° 652mm (25.7") 559mm (22") 453mm (17.8") 64mm (2.5") 1181mm (46.5") 795mm (31.3") 640mm (25.2") 450mm (17.7") 517mm (20.4") 46mm (1.8") 60mm 700mm 175mm

RESOURCES

Owner's manual: Bike Manual PDF

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
