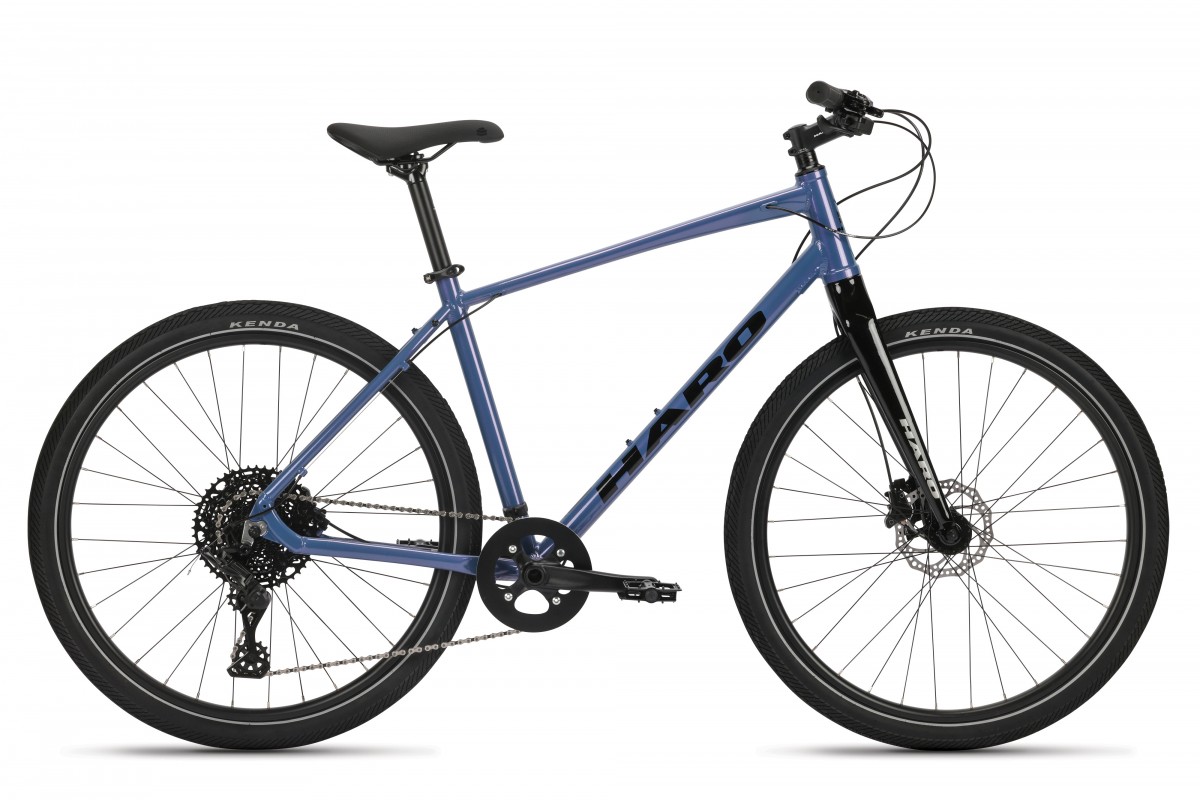

Beasley 27.5 DLX
| Year | 2023 |
|---|---|
| MSRP | $899.99 * |
| Sizes | |
| Colors | |
| Weight |
Urban adventure awaits. The Haro Beasley 27.5" DLX is everything you need for low-maintenance, smooth operation and easy days on the road. Start off with our aluminum frame and fork set for a light and nimble ride. Add a quality Microshift 1 x 10 drivetrain for simple, easy shifting and attention to detail like double-wall alloy rims, alloy bars, a quick-release seat clamp and hydraulic disc brakes with 160mm rotors front and rear. Four size options to fit everyone. Your go-to bike for going everywhere!
FEATURES
- Haro Beasley 27.5" X6 series aluminum, tapered head tube, quick-release seat clamp
- Internal FSA Threadless tapered headset
- Rigid 27.5" 6000 Series tapered aluminum fork w/disc brake mount
- Samox 2-pc Aluminum crankset w/ 40T chainring
- Microshift 10-speed rear derailleur
- Microshift 10-speed shifter
- Microshift 11-48T 10-speed cassette
- Aluminum double wall rims, 32 hole
- Quick release alloy hubs, cassette rear. 32h
- Kenda Kwick Seven.5 27.5x2.0" tires
- Radius hydraulic brake set w/ 160mm rotors, front & rear
| Frame Components | |
|---|---|
| Frame | Haro Beasley 27.5" | X6 Aluminum series | Chaintstay Post disc mount |
| Fork | Rigid 27.5" 6061-T6 Aluminum Aluminum Tapered steer tube | IS Disc Mount | for integrated headset |
| Headset | Alloy sealed bearing | 1-1/8"-1.5" Tapered threadless Internal | Aluminum Top cone |
| Drivetrain | |
| Cranks | Samox Aluminum 2-pc | 40T chainring Narrow-Wide Teeth | Aluminum chainguard | 170 / 175mm |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC X10-1 NP/BLK | MTB 10-speed | Missing Link |
| Front Derailleur | N/A |
| Rear Deralleur | Microshift RD-M6205GM | 10-speed |
| Derailleur Shifter | New Shimano Deore SL-M4100-R 10-spd |
| Pedals | FPD Aluminum Platform | Chromoly axles | SBB Ball-Bearings |
| Wheels | |
| Tires | Kenda Kwick Seven.5 27.5x2.0" | Reflective stripes |
| Wheels/Rims | MX-21 27mm Aluminum double wall rims |
| Hubs | Shimano RM35 | cassette | 32h | Center-Lock discs |
| Freewheel/Cassette | Microshift CS-H104 | 10-speed | 11-48T |
| Spokes | Stainless BED |
| Braking System | |
| Brakes | Radius hydraulic brake set w/ 160mm rotors, front & rear |
| Brake Levers | Radius, alloy |
| Other Components | |
| Grips | Haro MTB |
| Handle Bar | Pivit Aluminum 25mm rise | 31.8mm x 700 / 720mm |
| Stem | Pivit Lightweight | 3D Forged | 31.8mm |
| Seat | Haro Flightline |
| Seat Post | Pivit Aluminum | 2 Bolts | micro adjust 30.9x350/400mm |
| Seat Clamp | Pivit alloy 34.9mm | quick release |
| Extras | Chain-Drop Protector |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 15 | 71.5° | 73° | 570mm (22.4") | 381mm (15") | 428mm (16.9") | 65mm (2.6") | 1034mm (40.7") | 703mm (27.7") | 566mm (22.3") | 396mm (15.6") | 424mm (16.7") | 45mm (1.8") | 70 or 80mm | 680mm | 170mm |
| M / 17 | 72° | 73° | 600mm (23.6") | 432mm (17") | 428mm (16.9") | 65mm (2.6") | 1060mm (41.7") | 736mm (29") | 592mm (23.3") | 418mm (16.5") | 424mm (16.7") | 45mm (1.8") | 70 or 80mm | 680mm | 175mm |
| L / 19 | 72.5° | 73° | 610mm (24") | 483mm (19") | 428mm (16.9") | 65mm (2.6") | 1065mm (41.9") | 775mm (30.5") | 618mm (24.3") | 421mm (16.6") | 424mm (16.7") | 45mm (1.8") | 80mm | 700mm | 175mm |
| XL / 21 | 72.5° | 73° | 625mm (24.6") | 533mm (21") | 428mm (16.9") | 65mm (2.6") | 1080mm (42.5") | 813mm (32") | 642mm (25.3") | 428mm (16.9") | 424mm (16.7") | 45mm (1.8") | 80mm | 700mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
