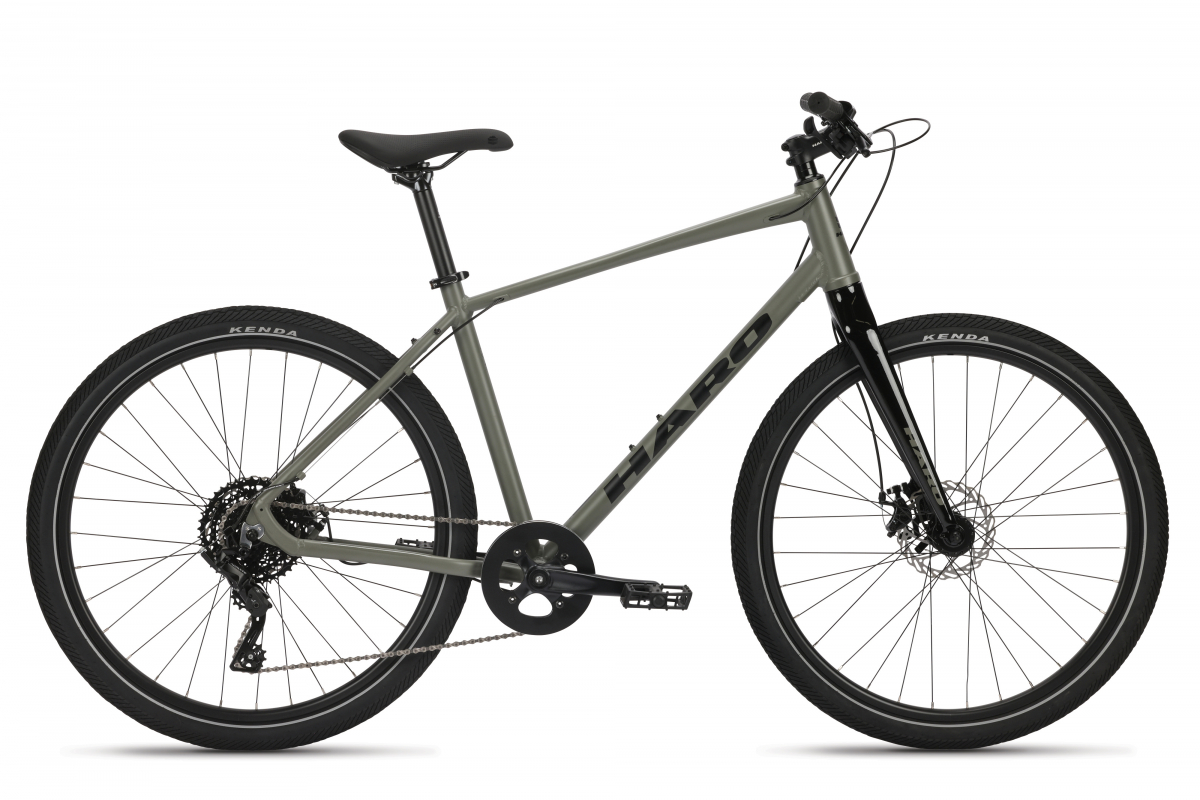

Beasley 27.5
| Year | 2023 |
|---|---|
| MSRP | $799.99 * |
| Sizes | S, M, L, XL |
| Colors | Matte Charcoal, Matte Jade |
| Weight |
Rolling steady. The Beasley 27.5" is a clean, comfortable machine, ready to take on the day. Built on a lightweight aluminum frame and fork, with a 1 X 8 drive-train for simple, efficient shifting. Kenda Kwick 27.5 X 2.0 tires take on the road, with mechanical disc brakes front and rear to slow your roll when you reach your destination.
FEATURES
- Haro Beasley 27.5" X6 series aluminum, tapered head tube, quick-release seat clamp
- Internal threadless tapered headset
- Rigid 27.5" 6000 Series tapered aluminum fork w/disc brake mount
- 40T chainring w/double alloy chainguard
- RD-M5185M, 1 x 8 Microshift rear derailleur
- SL-M7180-R, Xpress Microshift shifters for 1 x 8, right side activation
- CS-H083 12-42, 8-speed Microshift, 12-42T
- Aluminum double wall rims
- Pivit aluminum cassette 32h hubs
- Kenda Kwick Seven.5 27.5x2.0" tires
- Jak-7 Mechanical disc brakeset w/ 160mm Rotors, front & rear
| Frame Components | |
|---|---|
| Frame | Haro Beasley 27.5" | X6 Aluminum series | New Chainstay design | Post disc mount |
| Fork | Rigid 27.5" 6000 Series tapered aluminum fork w/disc brake mount |
| Headset | 1-1/8"-1.5" Tapered threadless Internal | Aluminum Top cone |
| Drivetrain | |
| Cranks | 40T steel chainring Double aluminum chainguards | 15" = 170mm , 17"/19"/21" = 175MM |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC X8 HG | 8-spd | 1/2"*3/32" |
| Front Derailleur | N/A |
| Rear Deralleur | Microshift RD-M5185M, 1 x 8 rear derailleur |
| Derailleur Shifter | SL-M7180-R, Xpress Microshift shifters for 1 x 8, right side activation |
| Pedals | Aluminum Platform | Chromoly axles | SBB Ball-Bearings |
| Wheels | |
| Tires | Kenda Kwick Seven.5 | 27.5x2.0" |
| Wheels/Rims | MX-21 27mm aluminum double wall rims |
| Hubs | Aluminum cassette 32h |
| Freewheel/Cassette | Microshift CS-H083 | 8-spd | 12-42T |
| Spokes | Stainless BED |
| Braking System | |
| Brakes | Jak-7 Mechanical disc brakes | 160mm Rotors (front & rear) |
| Brake Levers | VL-321D Aluminum | 2-Finger |
| Other Components | |
| Grips | Haro MTB |
| Handle Bar | Aluminum 25mm riser bar 31.8mm |
| Stem | Aluminum | 3D Forged | 31.8mm |
| Seat | Haro Flightline |
| Seat Post | Micro adjust 30.9x350mm |
| Seat Clamp | Alloy 34.9mm | quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 15 | 71.5° | 73° | 570mm (22.4") | 381mm (15") | 445mm (17.5") | 65mm (2.6") | 1051mm (41.4") | 703mm (27.7") | 566mm (22.3") | 396mm (15.6") | 424mm (16.7") | 45mm (1.8") | 70 or 80mm | 680mm | 170mm |
| M / 17 | 72° | 73° | 600mm (23.6") | 432mm (17") | 445mm (17.5") | 65mm (2.6") | 1077mm (42.4") | 736mm (29") | 592mm (23.3") | 418mm (16.5") | 424mm (16.7") | 45mm (1.8") | 70 or 80mm | 680mm | 175mm |
| L / 19 | 72.5° | 73° | 610mm (24") | 483mm (19") | 445mm (17.5") | 65mm (2.6") | 1087mm (42.9") | 775mm (30.5") | 616mm (24.3") | 421mm (16.6") | 424mm (16.7") | 45mm (1.8") | 80mm | 700mm | 175mm |
| XL / 21 | 72.5° | 73° | 625mm (24.6") | 533mm (21") | 445mm (17.5") | 65mm (2.6") | 1103mm (43.4") | 813mm (32") | 640mm (25.2") | 428mm (16.9") | 424mm (16.7") | 45mm (1.8") | 80mm | 700mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
