Aeras ST
| Year | 2023 |
|---|---|
| MSRP | $619.99 * |
| Sizes | XS, S |
| Colors | Matte Metallic Blue, Mate Sage |
| Weight |

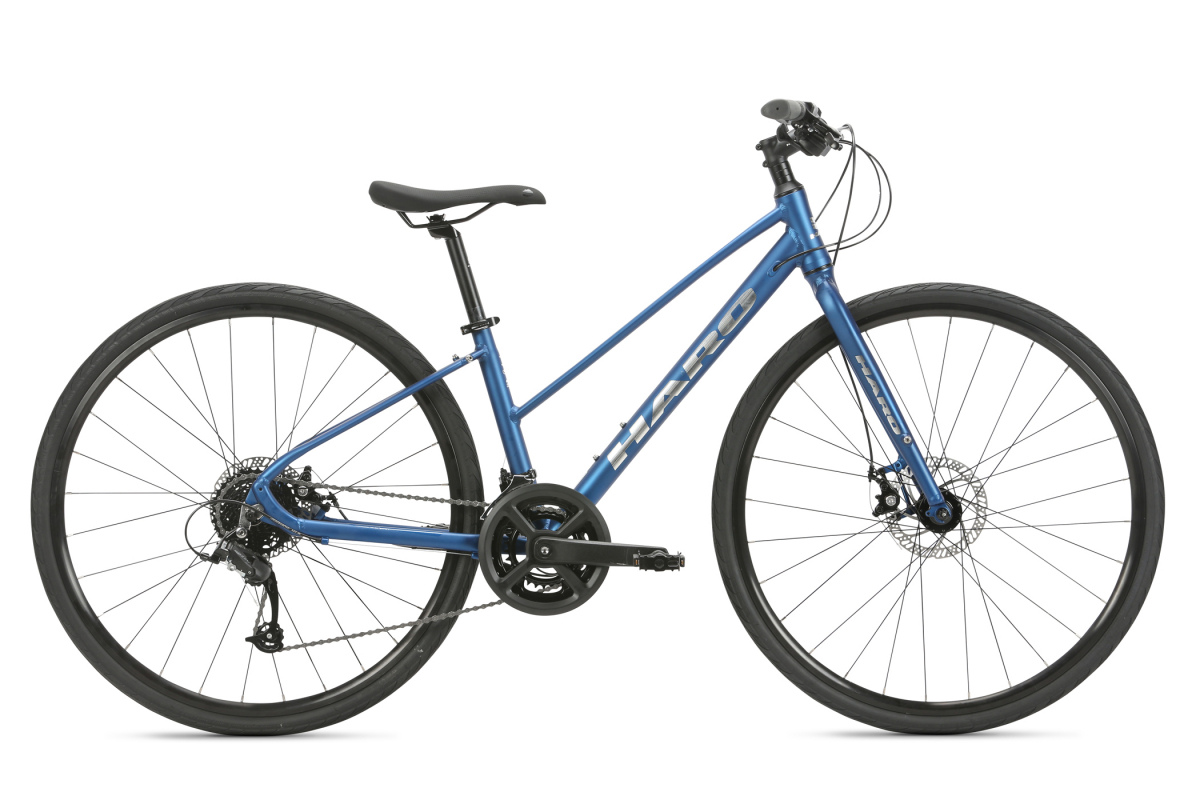

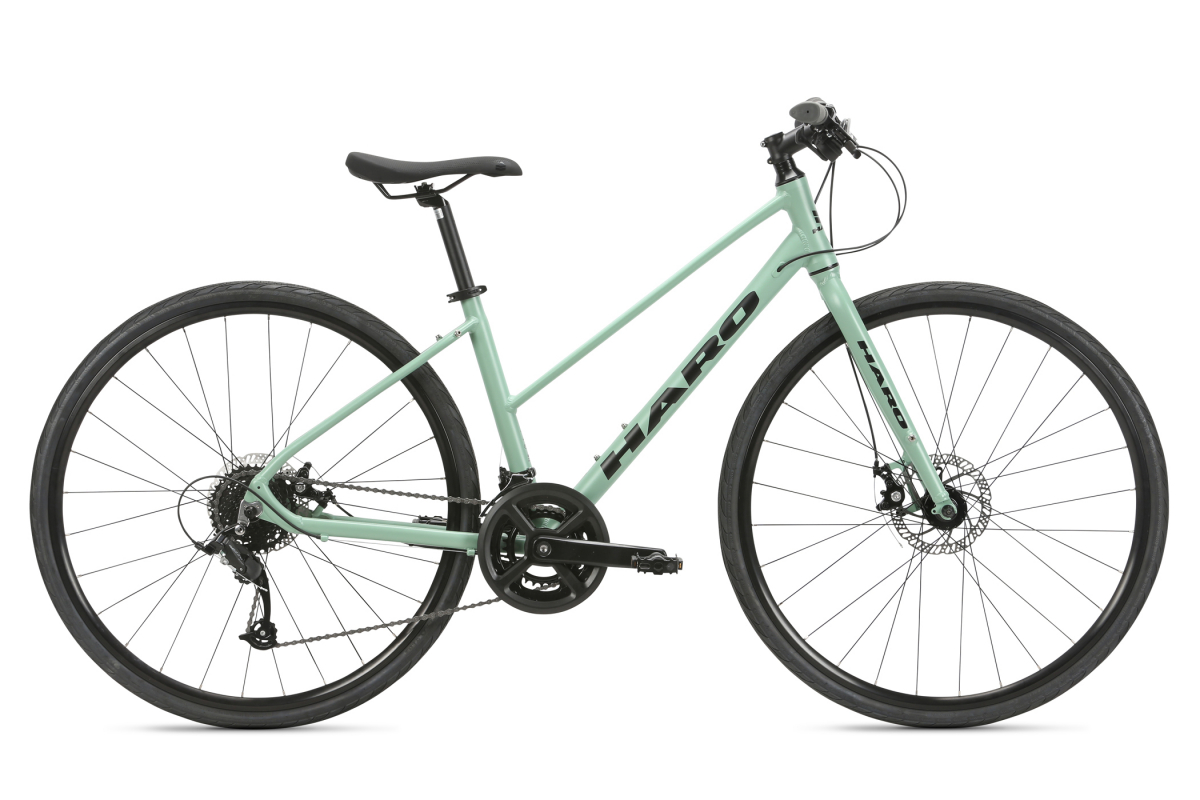

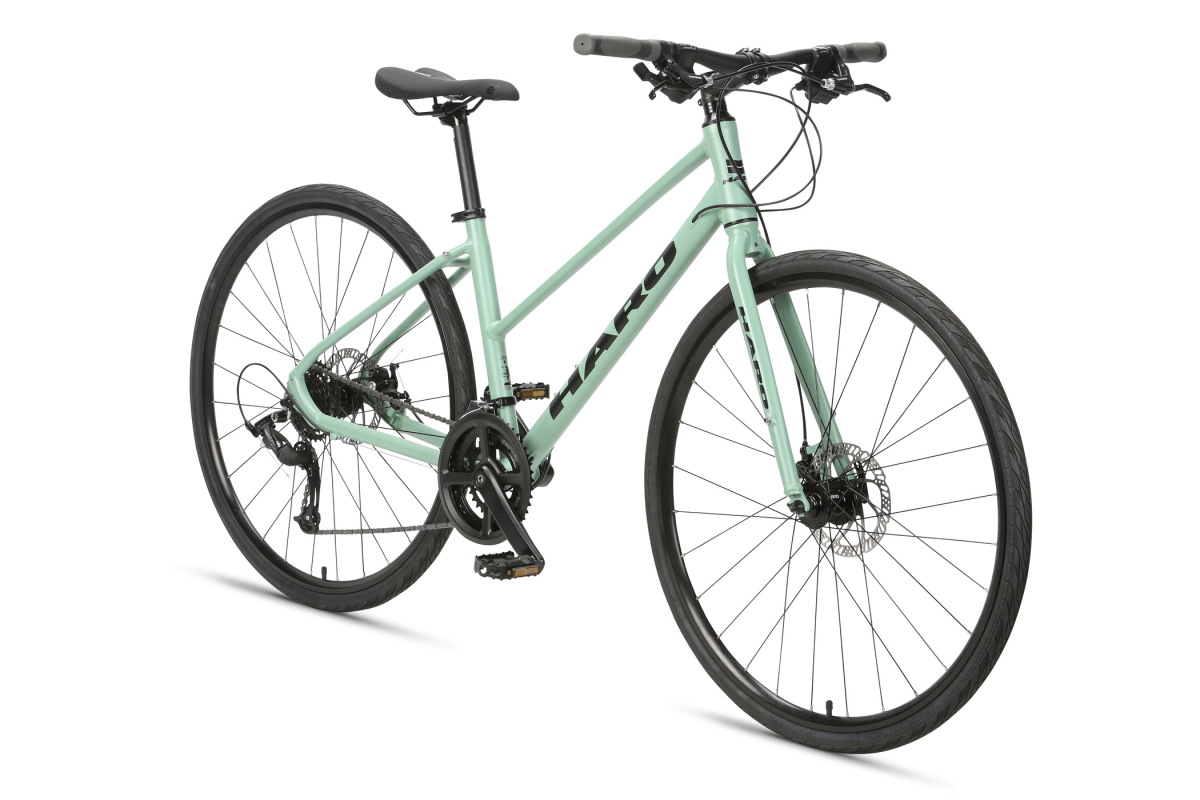

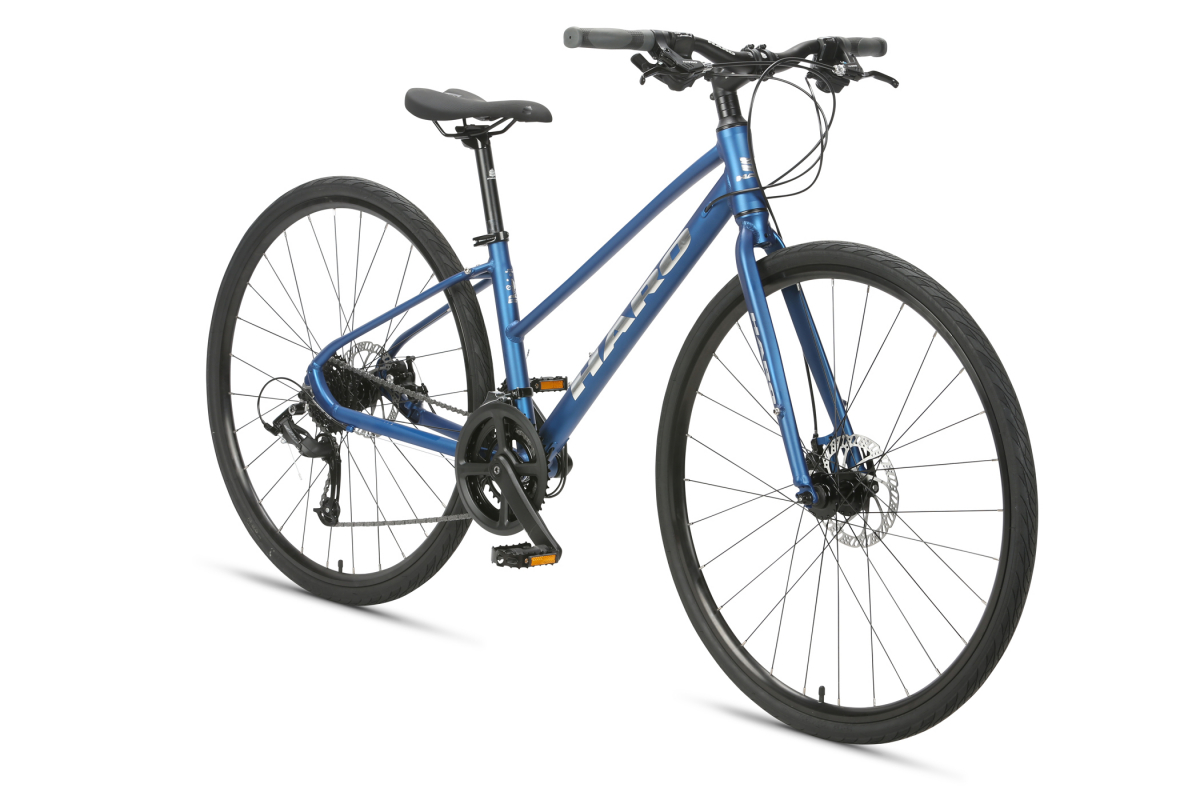

Fitness has never been so fun. The Haro Aeras ST (step through) is lightweight, fast and as easy to ride as it is to load onto the bike rack. Built on a lightweight aluminum frame with a step through design to accommodate everyone. Outfitted with 700C wheels and tires, the Aeras ST features a 2 X 8 Microshift gearing setup for smooth, efficient pedaling, anywhere you want to go.
FEATURES
- 6061-T6 aluminum frame with rider-tuned geometry and step through top tube design
- Microshift 2 x 8-speed gearing
- Haro 700C double wall alloy rims with quick release axles, front and rear
- Kenda Kwick 700 x 38c tires
- Haro Dual-sport tuned padded seat with micro-adjust post and quick adjust clamp
- Tecktro Mechanical Disc Brakes
| Frame Components | |
|---|---|
| Frame | 6061-T6 aluminum | Rider-tuned geometry | 68mm threaded BSA bottom bracket shell | Post mount |
| Fork | Haro Ventus | Classic steel | flat mount disc | 100mm quick-release spacing |
| Headset | Haro 1-1/8" threadless Internal | For 50mm OD headtube |
| Frame Shock | N/A |
| Drivetrain | |
| Cranks | Prowheel TB-CY01 | 46/30T | 8-speed | 170 / 175mm |
| Bottom Bracket | Feimin FP-902W | Threaded BSA 68mm BB shell | 123mm spindle | Sealed cartridge |
| Chain | KMC Z8.1 | 8-speed |
| Front Derailleur | Microshift FD-T202 | Top swing | 34.9mm band diameter |
| Rear Deralleur | Microshift RD-M36L |
| Derailleur Shifter | Microshift TS39-2 & FD-T202 | 2 x 8-speed |
| Pedals | VP | 990S | Nylon body with steel cages | Chromoly axles |
| Wheels | |
| Tires | Kenda Kwick Bitumen | 700 x 38c |
| Wheels/Rims | Haro 700c | 19mm inner width | 28h | Alloy double wall | Disc-brake specifc |
| Hubs | KT-68 alloy 28H | Cassette rear hub | Front & rear quick release |
| Freewheel/Cassette | Mid-range | CS-M5008 8-Speed 11-34T | ED Black |
| Spokes | Stainless Steel ED Black 14G | 12MM brass nipple |
| Braking System | |
| Brakes | Tektro MD-M280 | Mechanical disc | IS 6-bolt rotors | F: 180mm, R: 160mm |
| Brake Levers | Alloy 3-finger |
| Other Components | |
| Grips | Haro | Dual-density durometer | Active tuned |
| Handle Bar | Haro Alloy | 25mm rise | 31.8mm | 9° sweep | 620mm / 640mm |
| Stem | Haro Alloy | 7° rise | 70mm / 90mm / 100mm |
| Seat | Haro | Dual-sport tuned padding | Weather-resistant cover |
| Seat Post | Haro Alloy | Micro-adjust | 27.2mm x 350mm | Zero-offset | 2-bolt design |
| Seat Clamp | Haro Aluminum 31.8mm Quick release |
| Extras | Rack and fender mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS ST | 69.5° | 74° | 530mm (20.9") | 356mm (14") | 445mm (17.5") | 60mm (2.4") | 1043mm (41") | 611mm (24") | 533mm (21") | 377mm (14.8") | 45mm (1.8") | 75mm | 620mm | 170mm | |
| S ST | 70° | 74° | 541mm (21.3") | 406mm (16") | 445mm (17.5") | 60mm (2.4") | 1050mm (41.3") | 620mm (24.4") | 554mm (21.8") | 382mm (15") | 45mm (1.8") | 95mm | 620mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
