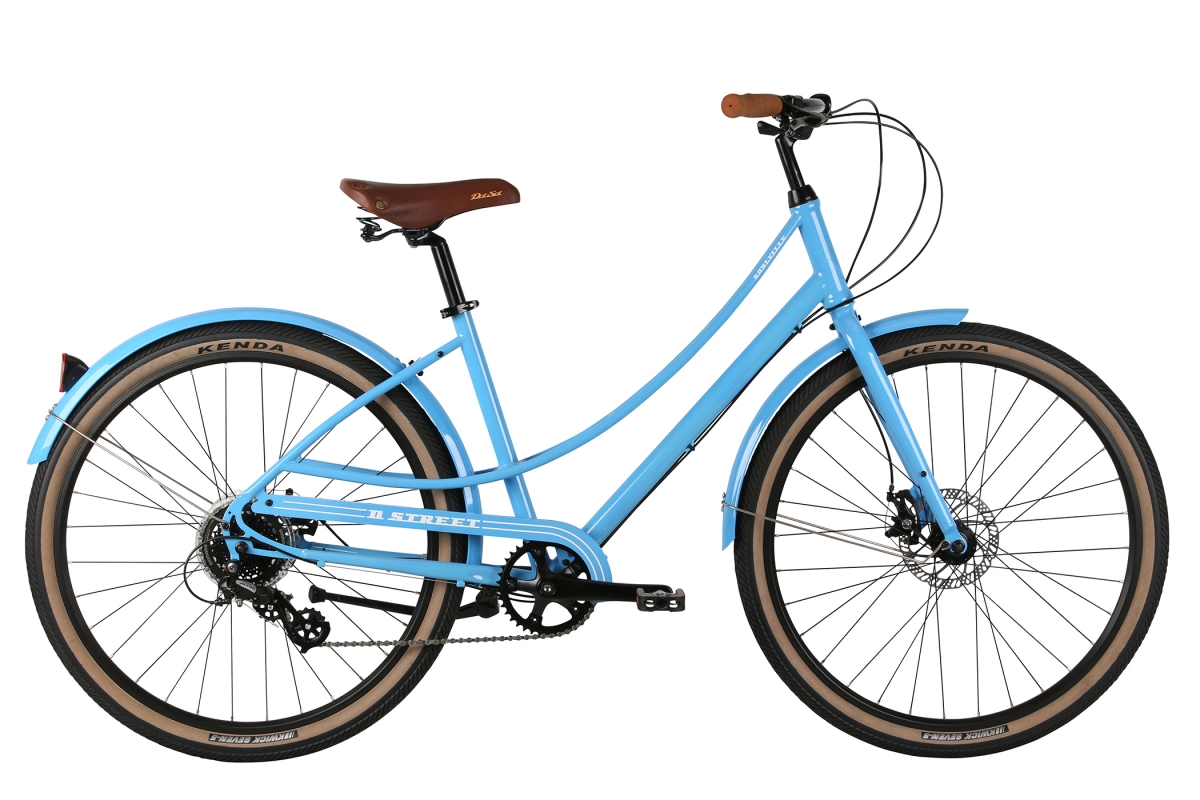

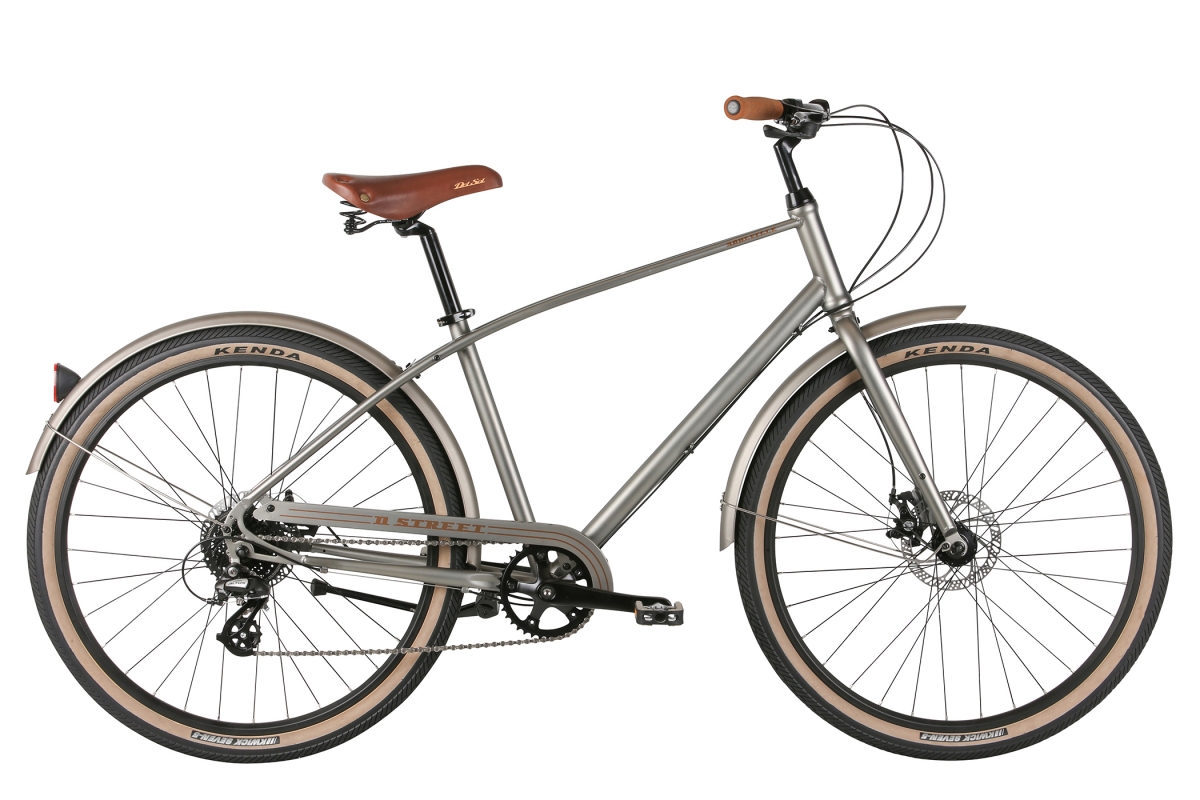

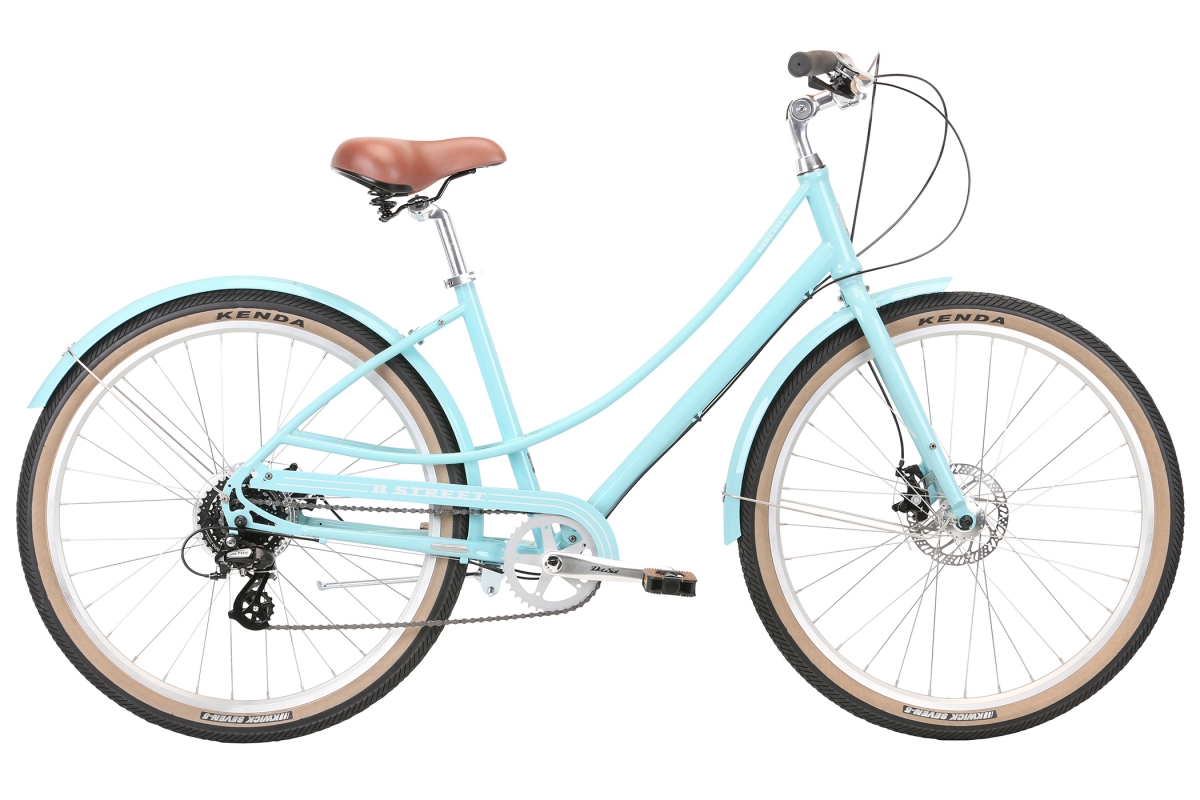

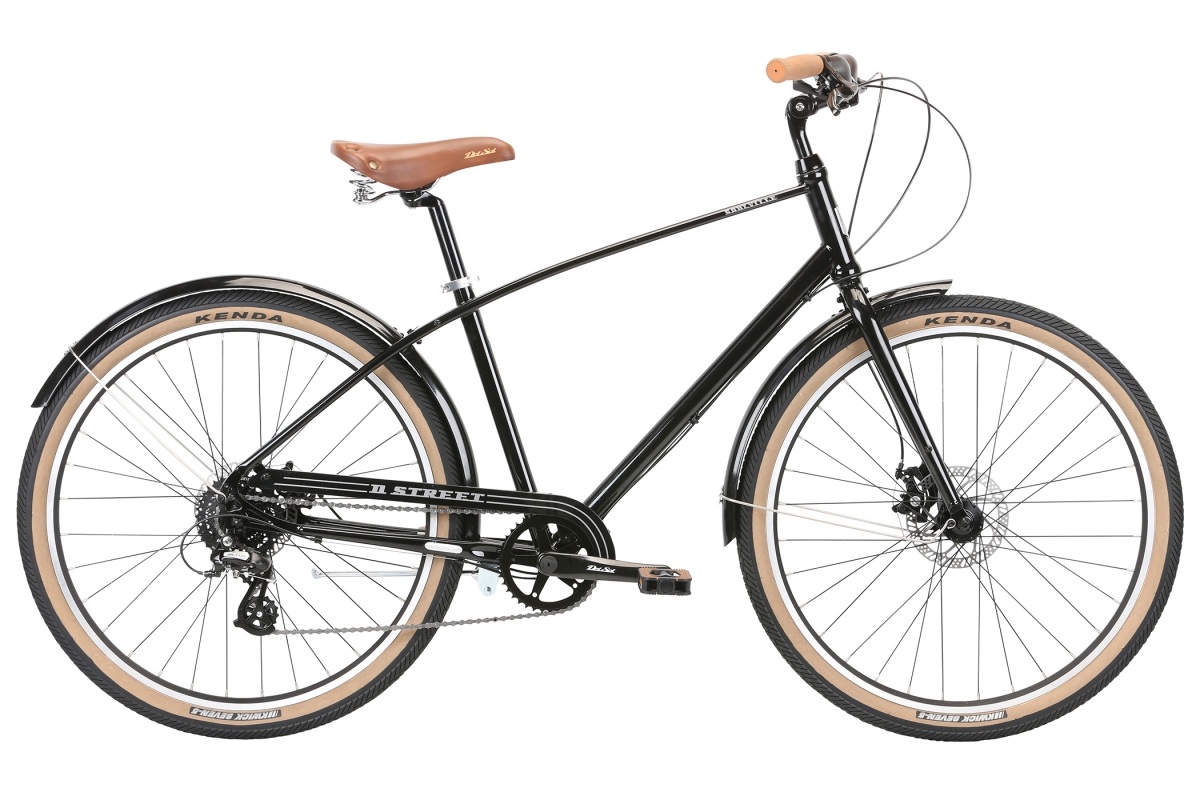

Where does your bike take you? Sometimes it's about the destination, other times it's about how you get there. The Del Sol Soulville with it's classic twin top tube steel frame was designed with both in mind. A 650b wheel-set together with a Shimano Tourney 7-speed drive-train, mechanical disc brakes, a classic springer road saddle and color matched fenders will push all the style, performance and cycling relaxation you can handle.
FEATURES
- D-Street Cafe twin top tube steel urban frameset
- Forged Alloy 3 Piece, bolt-on 38t chainring
- Shimano Altus rear derailleur with Rapidfire Plus shifter and an 8-speed Shimano cassette
- Comfort alloy handlebar with 180mm length quill stem
- Springer comfort saddle
- Double-wall Alloy rims with stainless steel spokes
- Tektro Aires Mechanical Disc brakes
- Full coverage fenders
| Frame Components | |
|---|---|
| Frame | D-Street Cafe twin top tube design, Hi-Ten steel |
| Fork | Rigid Hi-Ten, 1-1/8" threaded steerer tube |
| Headset | 1 1/8" Internal, threaded |
| Drivetrain | |
| Cranks | Forged alloy arms, bolt-on steel 38T chain ring |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC Z8.3 |
| Rear Deralleur | Shimano Altus RD-M310 |
| Derailleur Shifter | Shimano Acera Rapidfire Plus 8-speed |
| Pedals | Alloy body, dual compound comfort cage |
| Wheels | |
| Tires | 27.5 x 1.75" |
| Wheels/Rims | Double-wall alloy |
| Hubs | Alloy disc, 32H |
| Freewheel/Cassette | Shimano CS-HG31 11-34T 8-speed |
| Spokes | Stainless 14g |
| Braking System | |
| Brakes | Tektro Aires mechanical disc |
| Brake Levers | Tektro, alloy 4-finger design with reach adjustment |
| Other Components | |
| Grips | Cork comfort |
| Handle Bar | Alloy, 27 degree sweeping comfort |
| Stem | Alloy, 180mm length quill |
| Seat | Springer road with rivets |
| Seat Post | Alloy micro-adjust 28.6 X 350mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Extras | Fenders, chainguard, alloy kickstand |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 15.75 | 70.5° | 72° | 571.5mm (22.5") | 400.1mm (15.8") | 467.9mm (18.4") | 1084.8mm (42.7") | 482.6mm (19") | ||||||||
| M / 17.75 | 70.5° | 72° | 584.2mm (23") | 450.1mm (17.7") | 467.9mm (18.4") | 1100.8mm (43.3") | 514.4mm (20.3") | ||||||||
| S / 15.75 | 70.5° | 72° | 571.5mm (22.5") | 400.1mm (15.8") | 467.9mm (18.4") | 1084.8mm (42.7") | 730.3mm (28.8") | ||||||||
| M / 17.5 | 70.5° | 72° | 584.2mm (23") | 444.5mm (17.5") | 467.9mm (18.4") | 1100.8mm (43.3") | 774.7mm (30.5") | ||||||||
| L / 19 | 70.5° | 71.5° | 609.6mm (24") | 482.6mm (19") | 467.9mm (18.4") | 1117.6mm (44") | 812.8mm (32") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
