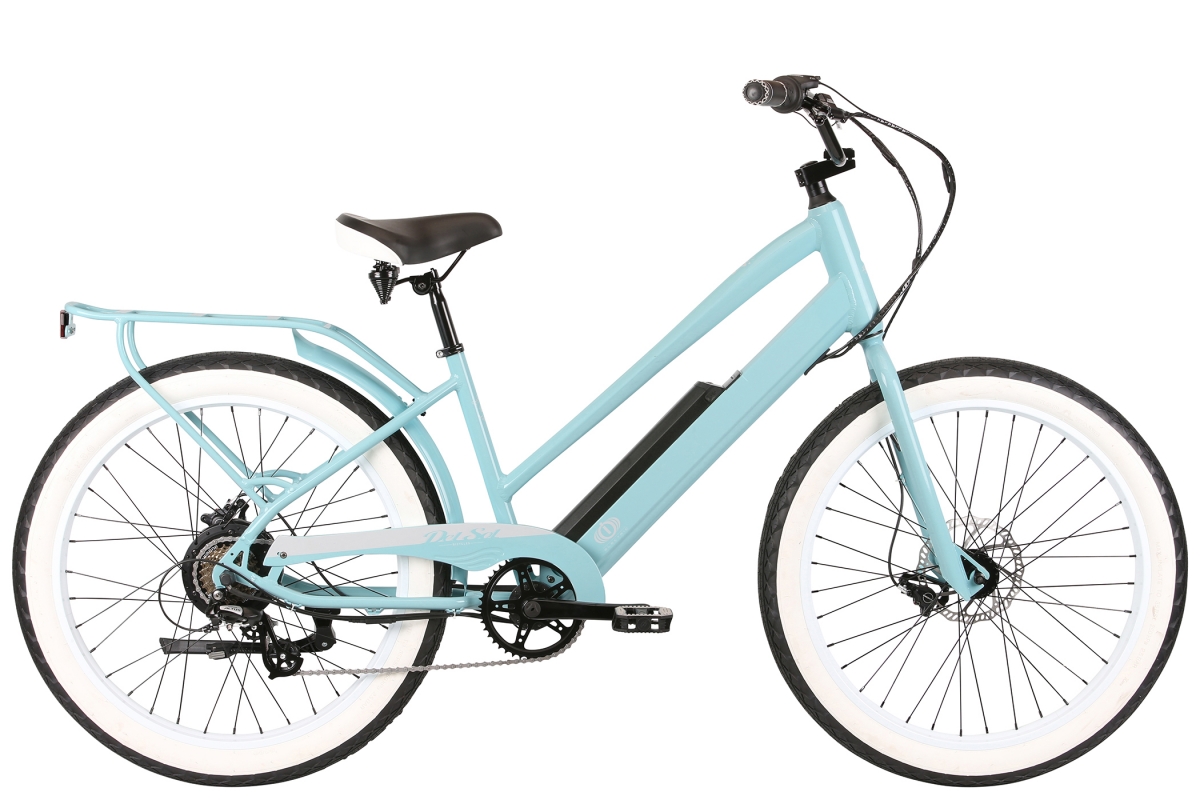

Railer i/O's lightweight SuperCruise Plus 6061 alloy frame with semi-integrated battery downtube and weld-on cargo rack, cushy Plus-size 3" tires and hydraulic disc brakes team up with a powerful 36V 350W rear hub pedal/throttle-assist powerplant. The system utilizes Samsung battery technology with 5 levels of assist and delivers an estimated 30+ miles of range depending on mode. Full recharge time is just 4 hours.
FEATURES
- Lightweight alloy SuperCruise Plus i/O frame featuring longer, more laid-back geometry, and clearance for the biggest rubber for the smoothest cruise
- Moto-inspired Railer handlebar for the ultimate statement
- 350W Bafang hub motor
- Semi-integrated Samsung battery
- Integrated rear cargo rack
- Shimano Altus 7-speed drivetrain with Revo twist shifter
- 3-piece alloy crankset
- Railer Plus 26" x 3" tires on super-wide 50mm alloy rims
- Rear moto-style shorty fender keeps you clean
- Del Sol elastomer-sprung cruiser saddle
| Frame Components | |
|---|---|
| Frame | 6061 Alloy SuperCruise Plus for Hub Motor, semi-intergrated downtube battery, internal cables |
| Fork | Railer hi-ten plus cruiser, 1-1/8" threaded steerer |
| Headset | 1 1/8" Integrated Threadless |
| Drivetrain | |
| Cranks | Forged Alloy 3 Piece, 42t |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC Z7 |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Altus M310 |
| Derailleur Shifter | Shimano Revo, 7-speed |
| Drive Unit | Class-2 Bafang rear hub motor - 36v/350w, E-Throttle control, LCD display |
| Battery | 36V 14ah, 3500mAh, semi-integrated |
| Pedals | Nylon Cruiser w/Kraton |
| Wheels | |
| Tires | Cruiser Plus 26 X 3.0" |
| Wheels/Rims | Railer Plus 50mm rims |
| Hubs | Front steel disc 36 H, rear 36V/350W hub motor disc 36 H |
| Freewheel/Cassette | Shimano TZ FW, 14-28T, 7-speed |
| Spokes | Stainless 13g |
| Braking System | |
| Brakes | Tektro Auriga E-SUB Hydraulic Disc |
| Brake Levers | Tektro Auriga |
| Other Components | |
| Grips | Del Sol foam with stitched cover |
| Handle Bar | Railer hi-ten, 805mm wide, 148mm rise |
| Stem | Alloy BMX type, 50mm extension, threadless |
| Seat | Del Sol cruiser elastomer springer |
| Seat Post | Hi-Ten 27.2mm X 350mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Extras | Kickstand, integrated rack, rear fender, battery charger and cables |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mens | 70° | 72.1° | 667mm (26.3") | 431.8mm (17") | 759.5mm (29.9") | ||||||||||
| ST | 70° | 72.1° | 667mm (26.3") | 431.8mm (17") | 609.6mm (24") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
