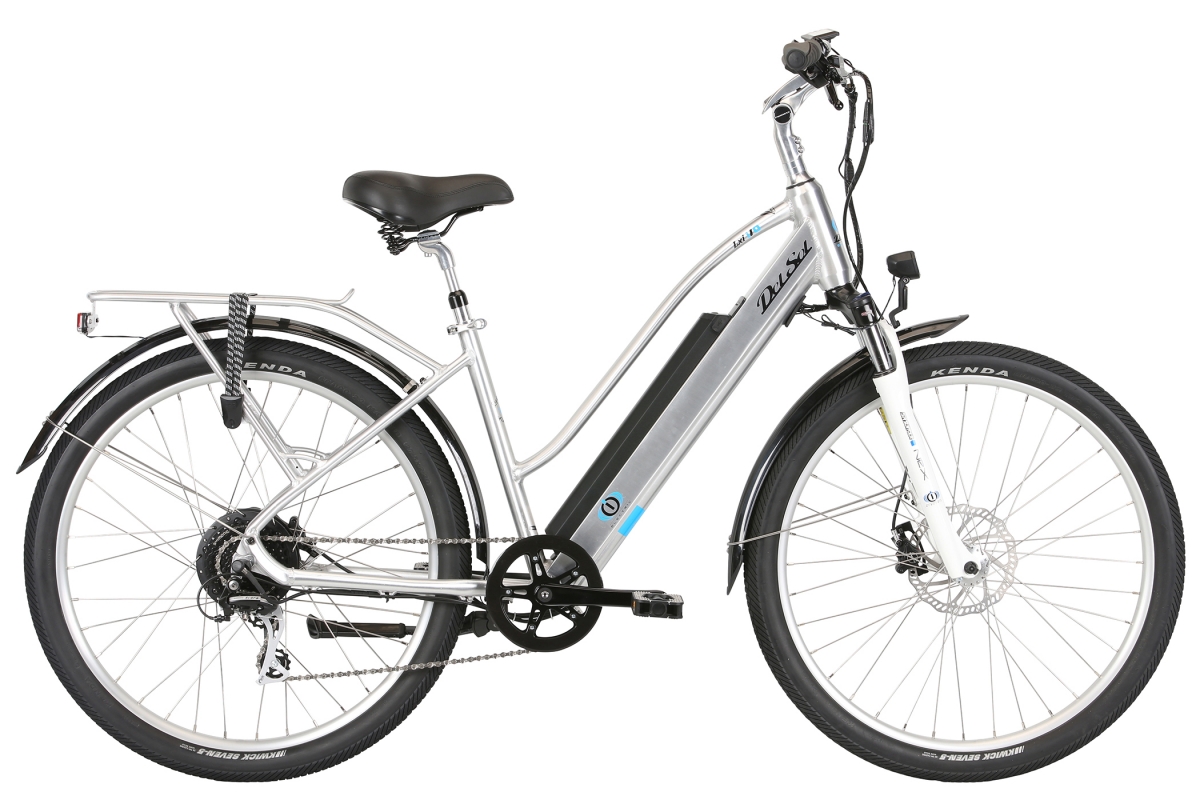

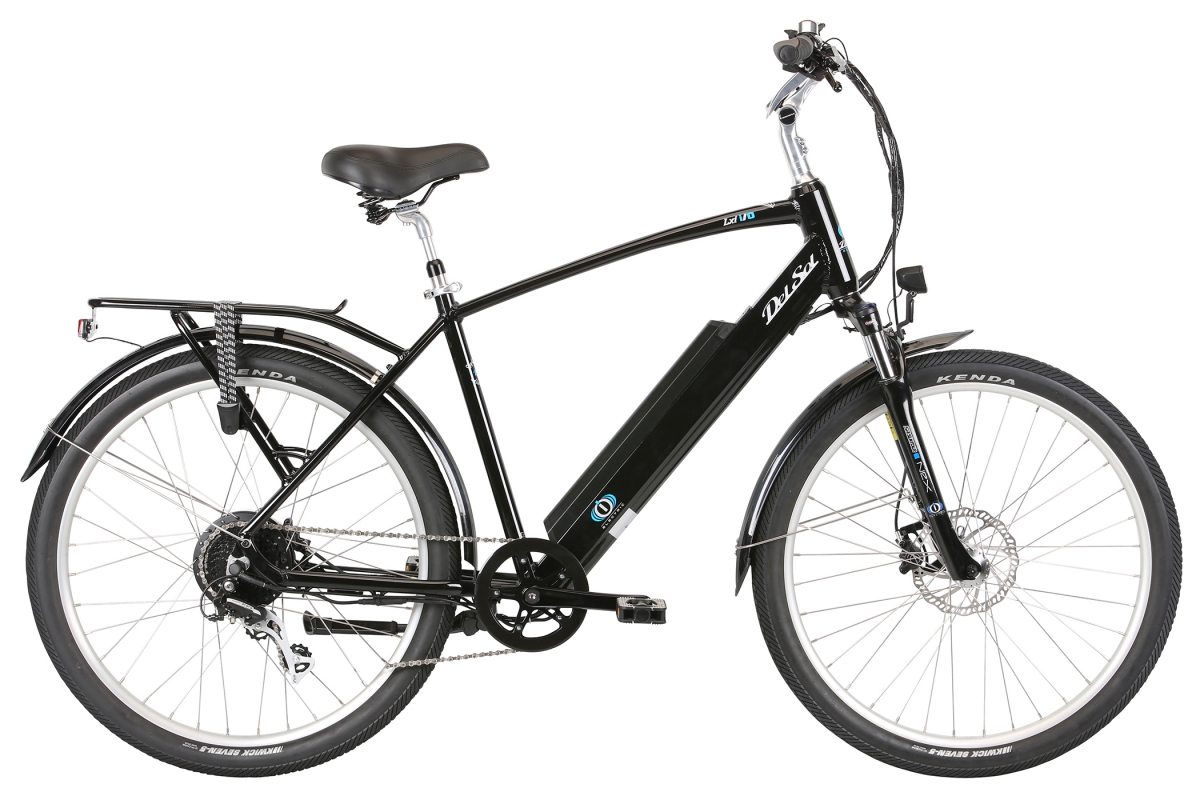

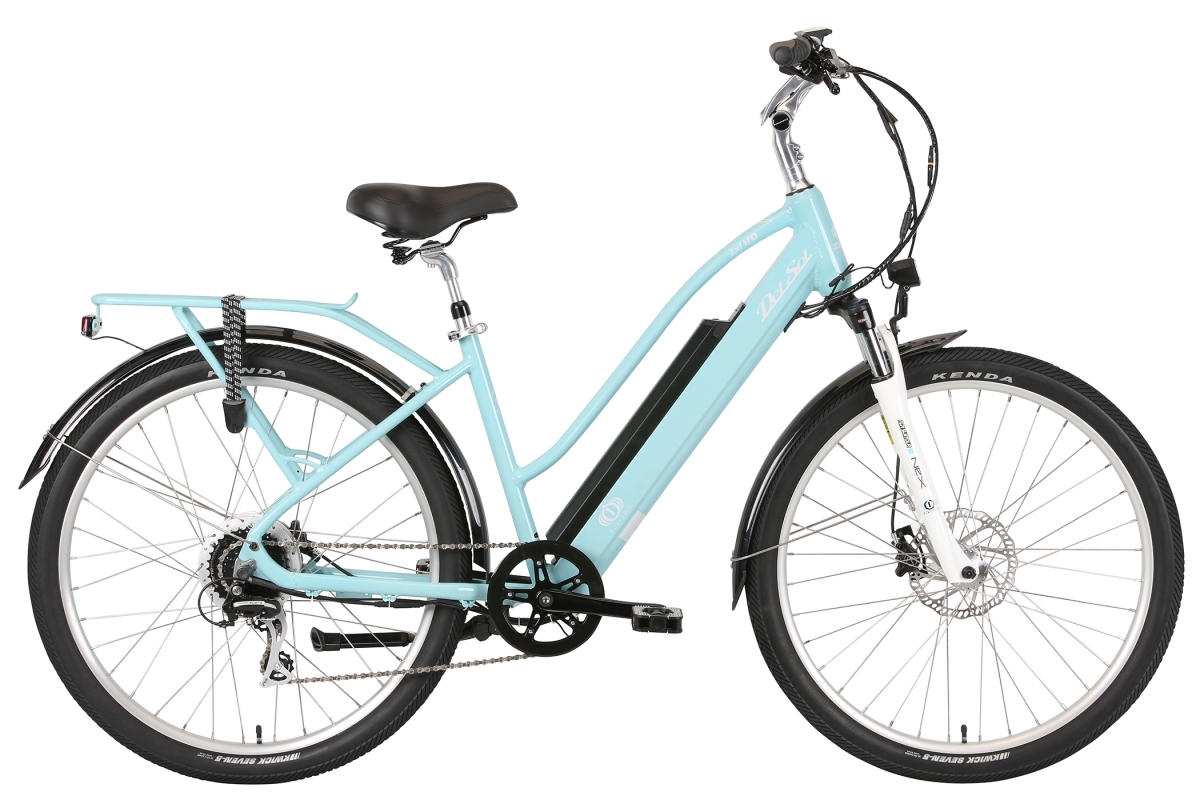

LXI i/O 6061 alloy comfort frame with semi-integrated battery downtube. Easy rolling 27.5" tires, hydraulic disc brakes, a suspension seat post and an adjustable angle stem team up with a powerful 36V 350W rear hub pedal/throttle-assist power-plant. The system utilizes Samsung battery technology with 5 levels of assist and delivers an estimated 30+ miles of range depending on mode. Full recharge time is just 4 hours.
FEATURES
- Throttle-assist feature allows motor engagement without pedaling
- Lightweight Del Sol 6061 aluminum frame with Del Sol's proven upright comfort geometry
- SR Suntour NEX DS-HLO 63mm travel fork with lock-out
- 350W Bafang hub motor
- Semi-integrated Samsung battery
- Shimano 8-speed Acera rear derailleur with Acera Rapidfire Plus shifter
- Adjustable-angle alloy stem and lightweight alloy riser bars mean you find the perfect fit, no matter the rider
- Custom Del Sol comfort plus saddle with suspension seatpost
- Super smooth Kenda Kwick Seven 27.5" x 2.2" all-purpose tires
- Powerful Tektro hydraulic disc brakes ensure all-condition stopping power
| Frame Components | |
|---|---|
| Frame | LXI i/O Comfort 6061 Alloy, semi-integrated downtube battery, internal cables |
| Fork | SR Suntour NEX DS-HLO 63mm travel fork with lock-out |
| Headset | 1 1/8" Integrated Threadless |
| Drivetrain | |
| Cranks | Forged alloy 3-piece, dual guard, 42t |
| Bottom Bracket | Bafang, sealed bearing with sensor |
| Chain | KMC Z8.3 |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Acera M360 |
| Derailleur Shifter | Shimano Acera 8-speed Rapidfire Plus |
| Drive Unit | Class-2 Bafang rear hub motor - 350w, E-Throttle control, LCD display |
| Battery | 36V/14.5Ah, 2900mAh, semi-integrated |
| Pedals | Comfort with kraton inserts |
| Wheels | |
| Tires | Kenda Kwick Seven.5, 27.5 X 2.2" |
| Wheels/Rims | Double-Wall alloy |
| Hubs | Front alloy Disc 36 H, rear 36V/350W hub motor disc 36 H |
| Freewheel/Cassette | Shimano HG-31 11-32T, 8-speed |
| Spokes | Stainless 13g |
| Braking System | |
| Brakes | Tektro Auriga Hydraulic Disc, 180mm front rotor, 160mm rear rotor |
| Brake Levers | Tektro Auriga, 4-finger alloy blade with ball end |
| Other Components | |
| Grips | Del Sol comfort dual density |
| Handle Bar | Alloy comfort, 40mm rise, 580mm width |
| Stem | Alloy threadless, tool-free adjustable angle, 90-160 degree, 110mm extension |
| Seat | Del Sol comfort springer |
| Seat Post | Alloy suspension, 40mm travel, 27.2mm X 300mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Extras | Kickstand, alloy rack, full-coverage fenders, bell, F&R light system, battery charger and cables |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 14 ST | 70° | 73° | 584.2mm (23") | 360.7mm (14.2") | 464.8mm (18.3") | 1117.6mm (44") | 558.8mm (22") | ||||||||
| M / 17 ST | 70° | 73° | 584.2mm (23") | 431.8mm (17") | 464.8mm (18.3") | 1117.6mm (44") | 558.8mm (22") | ||||||||
| S / 14 | 70° | 73° | 584.2mm (23") | 355.6mm (14") | 464.8mm (18.3") | 1117.6mm (44") | 673.1mm (26.5") | ||||||||
| M / 17 | 70° | 73° | 584.2mm (23") | 431.8mm (17") | 464.8mm (18.3") | 1117.6mm (44") | 736.6mm (29") | ||||||||
| L / 20 | 70° | 73° | 629.9mm (24.8") | 508mm (20") | 464.8mm (18.3") | 1158.2mm (45.6") | 812.8mm (32") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
