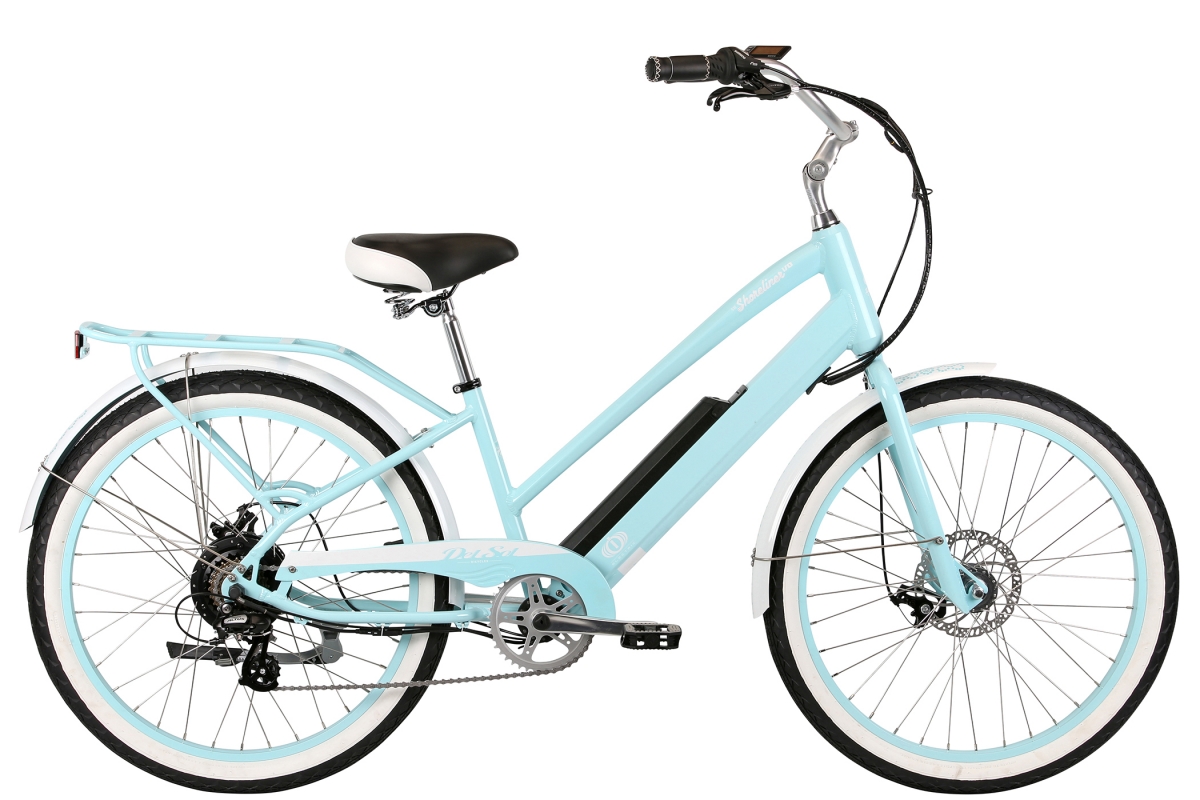

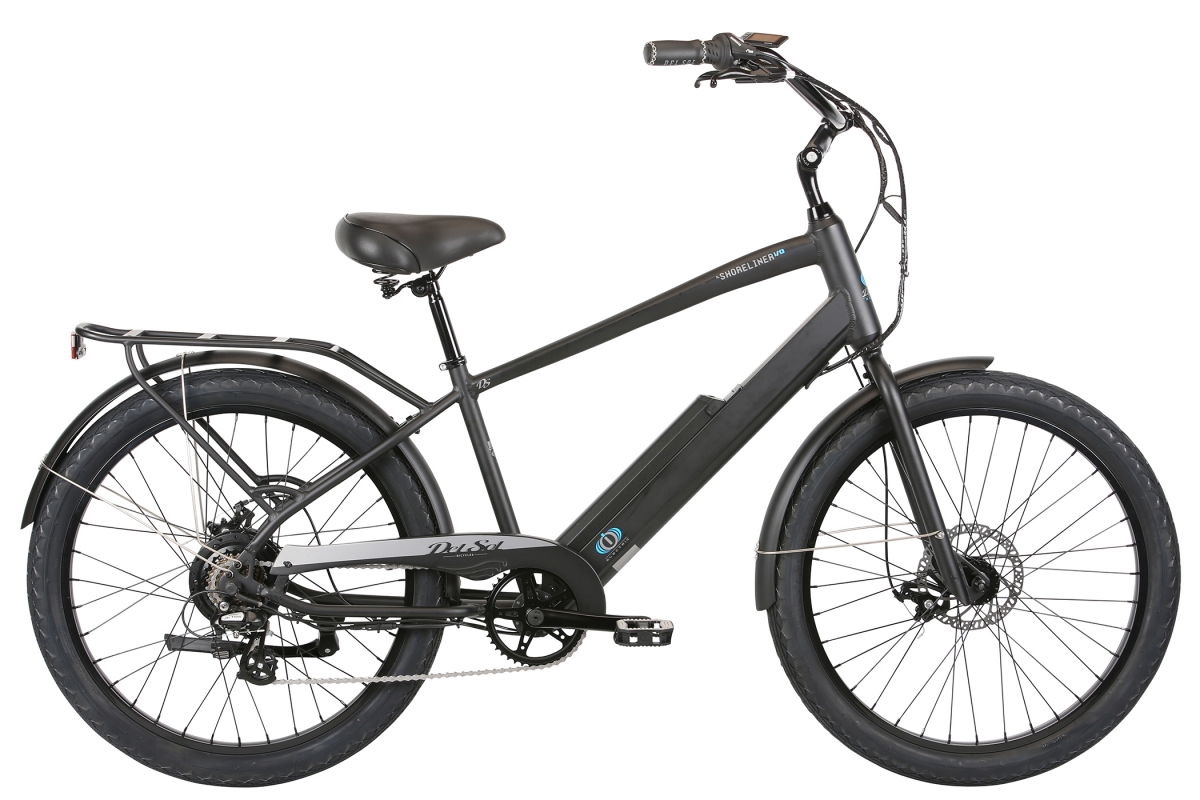

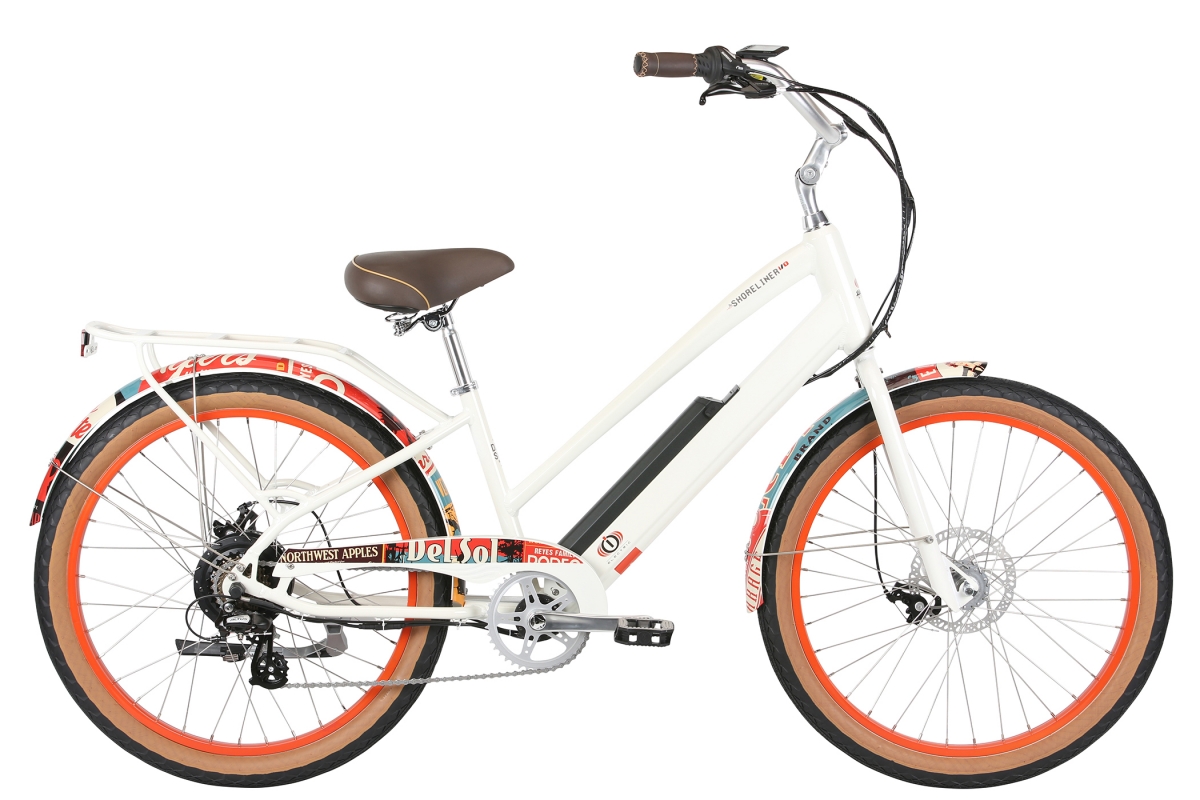

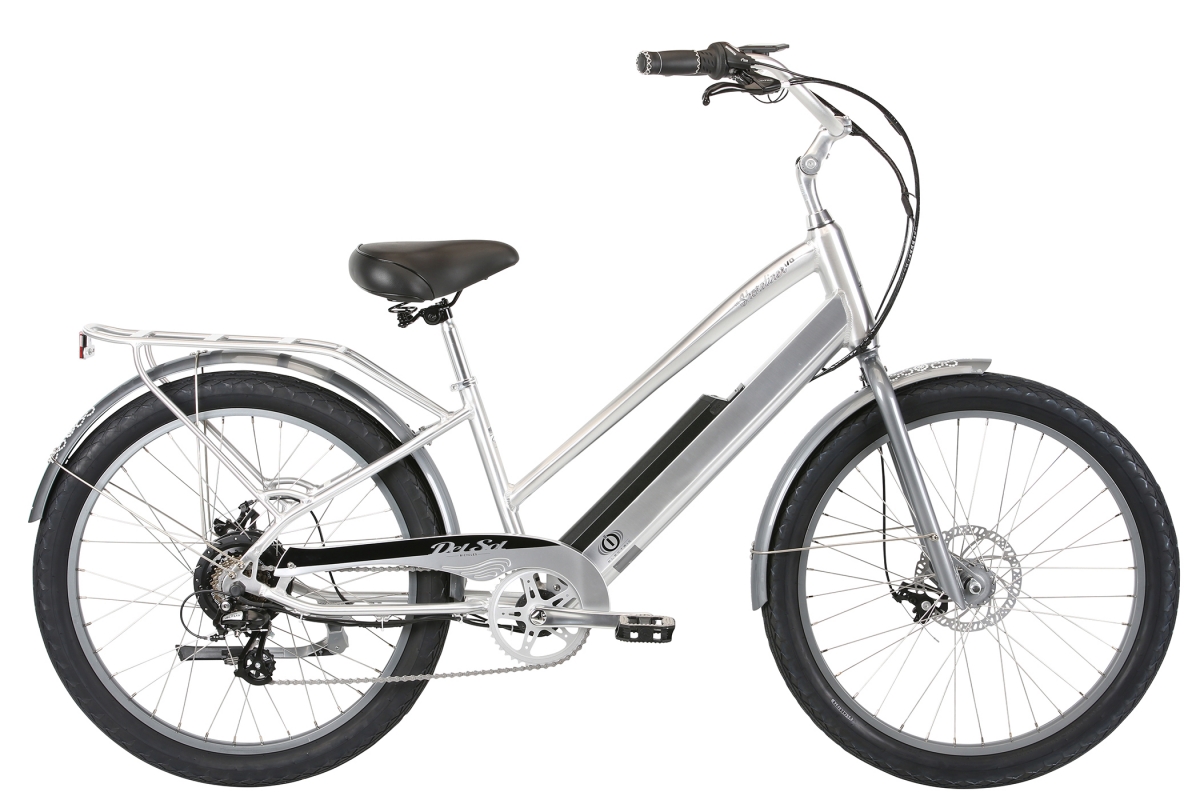

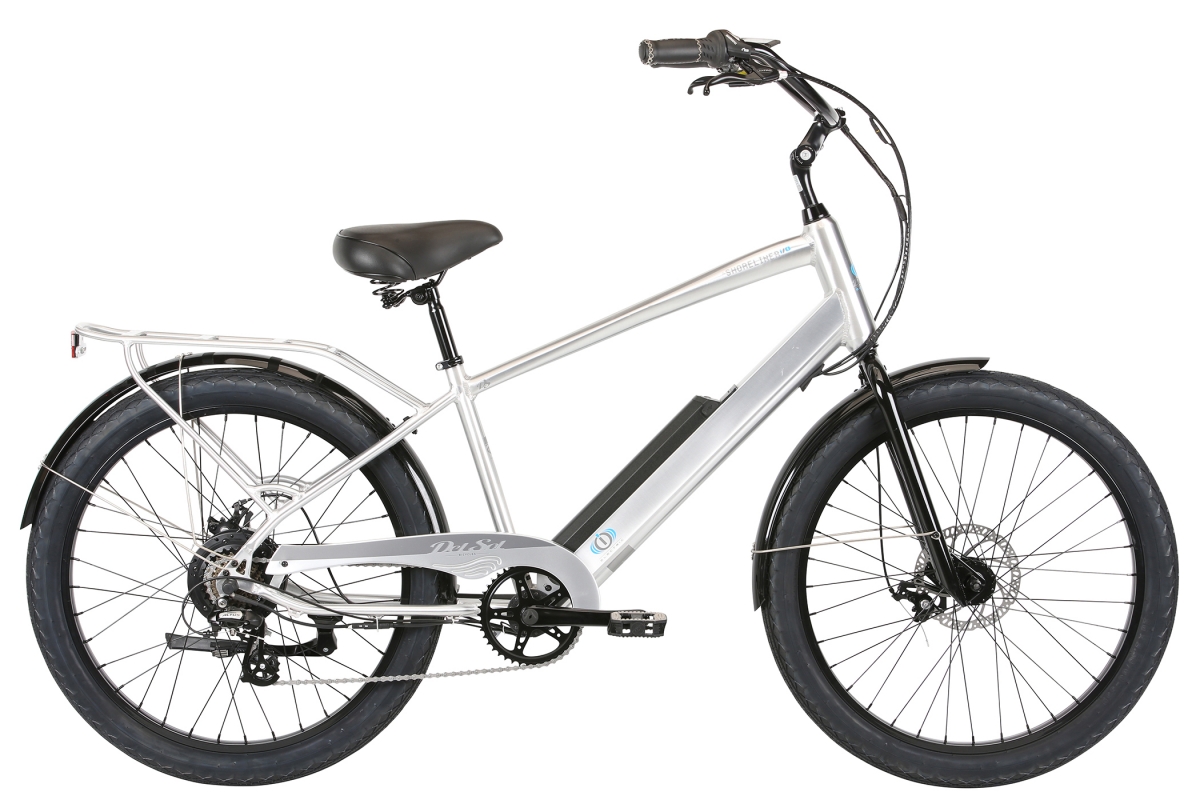

Shoreliner IO Throttle

Year 2020
MSRP $1,699.99 *
Sizes 15.5", 17"
Colors Matte Black, Brushed Alloy, Americano, Limpet Shell
Weight 56.5 lbs

Shoreliner i/O's lightweight SuperCruise Plus 6061 alloy frame with Semi-integrated battery downtube and weld-on cargo rear rack, cushy Plus-size 2.5" tires and disc brakes team up with a powerful 36V 350W rear hub pedal/throttle-assist powerplant. The system utilizes Samsung battery technology with 5 levels of assist and delivers an estimated 30+ miles of range depending on mode. Full recharge time is just 4 hours.

FEATURES

  • Lightweight alloy SuperCruise i/O frame featuring longer, more laid-back geometry, and clearance for the big rubber for the smoothest cruise
  • Custom Del Sol Cruiser bars for the most comfortable hand position
  • 350W Bafang hub motor
  • Semi-integrated Samsung battery
  • Integrated rear cargo rack
  • Shimano Altus 7-speed drivetrain with Revo twist shifter
  • 3-piece alloy crankset
  • Plus 2.5" cruiser tires
  • Full-coverage fenders keep the sand off your suit
SPECIFICATIONS
Frame Components
Frame Lightweight alloy SuperCruiser i/O frame for semi-integrated downtube battery, featuring longer more laid-back geometry and clearance for 2.5" wide tires
Fork Hi-Ten steel, 1-1/8" steerer tube, disc brake mount
Headset 1-1/8" Integrated
Drivetrain
Cranks Alloy 3 Piece, 42t
Bottom Bracket Sealed Cartridge
Chain KMC Z7
Front Derailleur N/A
Rear Deralleur Shimano Altus M310
Derailleur Shifter Shimano Revo, 7-speed
Drive Unit Class-2 Bafang rear hub motor - 36v/350w, E-Throttle control, LCD display
Battery 36V/14ah, 3500mAh, semi-integrated
Pedals Comfort w/Kraton Rubber Inserts
Wheels
Tires Cruiser 26 X 2.5"
Wheels/Rims Single-Wall, Alloy, 37mm wide
Hubs Front steel disc 36 H, rear 36V/350W hub motor disc 36 H
Freewheel/Cassette Shimano TZ FW, 14-28T, 7-speed
Braking System
Brakes Tektro Aries mechanical disc
Brake Levers Tektro Alloy Linear Pull
Other Components
Grips Del Sol foam with stitched cover
Handle Bar Cruiser, alloy, 700mm wide
Stem Alloy, 25.4mm OD X 150mm length quill, 90mm extension
Seat Del Sol Comfort Springer
Seat Post Alloy 27.2mm X 350mm
Seat Clamp Alloy 31.8mm
Extras Kickstand, integrated rack, full-coverage fenders, battery charger and cables
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
Mens 70° 72.1° 667mm (26.3") 431.8mm (17") 759.5mm (29.9")
ST 70° 72.1° 667mm (26.3") 431.8mm (17") 609.6mm (24")

RESOURCES

Owner's manual: Bike Manual PDF

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
