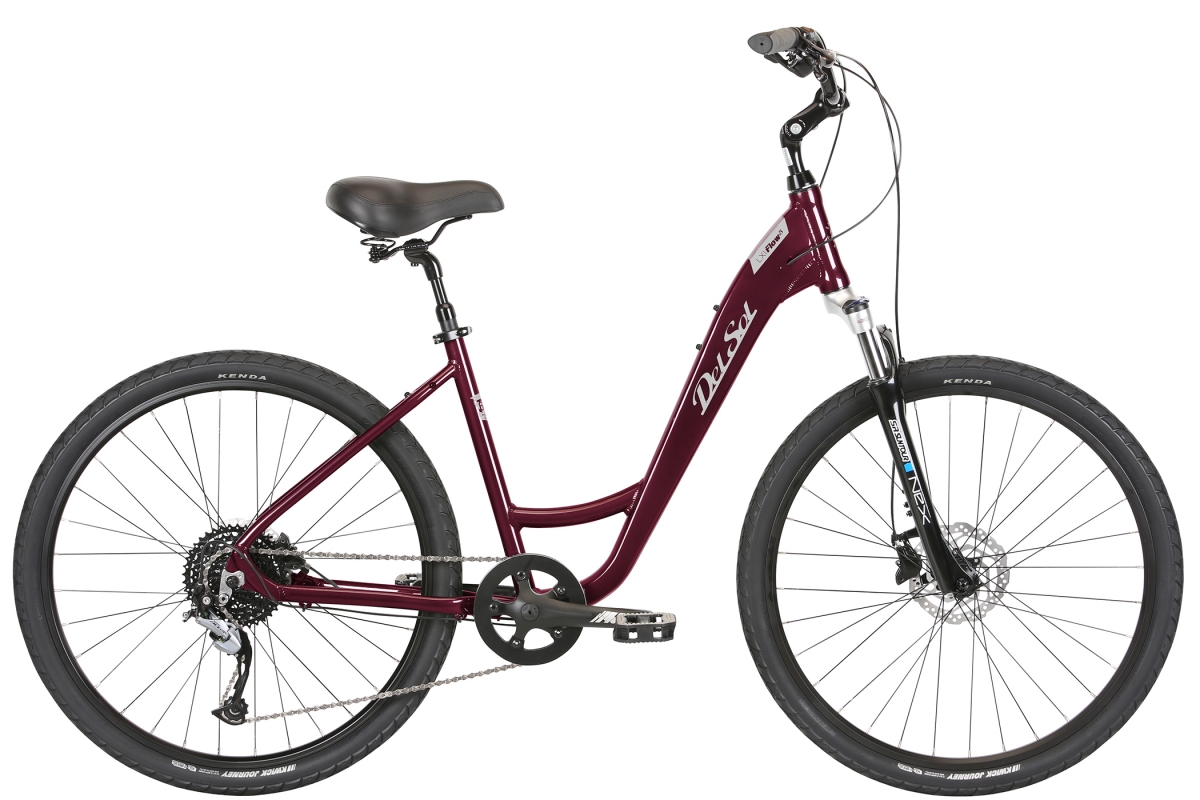

A comfortable and relaxing ride is what the LXI Flow 3 is all about. combining a Del Sol Comfort Springer saddle together with a suspension seat post, an SR suspension fork and an adjustable rise stem will guaranty this. And the lightweight aluminum frame, a Shimano Rapidfire Plus 1x9 drivetrain and hydraulic brakes will offer the rider light and efficient performance. Lastly and no less important, a uniquely proper fitting bicycle for most rider heights is achieved through frame sizing and proportionate wheel size. Depending on the frame size that best fits the customer, the bicycle is equipped with either a 26", 27.5" or a 29" wheel size.
FEATURES
- LXI Flow lightweight aluminum frame with Size-Specific Wheel design and disc brake mount
- SR Suntour, 63mm Travel fork with Hydraulic Lockout
- Forged Alloy crank arms, Bolt-On Alloy 38t chainwheel with dual alloy guard
- Wide-range 1x9 drivetrain with Shimano Alivio Rapidfire Plus shifter
- Alloy adjustable rise-angle stem with 80mm rise alloy handlebar
- Del Sol Comfort Springer saddle with suspension seat post
- Shimano CenterLock Disc hubs
- Alloy double wall rims with stainless steel spokes and Kenda Kwick Journey tires
- Shimano MT201 Hydraulic Disc
| Frame Components | |
|---|---|
| Frame | LXI Flow aluminum comfort frame with size specific wheel design |
| Fork | SR Suntour NEX HLO 63mm travel with hydraulic lockout |
| Headset | 1 1/8" internal, threaded |
| Drivetrain | |
| Cranks | Forged alloy arms, bolt-on alloy 38T, dual alloy guard |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC X9 |
| Rear Deralleur | Shimano Acera M3000 Shadow |
| Derailleur Shifter | Shimano Alivio Rapidfire Plus, 9 speed |
| Pedals | Nylon comfort with kraton |
| Wheels | |
| Tires | Kenda Kwick Journey Small: 26 x 1.75" Medium: 27.5 x 1.75" Large: 29 x 1.77" (700 x 45c) |
| Wheels/Rims | Double-wall alloy |
| Hubs | Shimano center-lock disc, 32H |
| Freewheel/Cassette | 9 speed, 11-40t |
| Spokes | Stainless 14g |
| Braking System | |
| Brakes | Shimano MT201 Hydraulic disc |
| Brake Levers | Shimano MT201 Hydraulic disc |
| Other Components | |
| Grips | Del Sol comfort dual density |
| Handle Bar | Alloy riser bar, 80mm rise, 635mm width |
| Stem | Alloy quill, adjustable rise-angle |
| Seat | Del Sol comfort springer |
| Seat Post | Alloy suspension, 27.2 X 300mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Extras | Rack and fender mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 15 ST | 70.5° | 74° | 571.5mm (22.5") | 381mm (15") | 439.9mm (17.3") | 1084.6mm (42.7") | 431.8mm (17") | ||||||||
| M / 17 ST | 70.5° | 74° | 584.2mm (23") | 431.8mm (17") | 449.6mm (17.7") | 1105.7mm (43.5") | 447mm (17.6") | ||||||||
| S / 15 | 70.5° | 74° | 571.5mm (22.5") | 381mm (15") | 439.9mm (17.3") | 1084.8mm (42.7") | 711.2mm (28") | ||||||||
| M / 17 | 70.5° | 74° | 584.2mm (23") | 431.8mm (17") | 449.8mm (17.7") | 1106.2mm (43.6") | 762mm (30") | ||||||||
| L / 20 | 70.5° | 74° | 591.8mm (23.3") | 508mm (20") | 469.9mm (18.5") | 1112mm (43.8") | 838.2mm (33") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
