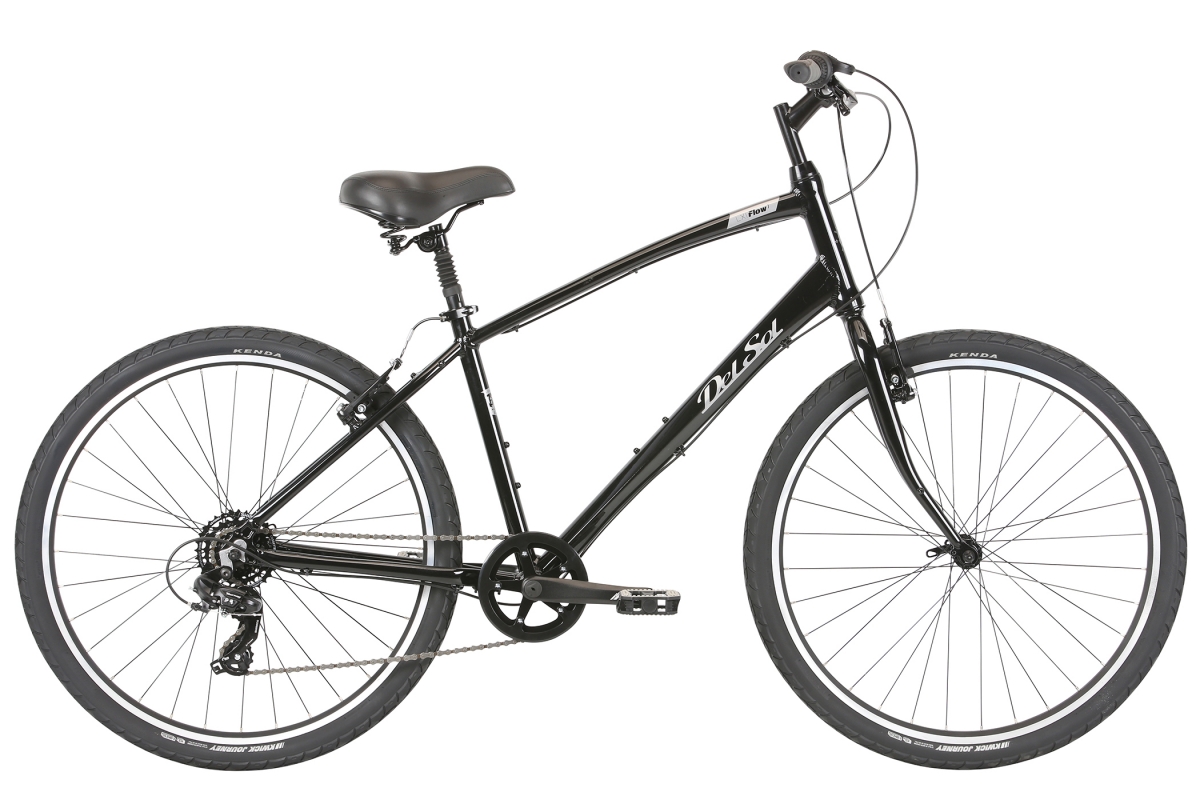

A comfortable and relaxing ride is what the LXI Flow 1 is all about. combining a Del Sol Comfort Springer saddle together with a suspension seat post and an 80mm rise handlebar will guaranty this. And the lightweight aluminum frame, a Shimano Revo shift 1x8 drivetrain and linear-pull brakes will offer the rider light and efficient performance. Lastly and no less important, a uniquely proper fitting bicycle for most rider heights is achieved through frame sizing and proportionate wheel size. Depending on the frame size that best fits the customer, the bicycle is equipped with either a 26", 27.5" or a 29" wheel size.
FEATURES
- LXI Flow lightweight aluminum frame with Size-Specific Wheel design
- Forged Alloy crank arms, steel 38t chainwheel with dual guard
- Wide-range 1x7 drivetrain with Shimano Revo twist shifter
- Del Sol Comfort Springer saddle with suspension seat post
- Alloy double wall rims with stainless steel spokes and Kenda Kwick Journey tires
| Frame Components | |
|---|---|
| Frame | LXI Flow aluminum comfort frame with size specific wheel design |
| Fork | Rigid Hi-Ten comfort |
| Headset | 1 1/8" internal, threaded |
| Drivetrain | |
| Cranks | Forged alloy arms, steel 38T, dual guard |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC Z7 |
| Rear Deralleur | Shimano Tourney TY300D |
| Derailleur Shifter | Shimano Revo |
| Pedals | Nylon comfort with kraton |
| Wheels | |
| Tires | Kenda Kwick Journey Small: 26 x 1.75" Medium: 27.5 x 1.75" Large: 29 x 1.77" (700 x 45c) |
| Wheels/Rims | Double-wall alloy |
| Hubs | Alloy, 32H |
| Freewheel/Cassette | Shimano Tourney, 12-32t, 7-speed |
| Spokes | Stainless 14g |
| Braking System | |
| Brakes | Alloy linear pull |
| Brake Levers | Alloy linear pull |
| Other Components | |
| Grips | Del Sol comfort dual density |
| Handle Bar | Steel riser bar, 80mm rise, 635mm width |
| Stem | Alloy, 180mm length quill |
| Seat | Del Sol comfort springer |
| Seat Post | Suspension, 27.2 X 300mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Extras | Rack and fender mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 15 ST | 70.5° | 74° | 571.5mm (22.5") | 381mm (15") | 439.9mm (17.3") | 1086.6mm (42.8") | 431.8mm (17") | ||||||||
| M / 17 ST | 70.5° | 74° | 584.2mm (23") | 431.8mm (17") | 449.6mm (17.7") | 1107.7mm (43.6") | 447mm (17.6") | ||||||||
| S / 15 | 70.5° | 74° | 571.5mm (22.5") | 381mm (15") | 439.9mm (17.3") | 1086.9mm (42.8") | 685.8mm (27") | ||||||||
| M / 17 | 70.5° | 74° | 584.2mm (23") | 431.8mm (17") | 449.8mm (17.7") | 1107.9mm (43.6") | 736.6mm (29") | ||||||||
| L / 20 | 70.5° | 74° | 591.8mm (23.3") | 508mm (20") | 469.9mm (18.5") | 1134.9mm (44.7") | 812.8mm (32") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
