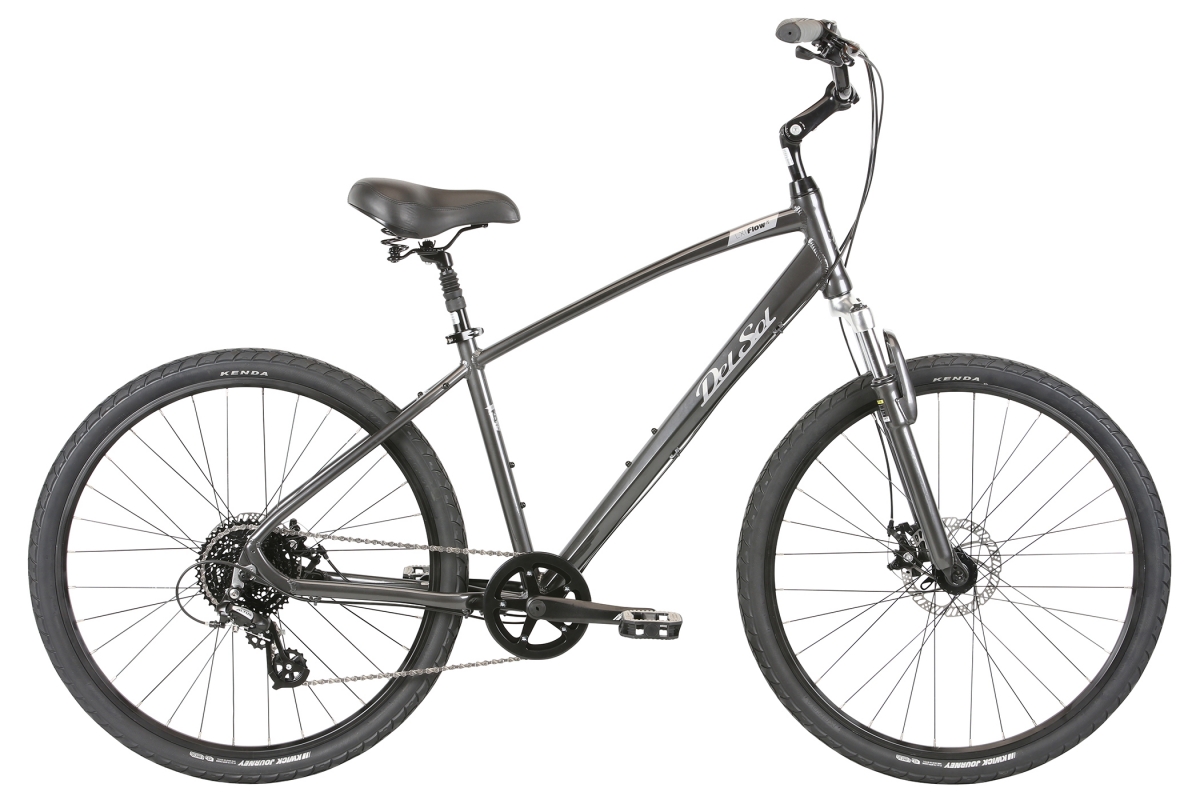

A comfortable and relaxing ride is what the LXI Flow 2 is all about. combining a Del Sol Comfort Springer saddle together with a suspension seat post, a suspension fork and an adjustable rise stem will guaranty this. And the lightweight aluminum frame, a Shimano Rapidfire Plus 1x8 drivetrain and mechanical disc brakes will offer the rider light and efficient performance. Lastly and no less important, a uniquely proper fitting bicycle for most rider heights is achieved through frame sizing and proportionate wheel size. Depending on the frame size that best fits the customer, the bicycle is equipped with either a 26", 27.5" or a 29" wheel size.
FEATURES
- LXI Flow lightweight aluminum frame with Size-Specific Wheel design and disc brake mount
- 60mm Travel suspension fork
- Forged Alloy crank arms, steel 38t chainwheel with dual guard
- Wide-range 1x8 drivetrain with Shimano Acera Rapidfire Plus shifter
- Alloy adjustable rise-angle stem with 80mm rise steel handlebar
- Del Sol Comfort Springer saddle with suspension seat post
- Alloy double wall rims with stainless steel spokes and Kenda Kwick Journey tires
- JAK Mechanical Disc
| Frame Components | |
|---|---|
| Frame | LXI Flow aluminum comfort frame with size specific wheel design |
| Fork | Suspension, 60mm travel |
| Headset | 1 1/8" internal, threaded |
| Drivetrain | |
| Cranks | Forged alloy arms, steel 38T, dual guard |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC X8 |
| Rear Deralleur | Shimano Altus M310 |
| Derailleur Shifter | Shimano Acera Rapidfire Plus, 8 speed |
| Pedals | Nylon comfort with kraton |
| Wheels | |
| Tires | Kenda Kwick Journey Small: 26 x 1.75" Medium: 27.5 x 1.75" Large: 29 x 1.77" (700 x 45c) |
| Wheels/Rims | Double-wall alloy |
| Hubs | Alloy disc, 32H |
| Freewheel/Cassette | 8 speed, 11-40t |
| Spokes | Stainless 14g |
| Braking System | |
| Brakes | JAK mechanical disc |
| Brake Levers | JAK alloy linear pull |
| Other Components | |
| Grips | Del Sol comfort dual density |
| Handle Bar | Steel riser bar, 80mm rise, 635mm width |
| Stem | Alloy quill, adjustable rise-angle |
| Seat | Del Sol comfort springer |
| Seat Post | Alloy suspension, 27.2 X 300mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Extras | Rack and fender mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 15 ST | 70.5° | 74° | 571.5mm (22.5") | 381mm (15") | 439.9mm (17.3") | 1084.6mm (42.7") | 431.8mm (17") | ||||||||
| M / 17 ST | 70.5° | 74° | 584.2mm (23") | 431.8mm (17") | 449.6mm (17.7") | 1105.7mm (43.5") | 447mm (17.6") | ||||||||
| S / 15 | 70.5° | 74° | 571.5mm (22.5") | 381mm (15") | 439.9mm (17.3") | 1084.8mm (42.7") | 711.2mm (28") | ||||||||
| M / 17 | 70.5° | 74° | 584.2mm (23") | 431.8mm (17") | 449.8mm (17.7") | 1106.2mm (43.6") | 762mm (30") | ||||||||
| L / 20 | 70.5° | 74° | 591.8mm (23.3") | 508mm (20") | 469.9mm (18.5") | 1112mm (43.8") | 838.2mm (33") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
