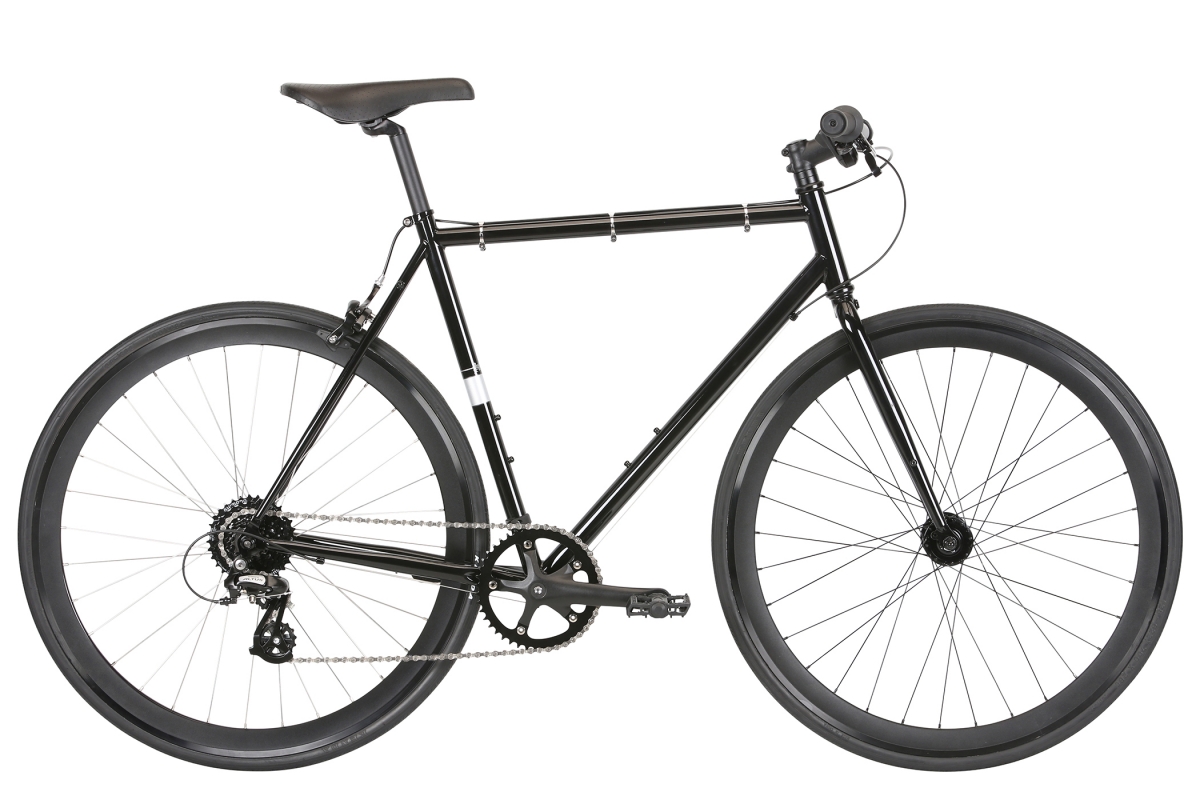

D Street Projekt 8 starts with the simplicity of a single speed, then dials up the versatility a notch with 8 terrain conquering speeds from Shimano with a Tektro 315 dual-pivot caliper rear brake. It sports a riser bar that has a 15mm rise and a 680mm width. Alloy 32-hole rims keep things light, stainless steel spokes keep things clean, Kenda 700x28c tires keep things smooth. Like all D Streets, the Projekt 8 is elegant and understated. If flies straight and true, just like you...
FEATURES
- D-Street steel urban road-frameset with vertical dropouts
- Forged Alloy 3 piece crank with a 44t chainwheel
- Shimano Altus rear derailleur with 8-speed cassette and an Acera Rapidfire Plus shifter
- Oversize Alloy riser handlebar with 7° rise A-head stem
- 40mm aero double-wall rims with a cassette rear hub and stainless steel spokes
- Kenda 700 X 28mm tires
| Frame Components | |
|---|---|
| Frame | D-Street urban road with vertical dropouts, Steel |
| Fork | Rigid Hi-Ten |
| Headset | 1 1/8" threadless |
| Drivetrain | |
| Cranks | Forged alloy 3-piece, 44t |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC Z8.1 |
| Rear Deralleur | Shimano Altus, 8-speed |
| Derailleur Shifter | Shimano Acera Rapidfire Plus |
| Pedals | Nylon body |
| Wheels | |
| Tires | Kenda, 700 X 28mm |
| Wheels/Rims | 40mm aero double-wall alloy |
| Hubs | Alloy track style 32h front, alloy cassette 32h rear |
| Freewheel/Cassette | 12-32T, 8-speed |
| Spokes | Stainless 14g |
| Braking System | |
| Brakes | Rear, alloy dual pivot caliper |
| Brake Levers | Alloy lever and clamp |
| Other Components | |
| Grips | The "Counterfeit Grip" |
| Handle Bar | Alloy, 15mm rise, 680mm width |
| Stem | Alloy, 7 degree Rise |
| Seat | D-Street padded retro |
| Seat Post | Alloy micro adjust 27.2mm X 300mm |
| Seat Clamp | Integrated |
| Extras | Rack and fender mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS - 49 | 72° | 74.5° | 520.7mm (20.5") | 491.5mm (19.4") | 415mm (16.3") | 976.4mm (38.4") | 841mm (33.1") | ||||||||
| S - 51 | 72.5° | 74° | 530.1mm (20.9") | 511.3mm (20.1") | 415mm (16.3") | 977.9mm (38.5") | 861.3mm (33.9") | ||||||||
| M - 53 | 73° | 73.5° | 544.8mm (21.5") | 531.4mm (20.9") | 415mm (16.3") | 983.7mm (38.7") | 881.4mm (34.7") | ||||||||
| M/L - 56 | 73.5° | 73° | 564.9mm (22.2") | 561.3mm (22.1") | 415mm (16.3") | 994.7mm (39.2") | 911.4mm (35.9") | ||||||||
| L - 58 | 74° | 73° | 579.9mm (22.8") | 581.4mm (22.9") | 415mm (16.3") | 1004.3mm (39.5") | 931.4mm (36.7") | ||||||||
| XL - 60 | 74° | 72.5° | 599.9mm (23.6") | 601.5mm (23.7") | 415mm (16.3") | 1018.3mm (40.1") | 951.5mm (37.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
