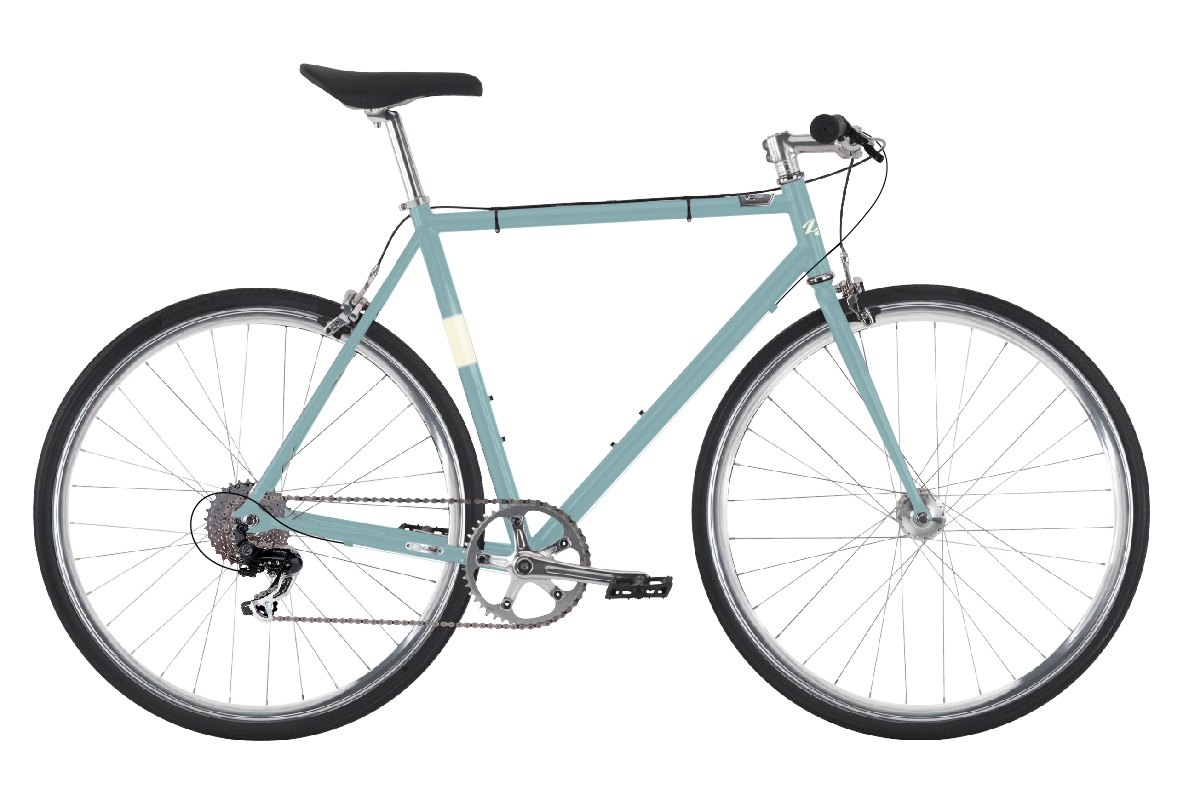

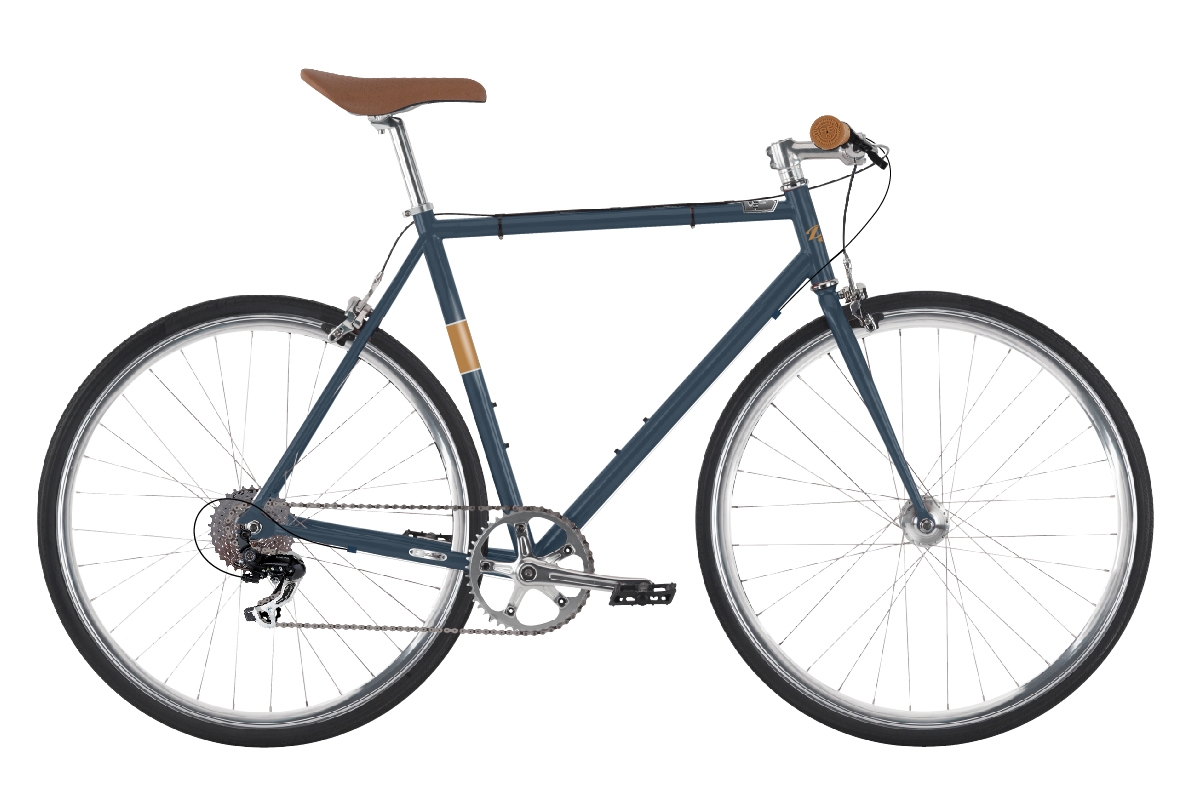

This 8-speed bike is the ideal commuter for serious daily riders. The Projekt 8 still touts the offbeat, edgy feel of D street, but with a simple and clean design. Own the streets with this sleek ride and never look back.
FEATURES
- Custom D Street hi-ten urban frameset
- Alloy 3-piece crankset with sealed BB
- Shimano 8 speed drivetrain
- Tektro R317 brakeset
- Kenda 700 x 28c tires
- Sturdy 32 hole alloy wheelset w/doublewall rims
| Frame Components | |
|---|---|
| Frame | D Street Hi-ten fixed frame w/vertical dropouts |
| Fork | Rigid Hi-Ten Fixie |
| Headset | 1 1/8" Threadless |
| Drivetrain | |
| Cranks | Forged alloy 3 piece, 40t |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC Z72 |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Altus M310 |
| Derailleur Shifter | Shimano SL-M310 |
| Pedals | Wellgo nylon body |
| Wheels | |
| Tires | Kenda K176, 700 x 28c |
| Wheels/Rims | Weinmann ZAC19 alloy double wall rims, alloy disc hubs |
| Freewheel/Cassette | Sunrace MFM56 12-32t |
| Braking System | |
| Brakes | Tektro R317 |
| Brake Levers | Tektro HAL89A |
| Other Components | |
| Grips | Counterfit |
| Handle Bar | Steel riser bar, 30mm rise, 600mm width, 25.4mm clamp |
| Stem | Forged alloy, 10 degree rise |
| Seat | D-Street Padded Retro |
| Seat Post | Pivit alloy micro adjust 27.2mm |
| Seat Clamp | Alloy QR, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 70° | 74.5° | 533mm (21") | 490mm (19.3") | 424mm (16.7") | 70mm (2.8") | 1019mm (40.1") | 757mm (29.8") | |||||||
| 52 | 70.5° | 74° | 541mm (21.3") | 521mm (20.5") | 424mm (16.7") | 70mm (2.8") | 1024mm (40.3") | 775mm (30.5") | |||||||
| 55 | 71° | 74° | 556mm (21.9") | 551mm (21.7") | 424mm (16.7") | 70mm (2.8") | 1034mm (40.7") | 803mm (31.6") | |||||||
| 58 | 72° | 74° | 574mm (22.6") | 579mm (22.8") | 424mm (16.7") | 70mm (2.8") | 1044mm (41.1") | 833mm (32.8") | |||||||
| 61 | 72° | 73° | 594mm (23.4") | 610mm (24") | 424mm (16.7") | 70mm (2.8") | 1062mm (41.8") | 856mm (33.7") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
