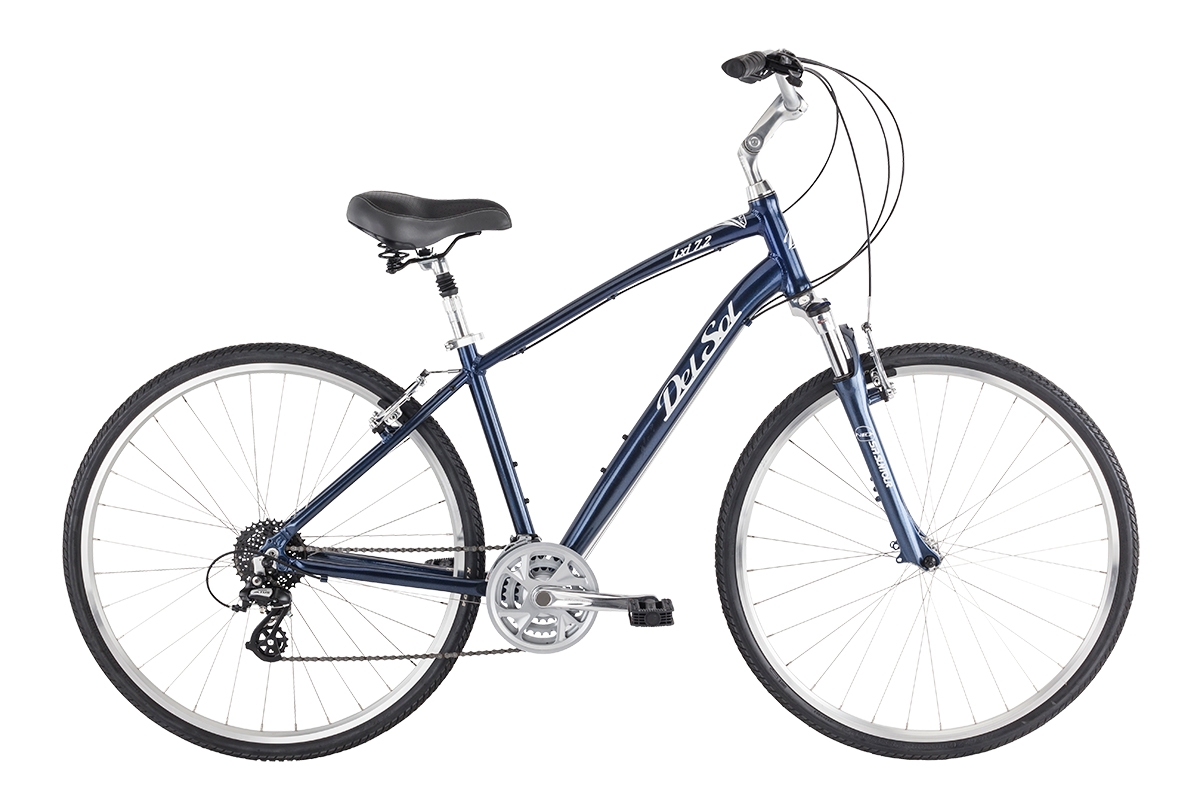

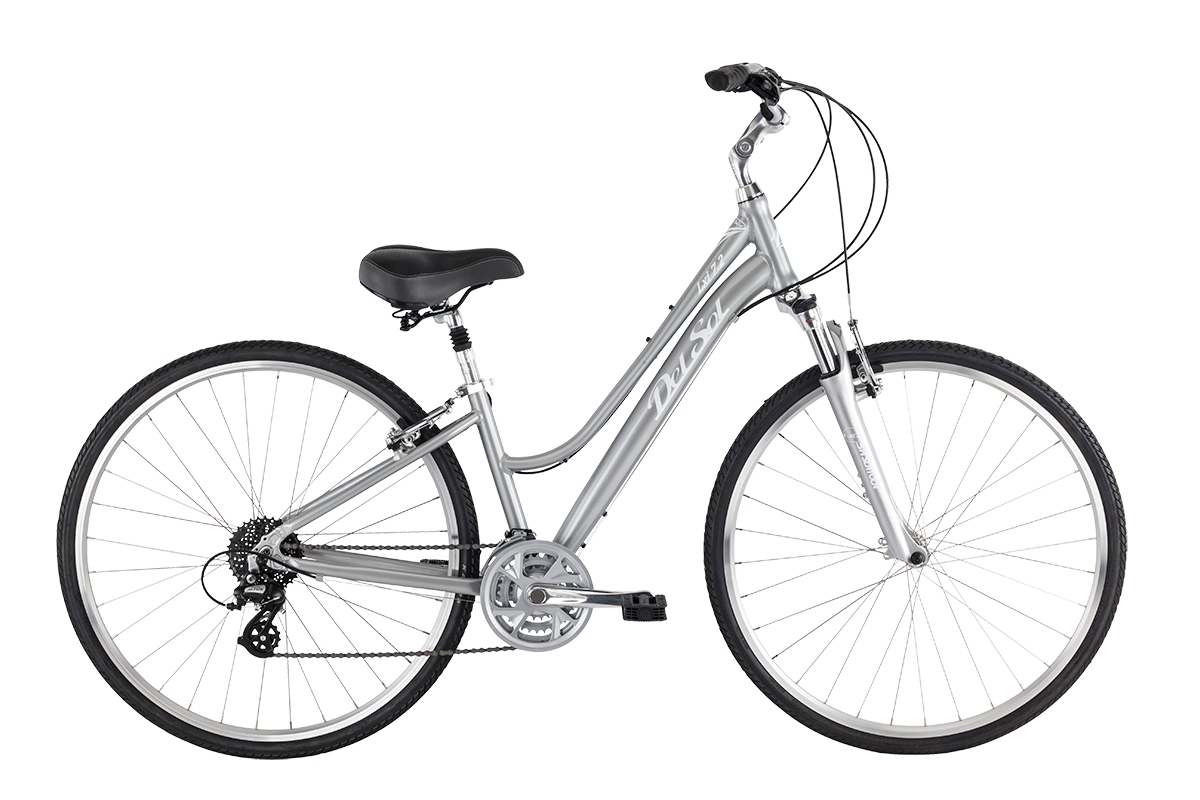

The 24-speed Del Sol LXI 7.2 brings you a slick ride that’s tough enough to take on the steepest of hills. With upright, plush seating and smooth, quiet pedaling, this versatile bike is ideal for long rides.
FEATURES
- Del Sol Lightweight 6061 aluminum exclusive upright comfort frame
- Ultra-compliant 63mm travel suspension fork with lock out
- Shimano 24 speed Altus deraileurs with EZ Fire shifters
- Custom Del Sol comfort plush saddle with suspension seat post
- Adjustable angle stem and lightweight alloy handlebar
- Lightweight 32h alloy wheelset with quick release
- Smooth rolling 700c X 38c all-purpose tires on double-wall alloy rims
| Frame Components | |
|---|---|
| Frame | Lxi 700C Step-Thru Comfort 6061 T6 oversized aluminum frame |
| Fork | SR Suntour NEX HLO, 63mm travel w/ hydraulic lock out |
| Headset | 1 1/8" Threaded |
| Drivetrain | |
| Cranks | SR Suntour XCC 172, 42/32/22 |
| Bottom Bracket | Sealed cartridge |
| Chain | Shimano HG40 |
| Front Derailleur | Shimano Altus |
| Rear Deralleur | Shimano Altus |
| Derailleur Shifter | Shimano EF-51 EZ Fire, 8 speed |
| Pedals | Comfort w/Kraton rubber inserts |
| Wheels | |
| Tires | Kenda Keen, 700 x 38c |
| Wheels/Rims | DH-18 32h rims, alloy cassette hubs, stainless steel spokes |
| Freewheel/Cassette | Shimano HG-31, 8 speed cassette, 11-32 |
| Braking System | |
| Brakes | Alloy direct pull w/ linear spring |
| Brake Levers | Shimano EF-51 |
| Other Components | |
| Grips | Comfort Dual density |
| Handle Bar | Steel riser bar, 80mm rise, 680mm width, 25.4mm clamp |
| Stem | Forged alloy quill, adjustable rise |
| Seat | Del Sol Comfort |
| Seat Post | Alloy suspension, 27.2 x 300mm |
| Seat Clamp | Alloy 31.8mm quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 ST | 70.5° | 74° | 587mm (23.1") | 356mm (14") | 450mm (17.7") | 70mm (2.8") | 1041mm (41") | 625mm (24.6") | |||||||
| 17 ST | 70.5° | 74° | 597mm (23.5") | 432mm (17") | 450mm (17.7") | 70mm (2.8") | 1062mm (41.8") | 638mm (25.1") | |||||||
| 14 | 70.5° | 74° | 536mm (21.1") | 356mm (14") | 450mm (17.7") | 70mm (2.8") | 1036mm (40.8") | 673mm (26.5") | |||||||
| 17 | 70.5° | 74° | 549mm (21.6") | 432mm (17") | 450mm (17.7") | 70mm (2.8") | 1062mm (41.8") | 686mm (27") | |||||||
| 20 | 71° | 73° | 559mm (22") | 508mm (20") | 450mm (17.7") | 70mm (2.8") | 1069mm (42.1") | 737mm (29") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
