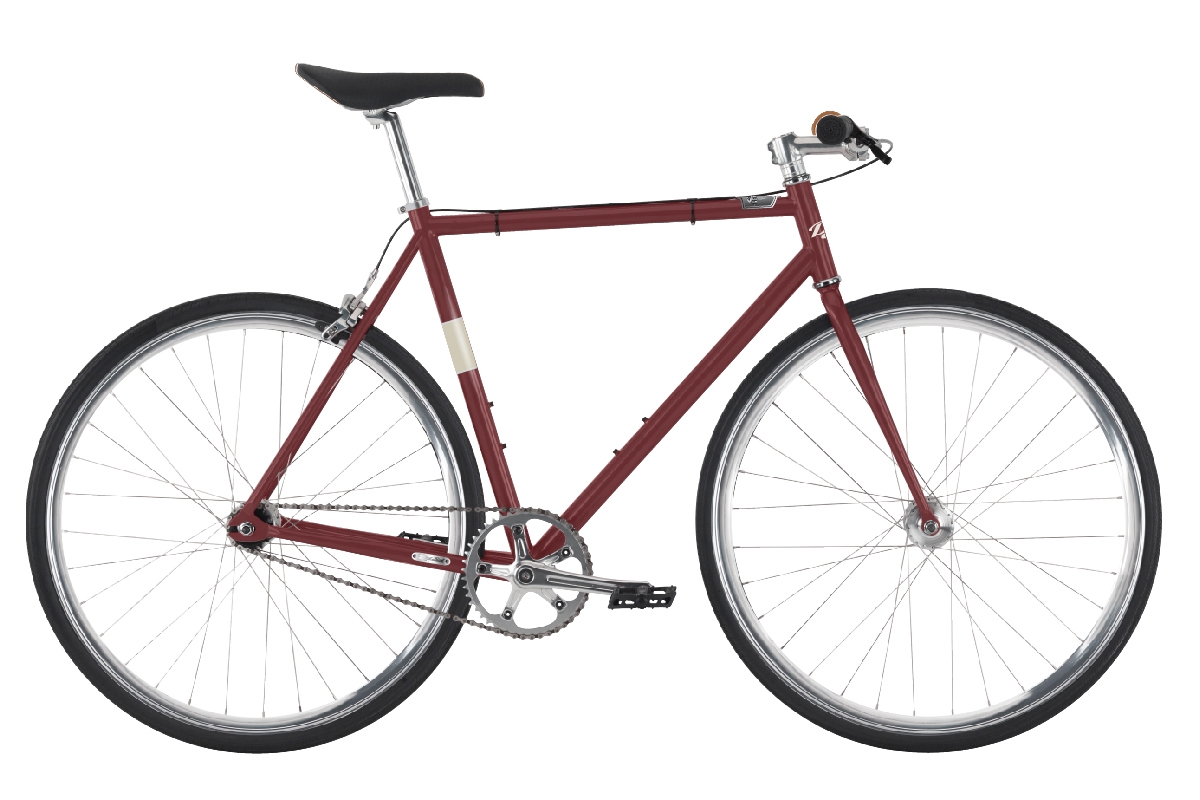

These new single-speed bikes are for die-hard fixed gear riders who are looking for a little more edge in their rides. Your Projekt fixie will be the talk of the town, as its sealed bearings makes spinning the cranks feel like pure bliss. Say hello to skid stops in style!
FEATURES
- Custom D Street hi ten fixie frameset
- Alloy 3-piece crankset with sealed BB
- Fixed/Freewheel drivetrain
- Tektro R317 rear brake
| Frame Components | |
|---|---|
| Frame | D-Street Hi-ten fixed frame w/track dropouts |
| Fork | Rigid Hi-Ten Fixie |
| Headset | 1 1/8" Threadless |
| Drivetrain | |
| Cranks | Forged alloy 3 piece, 42t |
| Bottom Bracket | Sealed Cartridge |
| Chain | KMC Z410 |
| Front Derailleur | N/A |
| Rear Deralleur | N/A |
| Derailleur Shifter | N/A |
| Pedals | Wellgo nylon body |
| Wheels | |
| Tires | Kenda K176, 700 x 28c |
| Wheels/Rims | Weinmann SEC-16 32h rims, flip/flop hubs |
| Freewheel/Cassette | 16t fixed cog w/ lock ring & 16t freewheel |
| Braking System | |
| Brakes | Tektro R317 rear brake only |
| Brake Levers | Tektro HAL89A |
| Other Components | |
| Grips | Counterfit |
| Handle Bar | Steel riser bar, 30mm rise, 600mm width, 25.4mm clamp |
| Stem | Forged alloy, 10 degree rise |
| Seat | D-Street Padded Retro |
| Seat Post | Pivit alloy micro adjust 27.2mm |
| Seat Clamp | Alloy Single Bolt |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 70° | 74.5° | 533mm (21") | 490mm (19.3") | 424mm (16.7") | 70mm (2.8") | 1019mm (40.1") | 757mm (29.8") | |||||||
| 52 | 70.5° | 74° | 541mm (21.3") | 521mm (20.5") | 424mm (16.7") | 70mm (2.8") | 1024mm (40.3") | 775mm (30.5") | |||||||
| 55 | 71° | 74° | 556mm (21.9") | 551mm (21.7") | 424mm (16.7") | 70mm (2.8") | 1034mm (40.7") | 803mm (31.6") | |||||||
| 58 | 72° | 74° | 574mm (22.6") | 579mm (22.8") | 424mm (16.7") | 70mm (2.8") | 1044mm (41.1") | 833mm (32.8") | |||||||
| 61 | 72° | 73° | 594mm (23.4") | 610mm (24") | 424mm (16.7") | 70mm (2.8") | 1062mm (41.8") | 856mm (33.7") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
