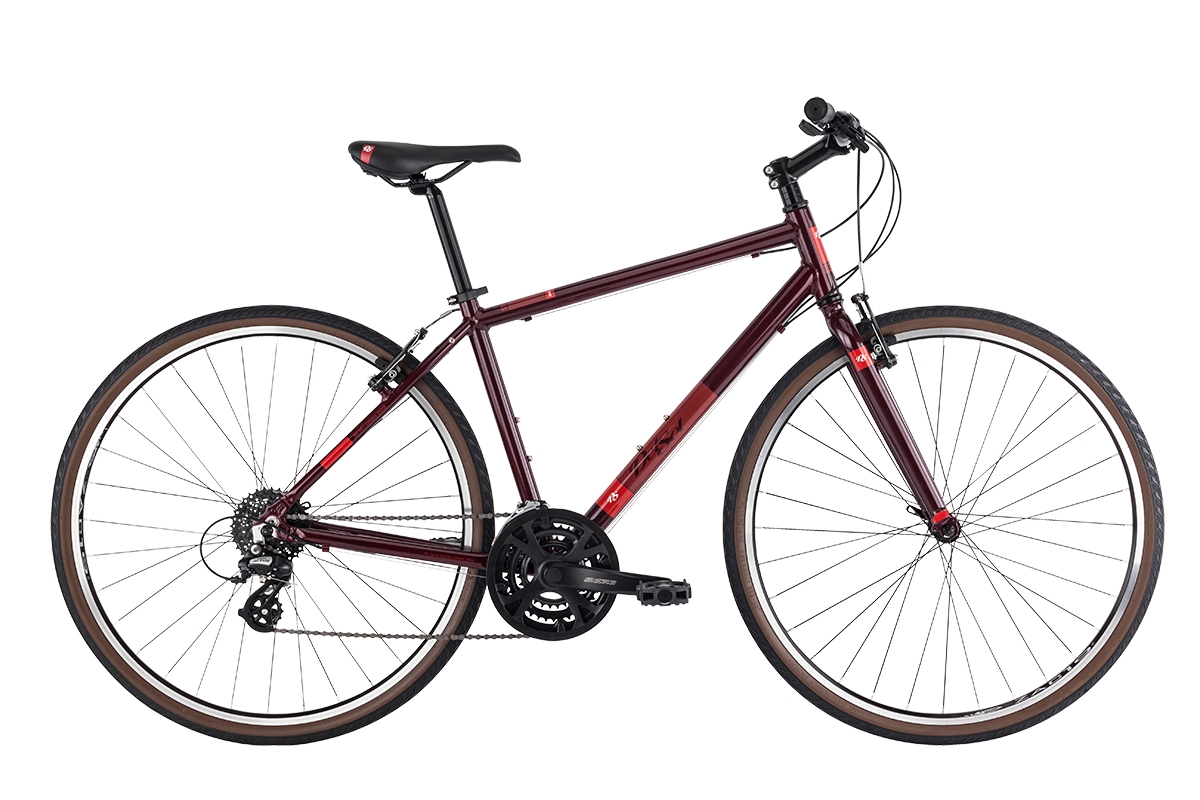

Campus 202
| Year | 2016 |
|---|---|
| MSRP | $439.99 * |
| Sizes | 14", 16", 18", 20", 22" |
| Colors | Riverwalk |
| Weight |
The Shimano 24-speed drive train allows this Campus 202 bike to go anywhere you point it. This bike’s great handling allows for worry-free transport of textbooks, laptops and even morning coffee. Fast and lightweight, the Campus 202 will get you to class and back in no time.
FEATURES
- Del Sol custom lightweight 6061 alloy Campus frame
- 4130 chromoly fork
- Shimano 24 speed Altus deraileurs with EZ Fire shifters
- Plush Del Sol Campus saddle
- Lightweight alloy handlebar and stem
- Lightweight 32h alloy wheelset with quick release
- Great handling and fast rolling 35c tires
| Frame Components | |
|---|---|
| Frame | Campus 700c 6061 T6 oversized aluminum frame |
| Fork | Rigid cromoly |
| Headset | 1 1/8" threadless |
| Drivetrain | |
| Cranks | SR Suntour XCC 208, 48/38/28 |
| Bottom Bracket | Sealed cartridge |
| Chain | Shimano HG40 |
| Front Derailleur | Shimano Altus |
| Rear Deralleur | Shimano Altus |
| Derailleur Shifter | Shimano EF-51, 8 speed |
| Pedals | Nylon City |
| Wheels | |
| Tires | Kenda Komfort Kruiser, 26 x 2.125" |
| Wheels/Rims | Weinmann Zac 19 32h rims, alloy cassette hubs, stainless steel spokes |
| Freewheel/Cassette | Shimano HG-31, 8 speed cassette, 11-32 |
| Braking System | |
| Brakes | Alloy direct pull w/ linear spring |
| Brake Levers | Shimano EF-51 |
| Other Components | |
| Grips | City Dual density |
| Handle Bar | Alloy riser bar, 25mm rise, 680mm width, 31.8mm clamp |
| Stem | Forged alloy, 10 degree rise |
| Seat | Del Sol City |
| Seat Post | Alloy micro adjust, 27.2 x 350mm |
| Seat Clamp | Alloy 31.8mm quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 70.5° | 74° | 546mm (21.5") | 356mm (14") | 450mm (17.7") | 70mm (2.8") | 1036mm (40.8") | 673mm (26.5") | |||||||
| 16 | 70.5° | 74° | 551mm (21.7") | 406mm (16") | 450mm (17.7") | 70mm (2.8") | 1062mm (41.8") | 686mm (27") | |||||||
| 18 | 71° | 73° | 564mm (22.2") | 457mm (18") | 450mm (17.7") | 70mm (2.8") | 1069mm (42.1") | 711mm (28") | |||||||
| 20 | 71° | 73° | 584mm (23") | 508mm (20") | 450mm (17.7") | 70mm (2.8") | 1069mm (42.1") | 737mm (29") | |||||||
| 22 | 72.5° | 73° | 599mm (23.6") | 559mm (22") | 450mm (17.7") | 70mm (2.8") | 1069mm (42.1") | 762mm (30") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
