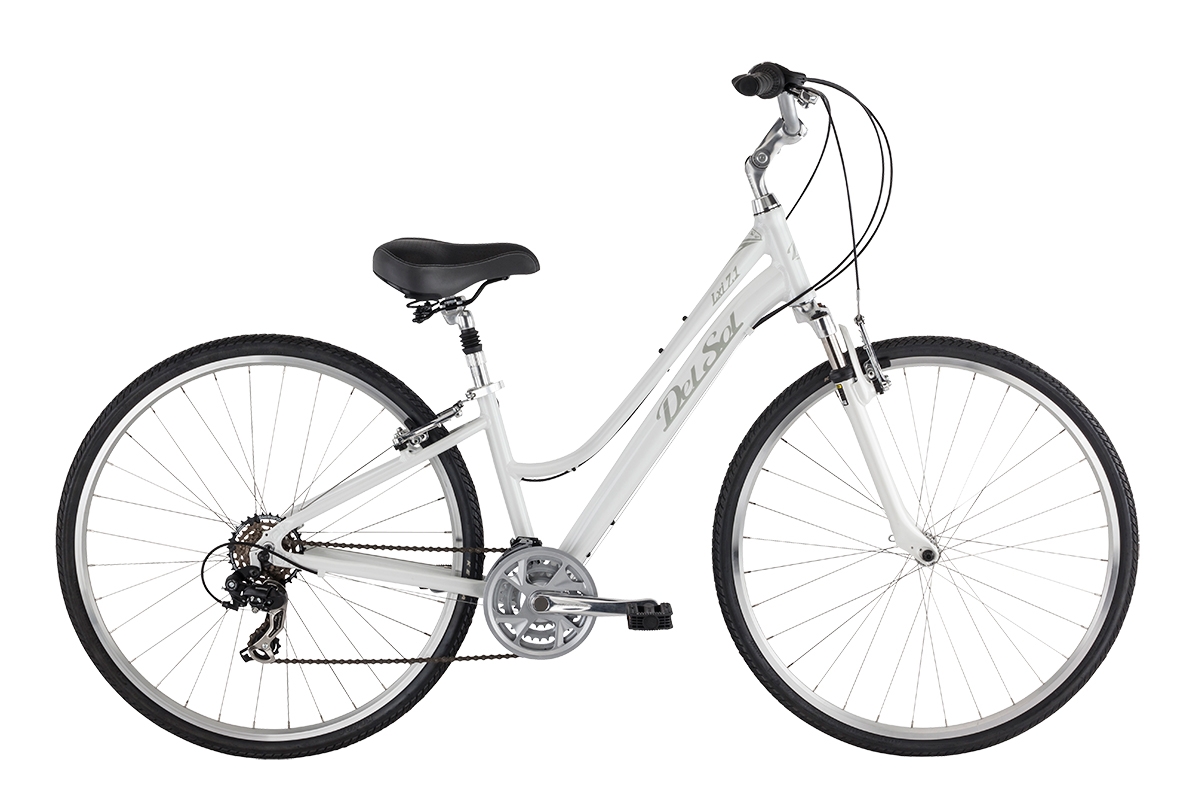

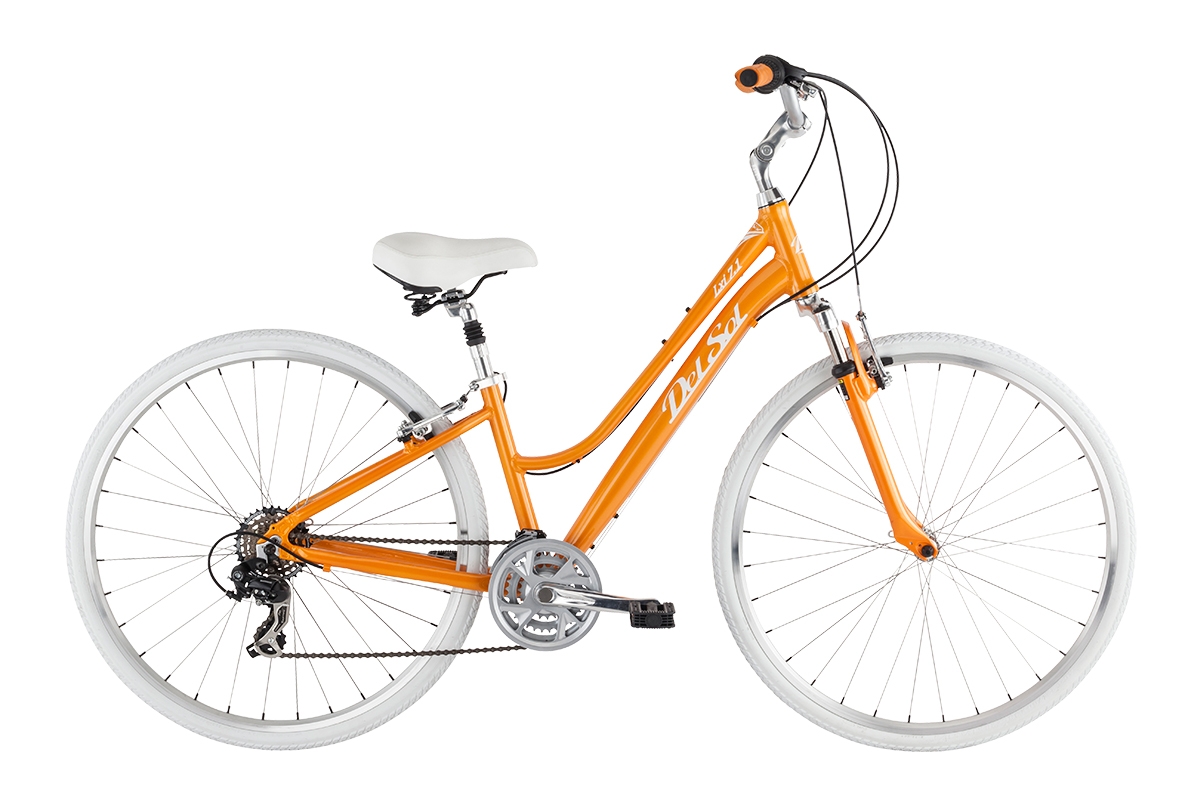

Lxi 7.1
- Year: 2016
- MSRP: $429.99 *
- Sizes: 14", 17", 20"
- Colors: Onyx, Pearly White, Orangecycle
- Weight:
- NO LONGER AVAILABLE
The 21-speed LXI 7.1 provides the same pleasant ride as the 7.2 but with fewer speeds, making for a simpler riding experience. Still boasting Del Sol's exclusive upright comfort frame, you won't sacrifice performance for simplicity.
FEATURES
- Del Sol Lightweight 6061 aluminum exclusive upright comfort frame
- Ultra-compliant 30mm travel suspension fork
- Shimano 21 speed Tourney deraileurs with Revo twist shifters
- Custom Del Sol comfort plush saddle with suspension seat post
- Adjustable angle stem and lightweight alloy handlebar
- Lightweight 32h alloy wheelset with quick release
- Smooth rolling 700c X 38c all-purpose tires on double-wall alloy rims
Frame Components | |
---|---|
Frame | Lxi 700C Step-Thru Comfort 6061 T6 oversized aluminum frame |
Fork | Del Sol 120-E, 30mm travel |
Headset | 1 1/8" Threaded |
Drivetrain | |
Cranks | SR Suntour XCC 172, 42/32/22 |
Bottom Bracket | Sealed cartridge |
Chain | KMC Z51 |
Front Derailleur | Shimano TX-50 |
Rear Deralleur | Shimano TX-35 |
Derailleur Shifter | Shimano Revo, 7 speed |
Pedals | Comfort w/Kraton rubber inserts |
Wheels | |
Tires | Kenda Keen, 700 x 38c |
Wheels/Rims | DH-18 32h rims, alloy cassette hubs, stainless steel spokes |
Freewheel/Cassette | Shimano HG-20, 7 speed cassette, 12-32 |
Braking System | |
Brakes | Alloy direct pull w/ linear spring |
Brake Levers | Tektro CL-530 |
Other Components | |
Grips | Comfort Dual density |
Handle Bar | Steel riser bar, 80mm rise, 680mm width, 25.4mm clamp |
Stem | Forged alloy quill, adjustable rise |
Seat | Del Sol Comfort |
Seat Post | Alloy suspension, 27.2 x 300mm |
Seat Clamp | Alloy 31.8mm quick release |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
14 ST | 70.5° | 74° | 587mm (23.1") | 356mm (14") | 450mm (17.7") | 70mm (2.8") | 1041mm (41") | 625mm (24.6") | |||||||
17 ST | 70.5° | 74° | 597mm (23.5") | 432mm (17") | 450mm (17.7") | 70mm (2.8") | 1062mm (41.8") | 638mm (25.1") | |||||||
14 | 70.5° | 74° | 536mm (21.1") | 356mm (14") | 450mm (17.7") | 70mm (2.8") | 1036mm (40.8") | 673mm (26.5") | |||||||
17 | 70.5° | 74° | 549mm (21.6") | 432mm (17") | 450mm (17.7") | 70mm (2.8") | 1062mm (41.8") | 686mm (27") | |||||||
20 | 71° | 73° | 559mm (22") | 508mm (20") | 450mm (17.7") | 70mm (2.8") | 1069mm (42.1") | 737mm (29") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
