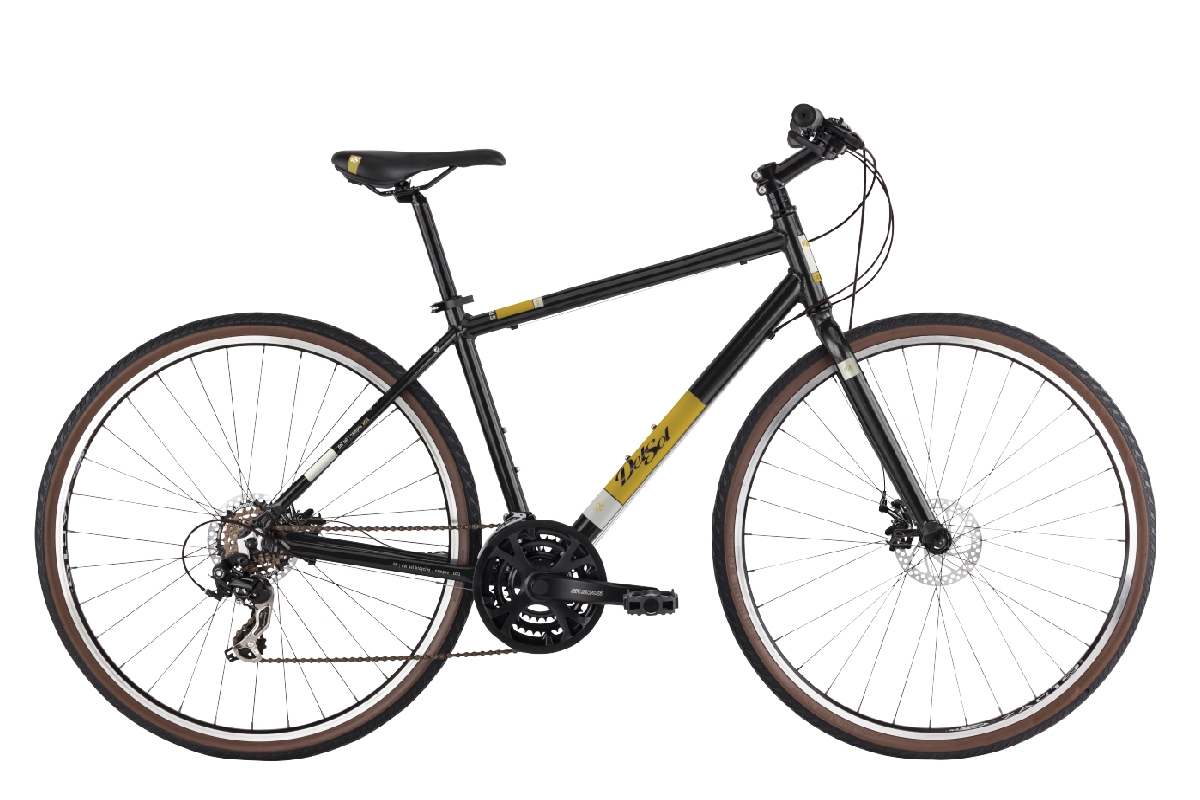

The 2016 Campus 202 features disc brakes, which allow you to stop much quicker and safer, even with the added load of textbooks. The 202’s plush saddle will make you feel so comfy that you may just want to keep riding right off campus.
FEATURES
- Campus 6061 alloy frame w/ disc brake mount
- Rigid fork w/ 1-1/8" steerer & IS disc mount
- Suntour XCC 48/38/28T crankset w/ sealed cartridge BB
- Shimano Altus 24-speed derailleurs & shifters
- Shimano 8-spd 11-32T cassette
- Lightweight alloy 31.8mm handlebar & stem
- Weinmann Eagle 17 Disc lightweight wheelset w/ quick release
- Fast rolling and comfortable 700x35c tires
- New Tektro MD280 mechanical disc brakes
| Frame Components | |
|---|---|
| Frame | Campus 6061 alloy with disc brake mount |
| Fork | Rigid steel w/ Disc brake mount |
| Headset | 1-1/8" Threadless Steel Cups w/ Loose Ball |
| Drivetrain | |
| Cranks | SR Suntour XCC-14 48/38/28T w/ chainguard |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC Z51 1/2x3/32" |
| Front Derailleur | Shimano Altus |
| Rear Deralleur | Shimano Altus |
| Derailleur Shifter | Shimano EF-51 EZ-fire 3x8-speed |
| Pedals | Del Sol Campus |
| Wheels | |
| Tires | CY Comfort 700 x 35c |
| Wheels/Rims | Weinmann Eagle 17 Disc, 700x32-38c doublewall rims w/ alloy 32h cassette& disc hubs w/ quick release |
| Freewheel/Cassette | Shimano HG-31 11-32T 8 speed |
| Braking System | |
| Brakes | Tektro MD-M280 Mechanical, w/ 6" Rotor; For IS Mount front & rear |
| Brake Levers | Shimano EF-51 |
| Other Components | |
| Grips | Del Sol Campus |
| Handle Bar | Alloy riser bar w/ 35mm rise |
| Stem | Alloy forged stem, 7 deg. rise |
| Seat | Del Sol Campus |
| Seat Post | Alloy Micro Adjust 27.2 x 350mm |
| Seat Clamp | 31.8mm alloy clamp w/ quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 70.5° | 74° | 546mm (21.5") | 356mm (14") | 450mm (17.7") | 70mm (2.8") | 1036mm (40.8") | 673mm (26.5") | |||||||
| 16 | 70.5° | 74° | 551mm (21.7") | 406mm (16") | 450mm (17.7") | 70mm (2.8") | 1062mm (41.8") | 686mm (27") | |||||||
| 18 | 71° | 73° | 564mm (22.2") | 457mm (18") | 450mm (17.7") | 70mm (2.8") | 1069mm (42.1") | 711mm (28") | |||||||
| 20 | 71° | 73° | 584mm (23") | 508mm (20") | 450mm (17.7") | 70mm (2.8") | 1069mm (42.1") | 737mm (29") | |||||||
| 22 | 72.5° | 73° | 599mm (23.6") | 559mm (22") | 450mm (17.7") | 70mm (2.8") | 1069mm (42.1") | 762mm (30") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
