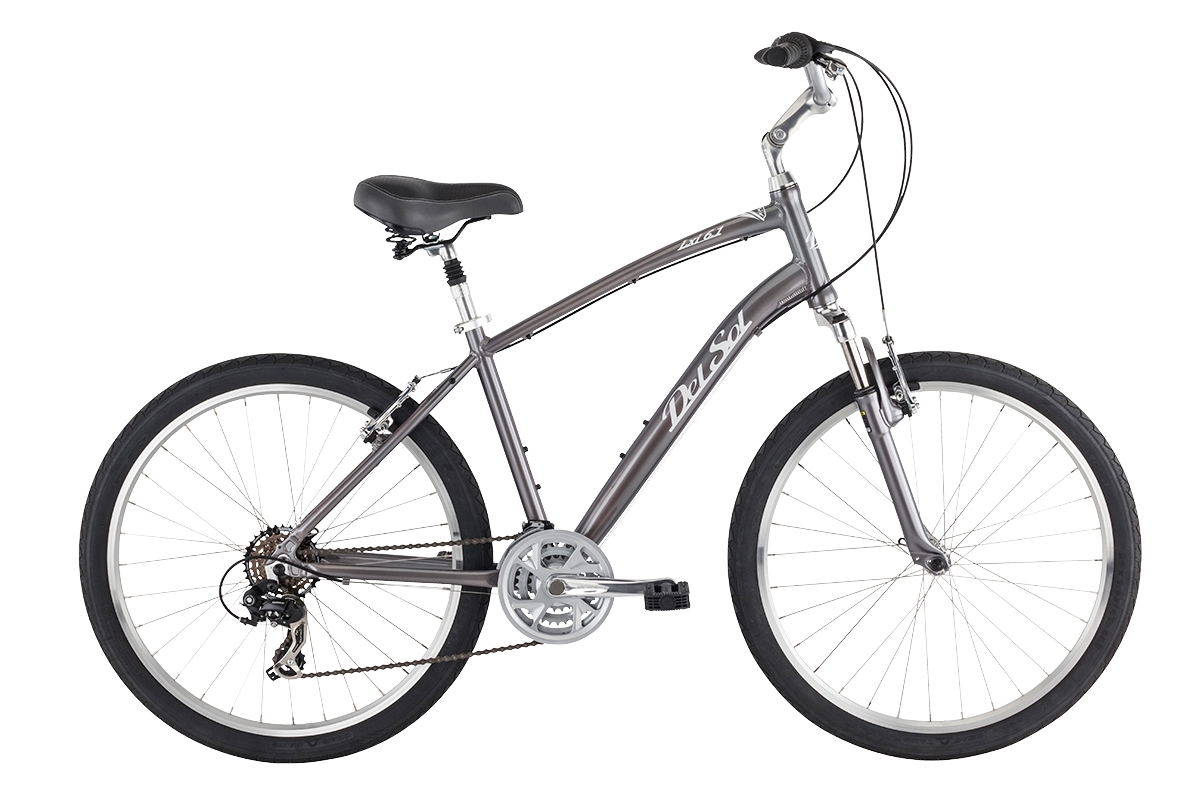

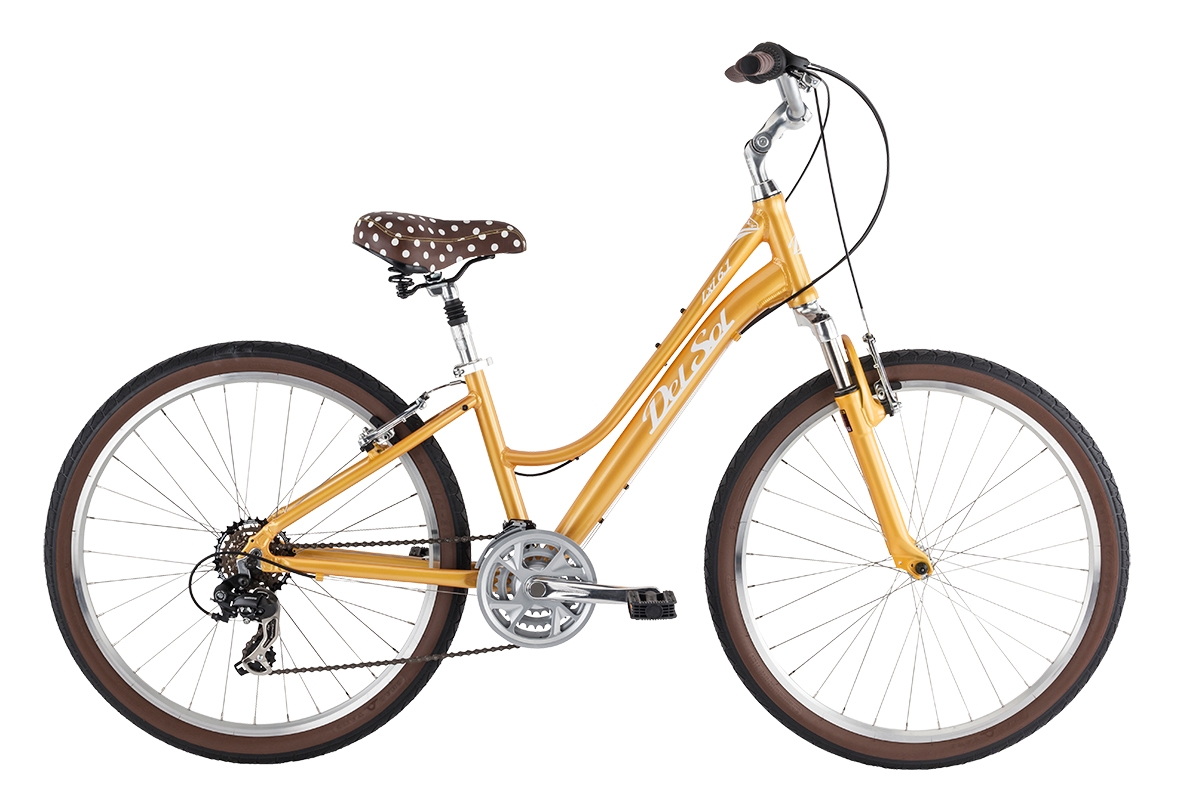

Lxi 6.1

  • Year: 2016
  • MSRP: $419.99 *
  • Sizes: 14", 17", 20"
  • Colors: Gloss Charcoal, Shiny Ruby, Butter Popcorn
  • Weight:
  • NO LONGER AVAILABLE

The LXI 6.1, features Del Sol’s exclusive upright comfort frame, 21 speeds and smaller 26" wheels. The plush suspension seat post, smaller wheels and fewer speeds appeal to a broader range of short-distance riders.

FEATURES

  • Del Sol Lightweight 6061 aluminum exclusive upright comfort frame
  • Ultra-compliant 50mm travel suspension fork
  • Shimano 21 speed Tourney deraileurs with Revo twist shifters
  • Custom Del Sol comfort plush saddle with suspension seat post
  • Adjustable angle stem and lightweight alloy handlebar
  • Lightweight 32h alloy wheelset with quick release
  • Smooth rolling 26-inch all-purpose tires on double-wall alloy rims
SPECIFICATIONS
Frame Components
Frame Lxi 26" Step-Thru Comfort 6061 T6 oversized aluminum frame
Fork Del Sol 420-E, 50mm travel
Headset 1 1/8" Threaded
Drivetrain
Cranks SR Suntour XCC 172, 42/32/22
Bottom Bracket Sealed cartridge
Chain KMC Z51
Front Derailleur Shimano TX-50
Rear Deralleur Shimano TX-35
Derailleur Shifter Shimano Revo, 7 speed
Pedals Comfort w/Kraton rubber inserts
Wheels
Tires H-460, 26 x 1.95"
Wheels/Rims DH-18 32h rims, alloy cassette hubs, stainless steel spokes
Freewheel/Cassette Shimano HG-20, 7 speed cassette, 12-32
Braking System
Brakes Alloy direct pull w/ linear spring
Brake Levers Tektro CL-530
Other Components
Grips Comfort Dual density
Handle Bar Steel riser bar, 80mm rise, 680mm width, 25.4mm clamp
Stem Forged alloy quill, adjustable rise
Seat Del Sol Comfort
Seat Post Alloy suspension, 27.2 x 300mm
Seat Clamp Alloy 31.8mm quick release
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
14 ST 70.5° 72.5° 561mm (22.1") 356mm (14") 437mm (17.2") 70mm (2.8") 1041mm (41") 648mm (25.5")
17 ST 70.5° 72.5° 579mm (22.8") 432mm (17") 437mm (17.2") 70mm (2.8") 1062mm (41.8") 658mm (25.9")
14 70.5° 72.5° 523mm (20.6") 356mm (14") 437mm (17.2") 70mm (2.8") 1036mm (40.8") 681mm (26.8")
17 70.5° 72.5° 536mm (21.1") 432mm (17") 437mm (17.2") 70mm (2.8") 1062mm (41.8") 737mm (29")
20 70.5° 72.5° 559mm (22") 508mm (20") 437mm (17.2") 70mm (2.8") 1069mm (42.1") 762mm (30")

RESOURCES

Owner's manual: Bike Manual PDF (Opens in a new window)

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
