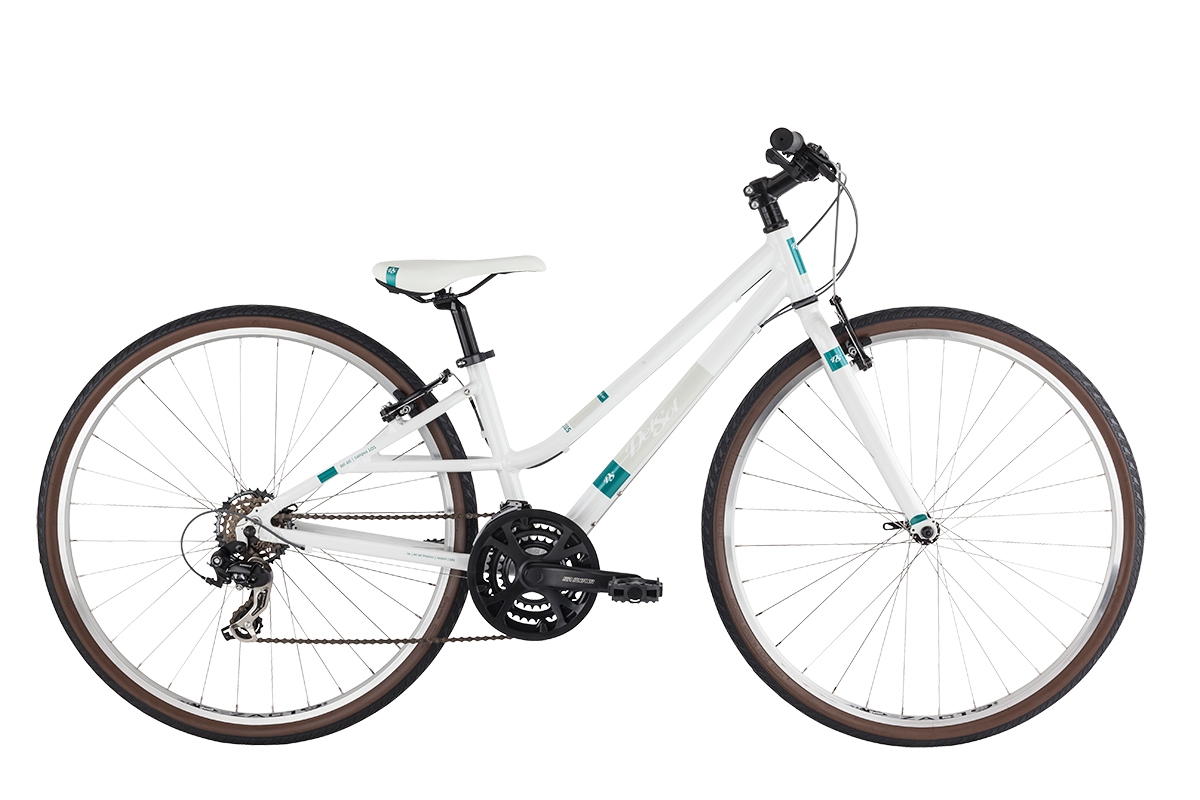

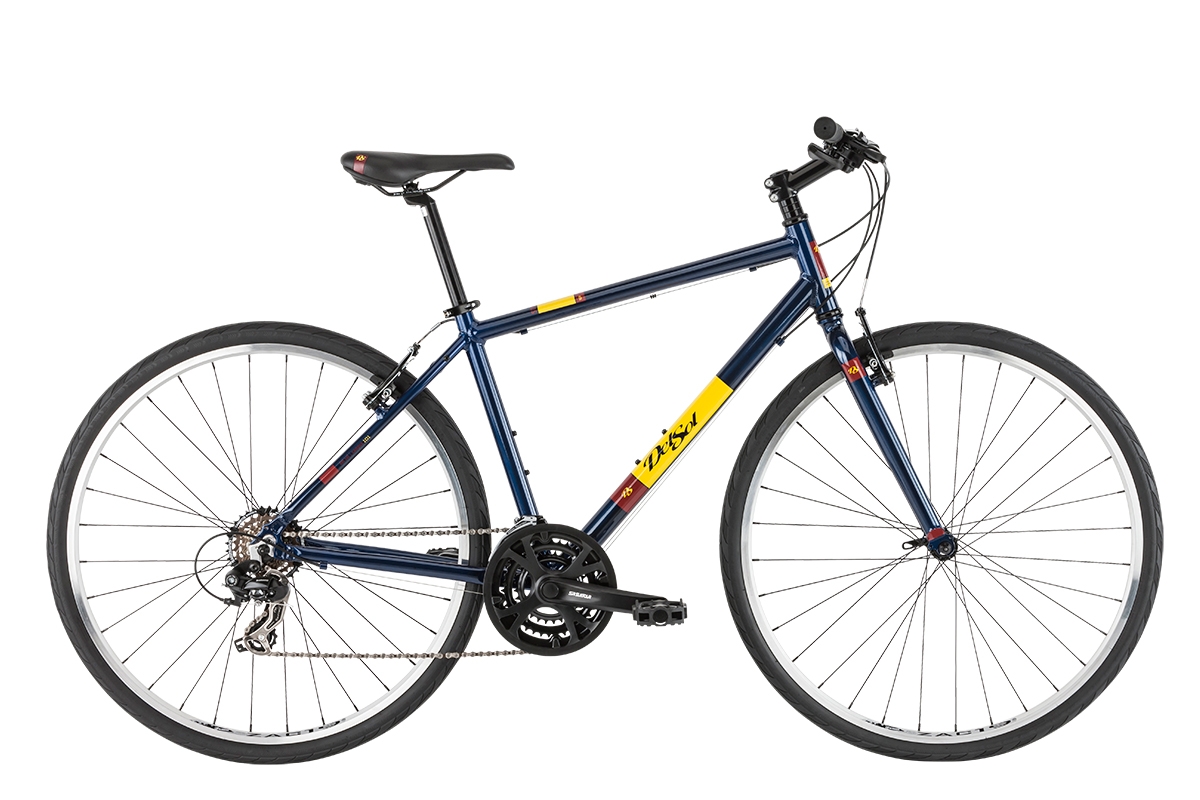

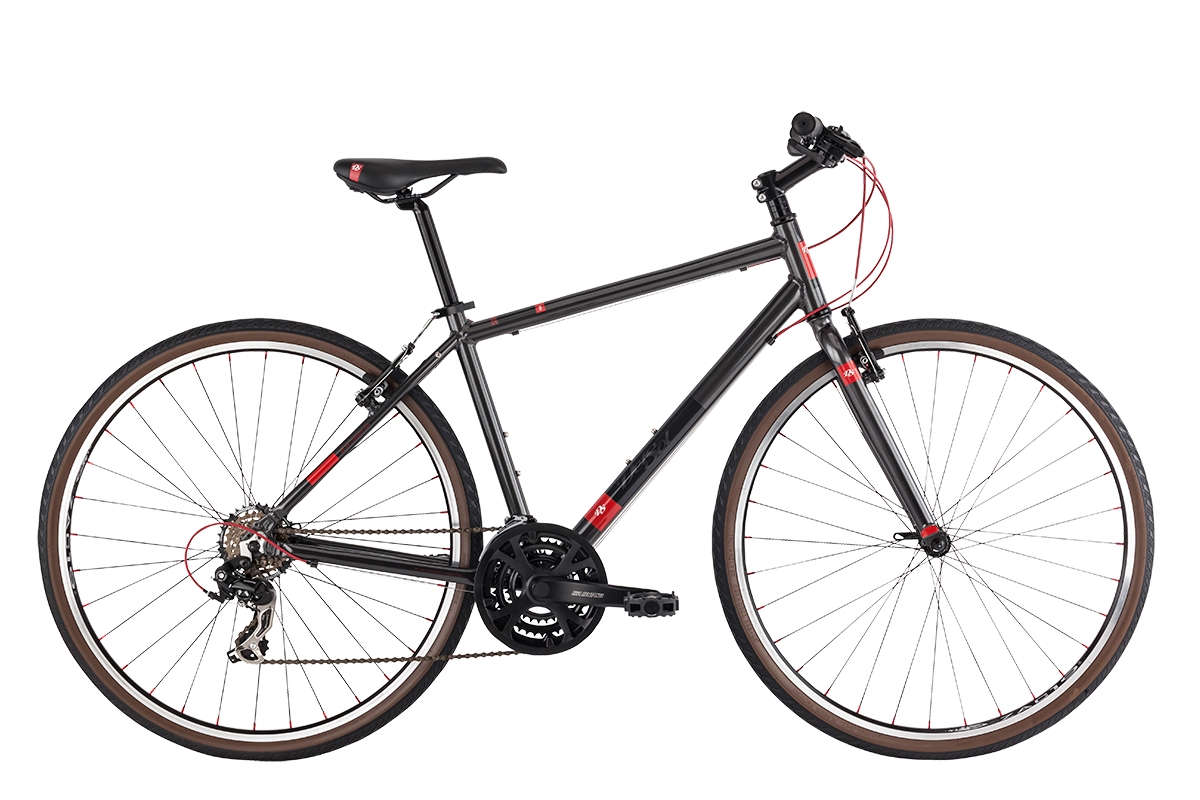

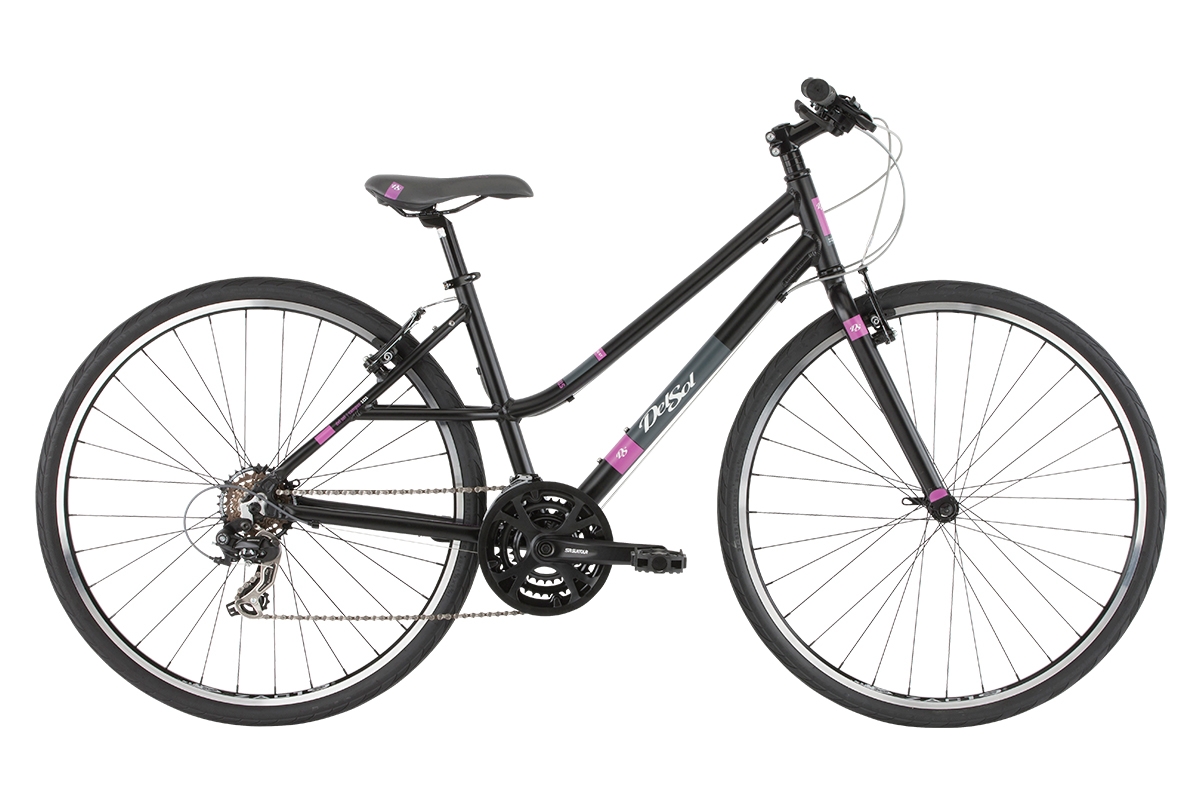

Campus 101

  • Year: 2016
  • MSRP: $379.99 *
  • Sizes: 14", 16", 18", 20", 22"
  • Colors: Battle Grey, Navy, Pearl White, SG Black
  • Weight:
  • NO LONGER AVAILABLE

The 21-speed Del Sol Campus 101 is lightweight, adjustable and with new paint options—more stylish than ever! Quickly roll to class, to your best friend’s dorm or go hit the trails to blow off that post-exam steam. The Campus 101 is a co-ed bike; featuring new options for both men and women.

FEATURES

  • Del Sol custom lightweight 6061 alloy Campus frame
  • 4130 chromoly fork
  • Shimano 21 speed Tourney deraileurs with EZ Fire shifters
  • Plush Del Sol Campus saddle
  • Lightweight alloy handlebar and stem
  • Lightweight 32h alloy wheelset with quick release
  • Great handling and fast rolling 35c tires
SPECIFICATIONS
Frame Components
Frame Campus 700c 6061 T6 oversized aluminum frame
Fork Rigid cromoly
Headset 1 1/8" threadless
Drivetrain
Cranks SR Suntour XCC 208, 48/38/28
Bottom Bracket Sealed cartridge
Chain KMC Z51
Front Derailleur Shimano TX-51
Rear Deralleur Shimano TX-35
Derailleur Shifter Shimano EF-40, 7 speed
Pedals Nylon City
Wheels
Tires Kenda Komfort Kruiser, 26 x 2.125"
Wheels/Rims Weinmann Zac 19 32h rims, alloy cassette hubs, stainless steel spokes
Freewheel/Cassette Shimano HG-20, 7 speed cassette, 12-32
Braking System
Brakes Alloy direct pull w/ linear spring
Brake Levers Shimano EF-40
Other Components
Grips City Dual density
Handle Bar Alloy riser bar, 25mm rise, 680mm width, 31.8mm clamp
Stem Forged alloy, 10 degree rise
Seat Del Sol City
Seat Post Alloy micro adjust, 27.2 x 350mm
Seat Clamp Alloy 31.8mm quick release
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
14 ST 70.5° 74° 546mm (21.5") 356mm (14") 450mm (17.7") 70mm (2.8") 1041mm (41") 625mm (24.6")
17 ST 71° 73° 564mm (22.2") 432mm (17") 450mm (17.7") 70mm (2.8") 1049mm (41.3") 638mm (25.1")
14 70.5° 74° 546mm (21.5") 356mm (14") 450mm (17.7") 70mm (2.8") 1041mm (41") 673mm (26.5")
16 70.5° 74° 551mm (21.7") 406mm (16") 450mm (17.7") 70mm (2.8") 1046mm (41.2") 686mm (27")
18 71° 73° 564mm (22.2") 457mm (18") 450mm (17.7") 70mm (2.8") 1049mm (41.3") 711mm (28")
20 71° 73° 584mm (23") 508mm (20") 450mm (17.7") 70mm (2.8") 1067mm (42") 737mm (29")
22 72.5° 73° 599mm (23.6") 559mm (22") 450mm (17.7") 70mm (2.8") 1067mm (42") 762mm (30")

RESOURCES

Owner's manual: Bike Manual PDF (Opens in a new window)

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
