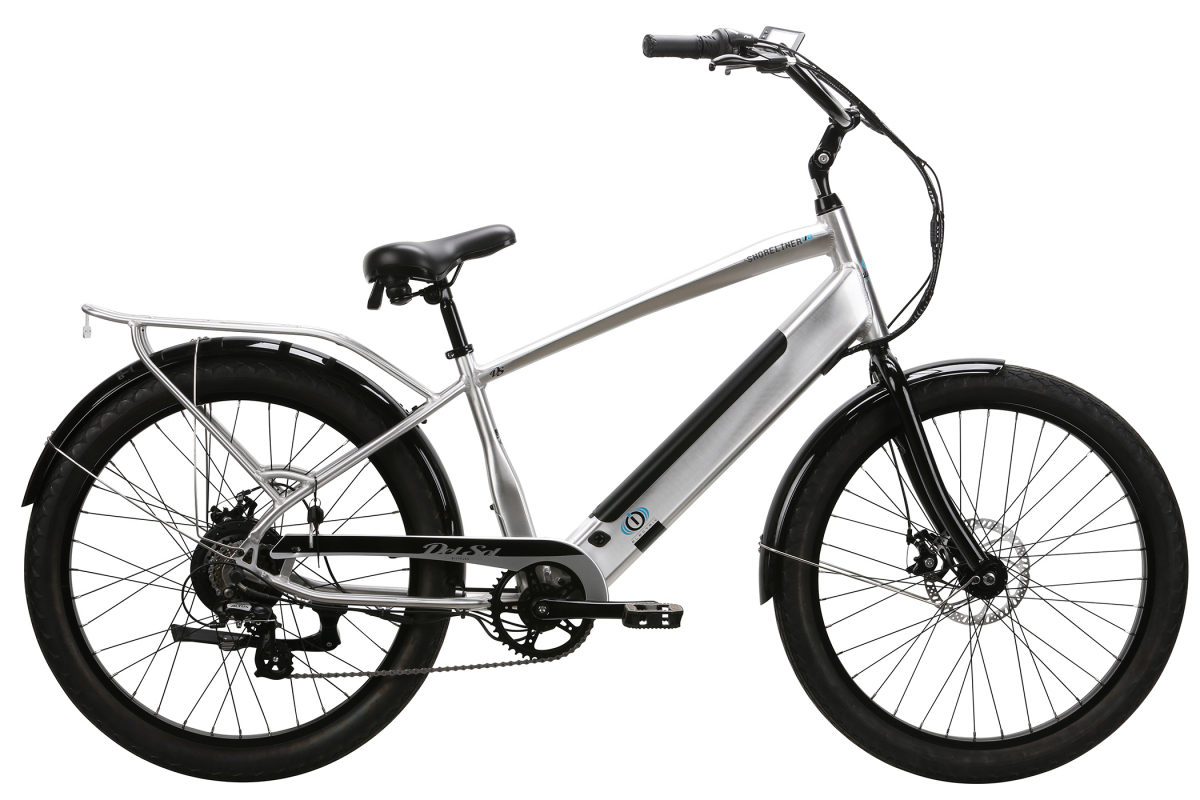

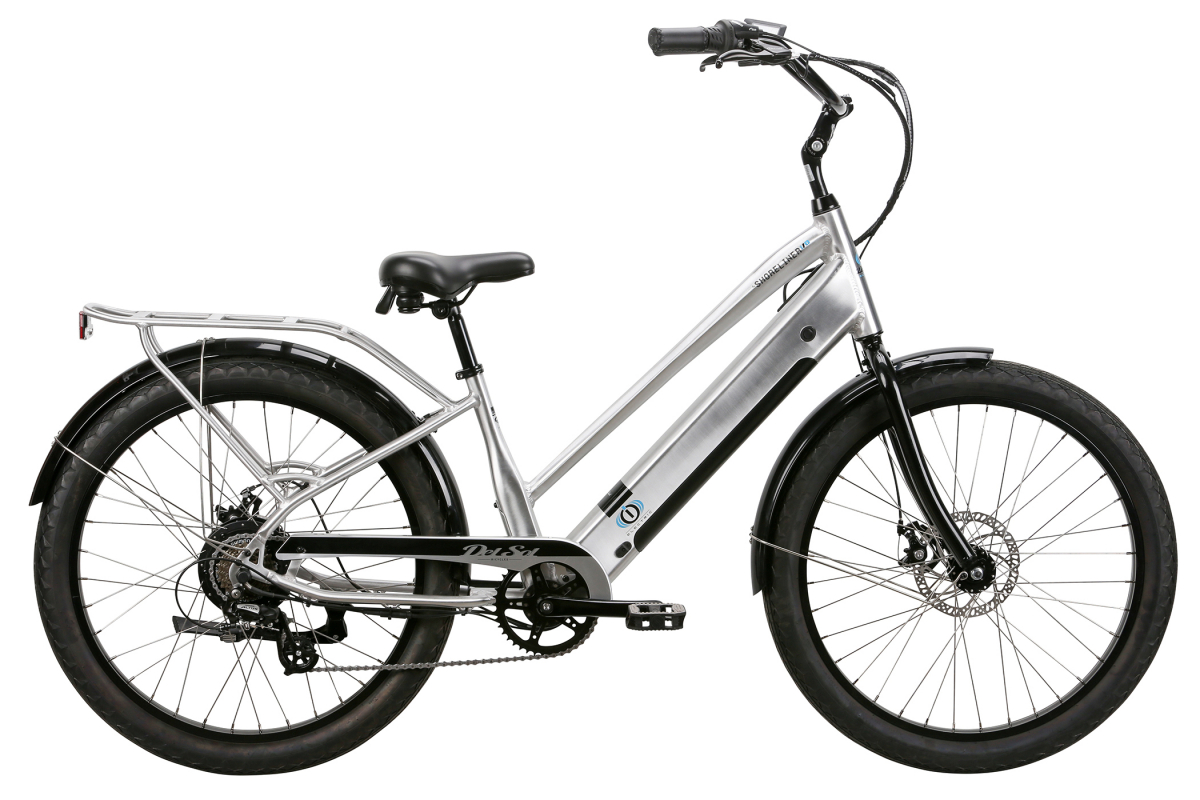

Shoreliner IO T
| Year | 2021 |
|---|---|
| MSRP | $1,699.99 * |
| Sizes | 17", 15.5" |
| Colors | Brushed Alloy, Americano |
| Weight | 57 lbs |
Cruisers -- the simple, approachable bike that are grab 'n go, nothing needed other than the ability to pedal. E-bikes -- the way of the future. Cruiser e-bike? Yep, the ultimate. And that's exactly what the Shoreliner i/O is: the approachable, simple, grab-'n-go e-bike with high-tech features available in a no-tech-necessary manner of simplicity. It's ready to make your life easier. Just grab, and go, really that simple.
FEATURES
- Cruiser looks with e(asy)-bike simplicity make for an approachable, accessible bike for around town
- Throttle assist makes getting going from a stop sign a cinch
- Hand-Holder e-bike specific handle on saddle makes moving the Shoreliner i/O much easier
- Fully internal downtube battery provides generous 522Wh/14.5Ah capacity
- Classic raked fork complements cruiser styling
- Class 2 e-bike: throttle only or pedal assist up to 20mph
- Bafang 350W motor
| Frame Components | |
|---|---|
| Frame | Shoreliner i/O | 6061 heat-treaded aluminum | Tig-welded construction | Fully internal battery | Internal e-bike wiring | 73mm threaded BSA bottom bracket shell | I.S. disc tab | Hub-drive specific 136mm spacing |
| Fork | Shoreliner | Classic raked steel | 1-1/8" threaded | I.S. 6-bolt disc | 3/8" x 100mm spacing | Bolt-on |
| Headset | 1-1/8" integrated | Threadless |
| Drivetrain | |
| Cranks | 3-piece | Forged alloy | 42T chainring with colorway-matched chainguard |
| Bottom Bracket | 73mm threaded BSA shell | JIS square taper | 131.5mm spindle length |
| Chain | KMC Z7 | 7-speed |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Altus M310 | 7-speed |
| Derailleur Shifter | Shimano Revo | 7-speed |
| Drive Unit | See rear hub spec |
| Battery | 36V/14.5Ah | 522Wh | Fully-integrated within down tube |
| Pedals | Boardwalk cruiser | Shock-absorbing Kraton inserts |
| Wheels | |
| Tires | Cruiser 26 x 2.5" |
| Wheels/Rims | Alloy | Width (internal): 29.4mm | 36h |
| Front Hub | 3/8" x 100mm | I.S. 6-bolt disc mount | 36h |
| Rear Hub | Bafang 350W motor | I.S. 6-bolt disc mount | 136mm spacing | 36h |
| Freewheel/Cassette | Shimano | 14-28T | 7-speed |
| Spokes | Stainless | 13g |
| Braking System | |
| Brakes | Tektro MD M280 Mechanical Disc |
| Brake Levers | Alloy | Linear Pull |
| Other Components | |
| Grips | Del Sol foam | Stitched cover |
| Handle Bar | Laid-back Cruiser | 700mm Wide |
| Stem | Quill | Alloy | Ï•25.4 bar bore | 90mm length |
| Seat | Del Sol Couch saddle | Dual elastomers | Del Sol Hand-Holder e-bike specific handle |
| Seat Post | Alloy | 27.2 x 350mm |
| Seat Clamp | Alloy | 31.8mm |
| Extras | Kickstand | Integrated Rack | Full-Coverage Fenders | Charger & cables |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mens | 70° | 72.1° | 667mm (26.2") | 430mm (16.9") | 779mm (19.1") | 50mm (1.9") | 1201mm (47.3") | 779mm (30.6") | 459mm (18") | 90mm | 700mm | 170mm | |||
| ST | 70° | 72.1° | 654mm (25.7") | 394mm (15.5") | 590mm (19.1") | 50mm (1.9") | 1188mm (46.8") | 590mm (23.2") | 450mm (17.7") | 90mm | 700mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
