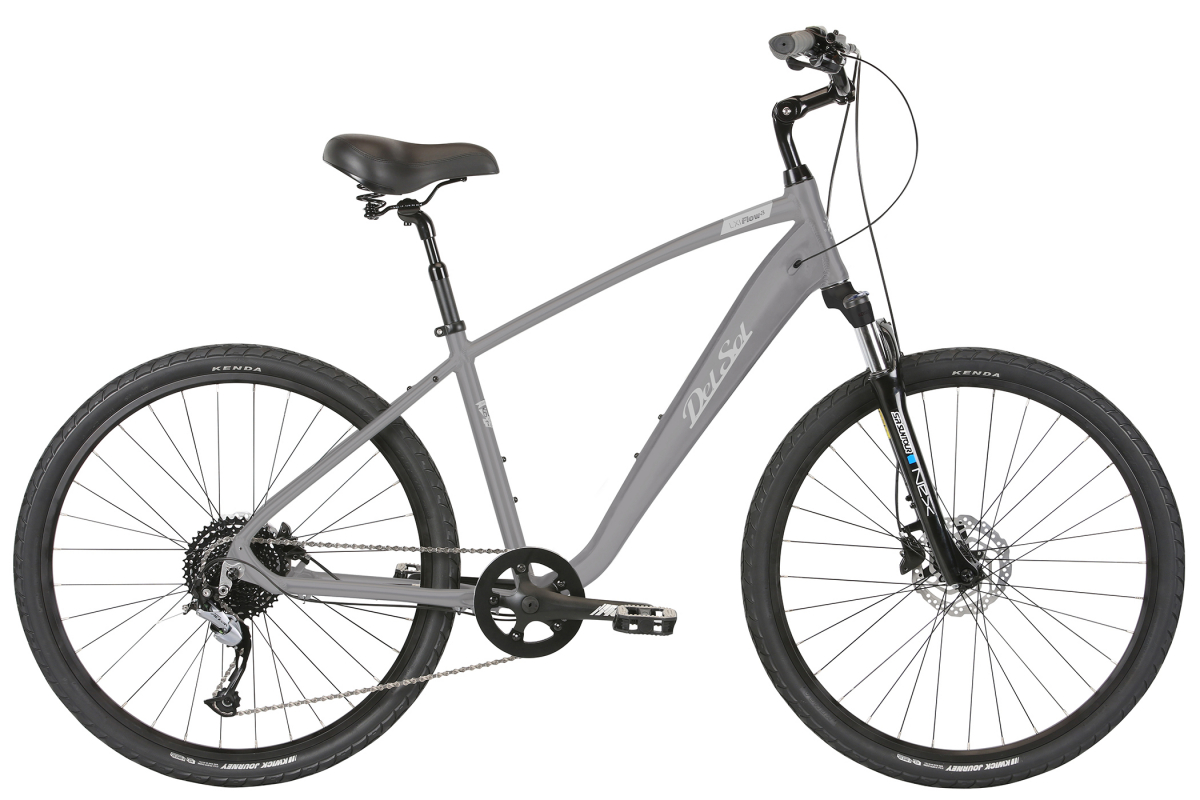

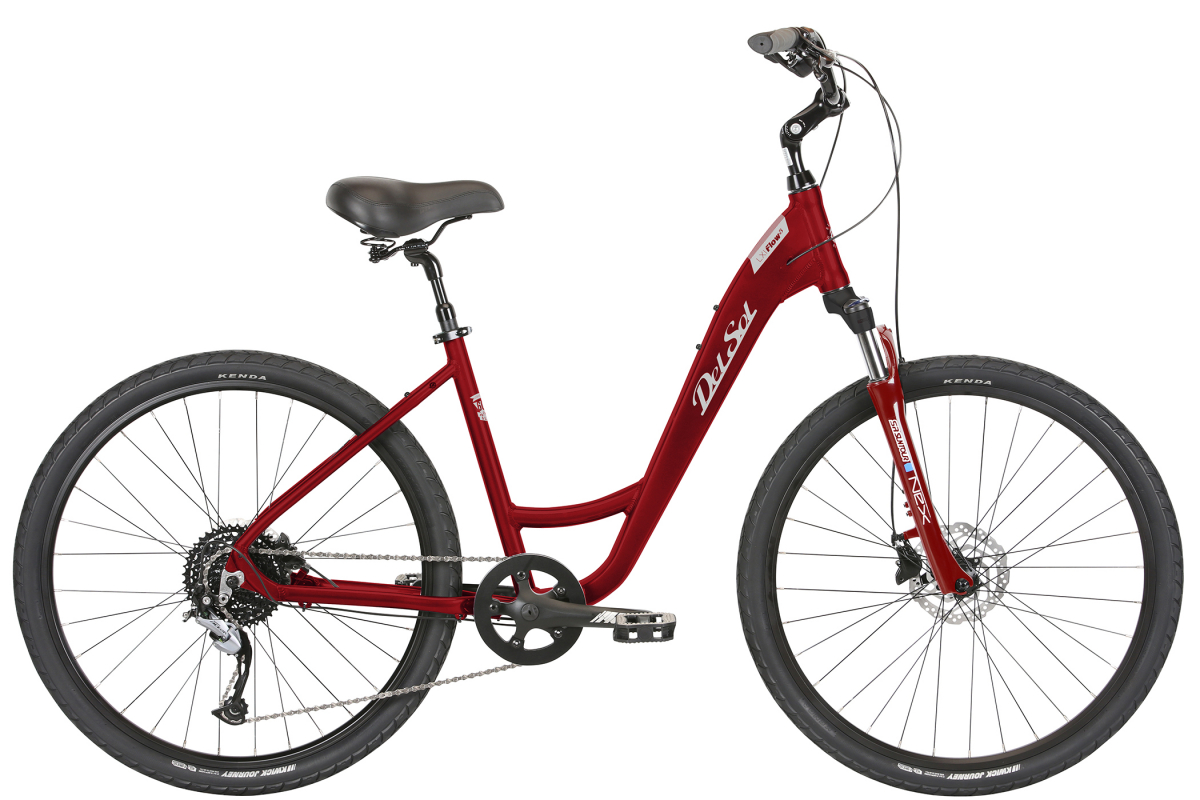

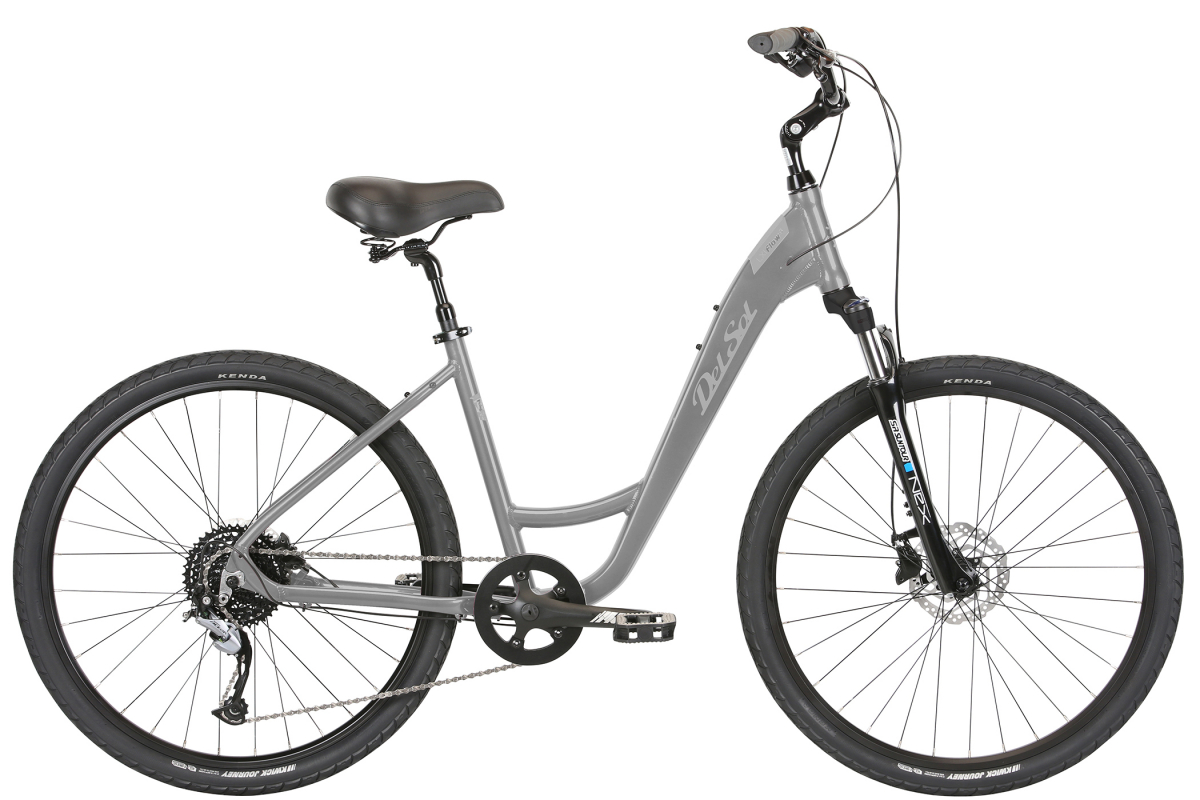

Everything about the LXI Flow 3 bike speaks to maximum comfort: the softest suspension fork (that you can lock out too if you want to ride quickly on smooth surfaces), a wide range of easy gears, excellent very predictable and strong brakes, and the best seat and seatpost of the lineup. It really is the king of comfort, and with such an easy riding position, it makes going on a bike ride an absolutely enjoyable experience, as it should be.
FEATURES
- Ultimate comfort design: adjustable stem, high-rise handlebars, quality suspension seatpost, fork, and comfy saddle
- Upright posture provides excellent visibility and easy-to-handle ride characteristic
- Generous standover and relaxed geometry make on/off bike transitions seamless
- Quality Shimano 1x9 wide-range drivetrain and excellent hydraulic disc brakes make for exceptional durability and minimal maintenance
- Relaxed headtube angle provides more predictable and steady steering with nothing sneaking up on you
- Relaxed seat tube angle brings the rider position less over the bars and more evenly positioned, with better posture
- Dual-chainguard design prevents chain from dropping and protects clothing
| Frame Components | |
|---|---|
| Frame | LXI Flow | Heat-treated 6061 aluminum | Tig-welded construction | Easygoing geometry | Size-Specific Wheel Design | 68mm threaded BSA bottom bracket shell | I.S. disc brake mount | 135mm quick-release spacing |
| Fork | SR Suntour | SF20 NEX HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake | 100mm quick-release spacing |
| Headset | 1-1/8" Integrated | Threaded |
| Drivetrain | |
| Cranks | 3-piece | Forged alloy | Steel 38T chainring with dual-guide design | 170mm length |
| Bottom Bracket | 68mm threaded BSA shell | JIS square taper | Sealed cartridge |
| Chain | KMC X9 | 9-speed |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Alivio M3100 | 9-speed | Long cage |
| Derailleur Shifter | Shimano Acera Rapidfire Plus | 9-speed | Optical gear display |
| Pedals | Causeway flattoppers | Shock-absorbing Kraton inserts |
| Wheels | |
| Tires | Kenda Kwick Journey; S: 26 x 1.75"; M: 27.5 x 1.75"; L: 29 x 1.77" |
| Wheels/Rims | Alloy | Width (internal): 19mm Double-wall | 32h |
| Front Hub | Shimano Tourney TX505 | 100mm quick release | Center Lock disc | 32H |
| Rear Hub | Shimano Tourney TX505 | 135mm quick release | Center Lock disc | HG freehub | 32h |
| Freewheel/Cassette | 9-speed | Wide-range | 11-40T |
| Spokes | Stainless | 14g |
| Braking System | |
| Brakes | Shimano MT201 Hydraulic Disc | Post mount | 160mm Center Lock rotors |
| Brake Levers | Shimano MT201 Hydraulic Disc |
| Other Components | |
| Grips | Del Sol Ergo Comfort | Dual Density |
| Handle Bar | Alloy Riser Bar | Ï•25.4 bar bore | 80mm rise | 15-degree wrist-saver sweep | 635mm width |
| Stem | Quill | Alloy | Adjustable 0-25° rise | ϕ25.4 bar bore |
| Seat | Del Sol Deluxe Coach | Supportive-tuned foam | dual-spring design |
| Seat Post | Alloy | Suspension | Easy-adjust head | 27.2 x 300mm |
| Seat Clamp | Alloy | Quick release | Ï• 31.8mm |
| Extras | Rack & Fender Mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 15 ST | 68° | 71° | 575mm (22.6") | 381mm (15") | 440mm (17.3") | 40mm (1.6") | 1078mm (42.4") | 435mm (17.1") | 635mm | 170mm | |||||
| M / 17 ST | 68° | 71° | 590mm (23.2") | 432mm (17") | 450mm (17.7") | 55mm (2.2") | 1097mm (43.2") | 444mm (17.5") | 635mm | 170mm | |||||
| S / 15 | 68° | 71° | 575mm (22.6") | 381mm (15") | 440mm (17.3") | 40mm (1.6") | 1078mm (42.4") | 759mm (29.9") | 635mm | 170mm | |||||
| M / 17 | 68° | 71° | 590mm (23.2") | 432mm (17") | 450mm (17.7") | 55mm (2.2") | 1097mm (43.2") | 799mm (31.5") | 635mm | 170mm | |||||
| L / 20 | 68° | 71° | 595mm (23.4") | 508mm (20") | 470mm (18.5") | 63mm (2.5") | 1120mm (44.1") | 852mm (33.5") | 635mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
