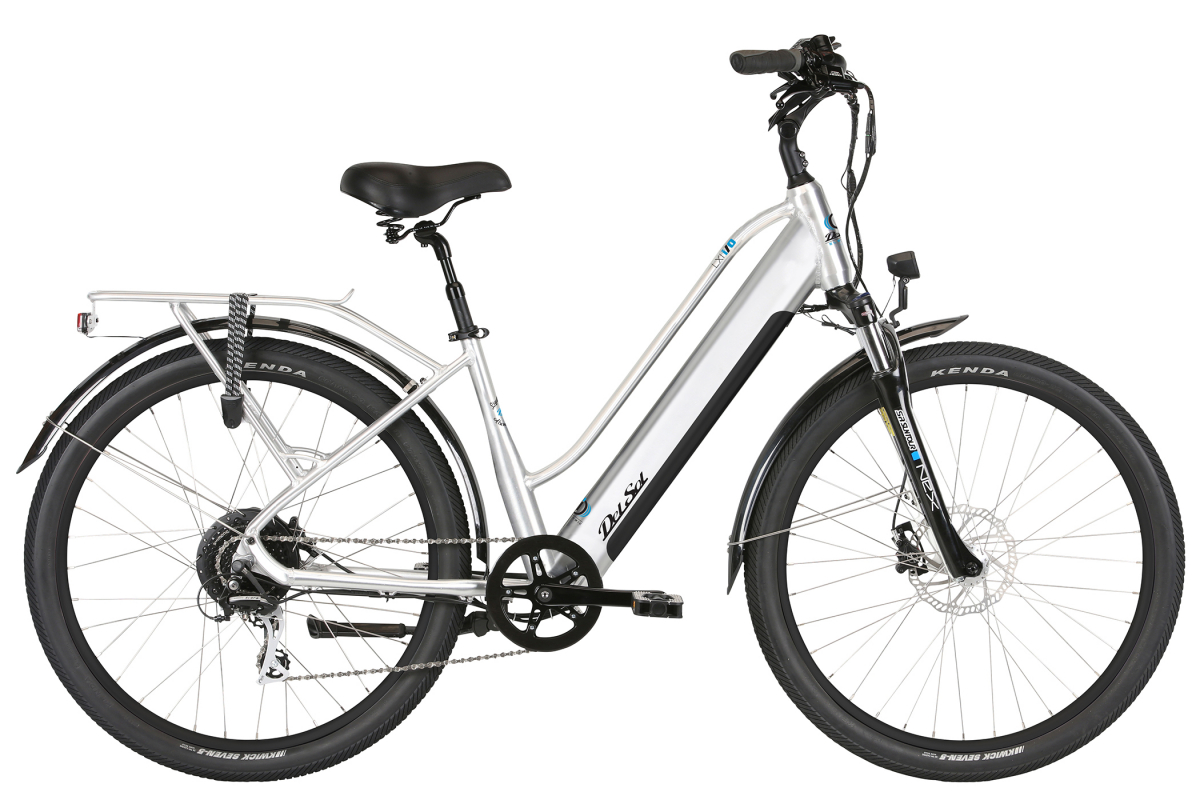

LXI IO T

  • Year: 2021
  • MSRP: $1,999.99 *
  • Sizes: S, M, L

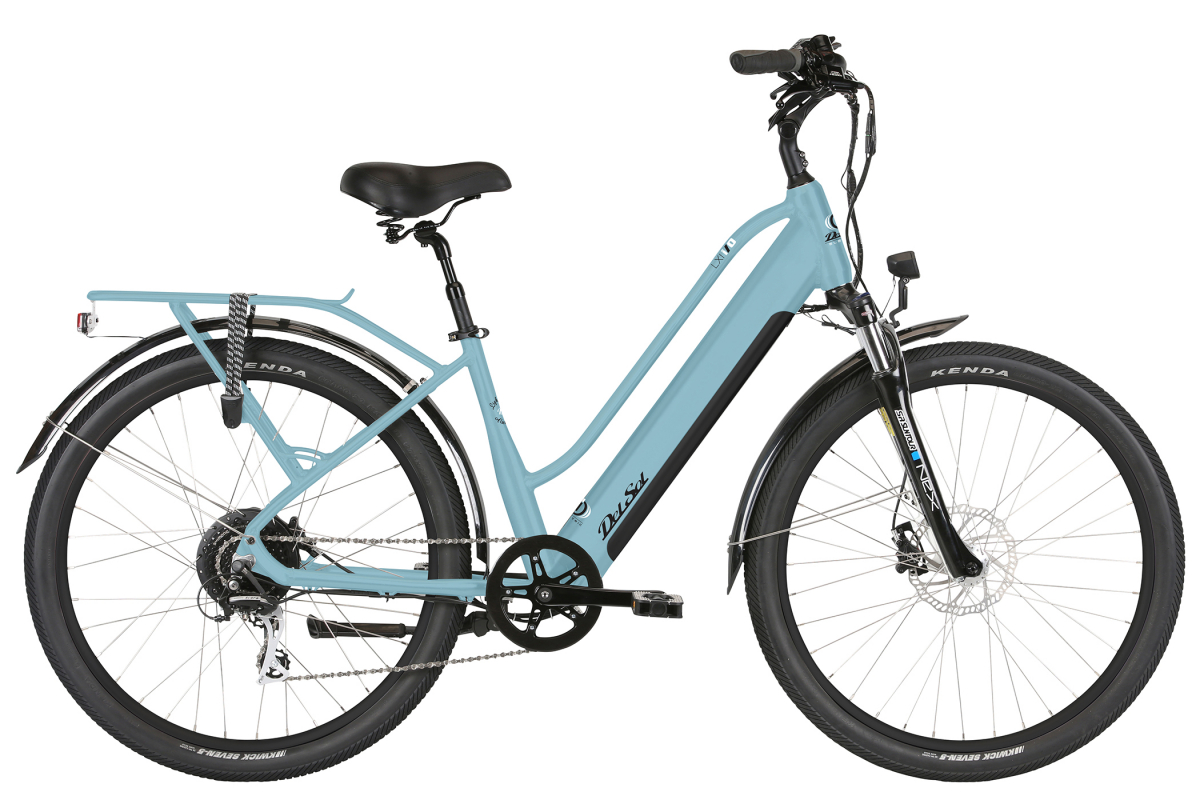

  • Colors: Black, Light Blue, Brushed Alloy
  • Weight: 54.5 lbs
  • NO LONGER AVAILABLE

OK, list of 'Dos and Don'ts' during the great Covid rap battle: Don't go to gyms, don't take public transport, don't use ride shares, don't go to concerts, don't go to sporting events, crowded public places... don't this... don't that...DO ride a bike. Get out, enjoy, zip around the neighborhood, zing your way to your socially distant work office, the grocery store during off hours... errands... More DO, less DON'T. Do the DO with the LXI T i/O -- everything needed for easy, quick transportation: built-in rack, even comes with a bungee -- even has button-activated lights, a throttle for getting up to speed, engine cut-off brakes, an easygoing 350W hub motor, fenders, kickstand.. the list goes on and it's all-inclusive. Turnkey simplicity, look no further. Everything you need, nothing you don't, at an astounding value.

FEATURES

  • Throttle allows for versatility and ease of starting when loaded down with groceries/supplies
  • Robust 8-speed drivetrain resists torque-based e-bike wear through a thicker chain
  • 14.5Ah/522Wh battery provides plenty capacity for greater distances, loaded travel, and throttle usage
  • E-bike specific Tektro HD-E350 hydraulic brakes have an engine cut-off built in for worry free e-bike riding
  • Built-in rear rack melds utilitarian simplicity with aesthetics
  • Class 2 e-bike: throttle only or pedal assist up to 20mph
SPECIFICATIONS
Frame Components
Frame LXI i/O | 6061 heat-treated aluminum | Tig-welded construction | Fully internal battery | Internal e-bike wiring | 73mm threaded BSA bottom bracket shell | Post mount disc tab | Hub-drive specific 136mm spacing
Fork SRSuntour | SF20 NEX-HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake
Headset Alloy | Threadless | Tool-free adjustable 0-70'š angle | 110mm length
Drivetrain
Cranks 3-piece | Forged alloy | 42T chainring with dual-guide design
Bottom Bracket 73mm threaded BSA shell | JIS square taper | Sealed cartridge
Chain KMC Z8.3 | 8-speed
Front Derailleur N/A
Rear Deralleur Shimano Acera M360 | 8-speed | Long cage
Derailleur Shifter Shimano Acera Rapidfire Plus | 8-speed
Drive Unit Bafang 350w Hub Motor
Battery 36V/14.5Ah | 522Wh | Fully-integrated
Pedals Comfort | Shock-absorbing Kraton inserts
Wheels
Tires Kenda Kwick Seven.5 | 27.5 x 2.2"
Wheels/Rims Alloy | Width (internal): 26.6mm | Double-wall construction | 36h
Front Hub Alloy | 100mm quick release | I.S. 6-bolt disc | 36h
Rear Hub Bafang 350W motor | I.S. 6-bolt disc mount | 136mm spacing | 36h
Freewheel/Cassette Shimano HG-31 | 11-32T | 8-speed
Spokes Stainless | 13g
Braking System
Brakes Tektro HD-E350 | E-bike specific | 180mm oversized front / 160mm rear I.S. 6-bolt rotors
Brake Levers Tektro HD-E350 hydraulic with motor cut off
Other Components
Grips Del Sol Ergo Comfort | Dual Density
Handle Bar Alloy Riser Bar, 40mm Rise, 660mm Width
Stem Alloy | Threadless | Tool-free adjustable 0-70 degree angle | 110mm length
Seat Del Sol Couch Plus saddle | Compression-tuned elastomers | Del Sol Hand-Holder e-bike-specific handle
Seat Post Alloy | Suspension | 40mm travel | 27.2 x 300mm
Seat Clamp Alloy | 31.8mm
Extras Kickstand | Alloy Rack | Full-Coverage Fenders | Front and rear lights, Charger & cables
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
14 70° 73° 600mm (23.6") 360mm (14.1") 45mm (1.8") 1128mm (44.4") 788mm (31") 407mm (16") 90mm 610mm 170mm
17 70° 73° 600mm (23.6") 435mm (17.1") 45mm (1.8") 1129mm (44.4") 819mm (32.2") 405mm (15.9") 110mm 610mm 170mm
20 70° 73° 630mm (24.8") 508mm (20") 45mm (1.8") 1160mm (45.6") 855mm (33.7") 430mm (16.97.3") 110mm 610mm 170mm

RESOURCES

Owner's manual: Bike Manual PDF (Opens in a new window)

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
