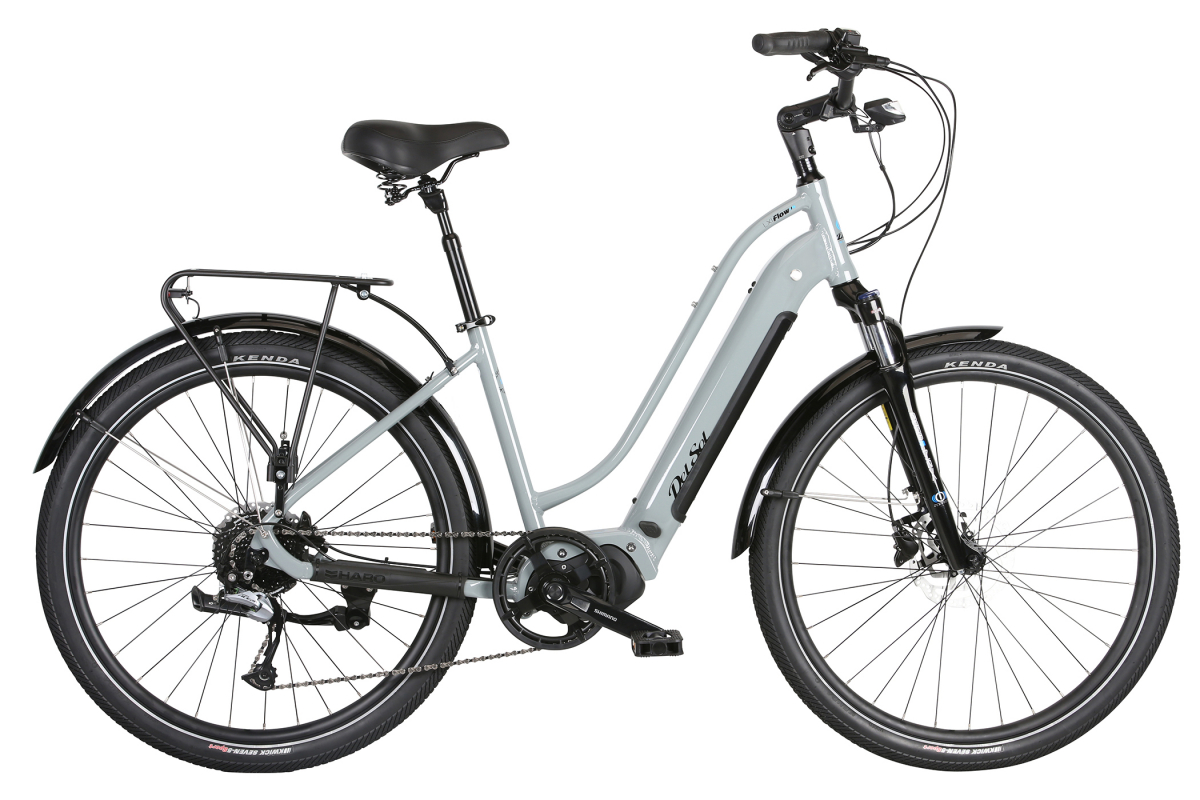

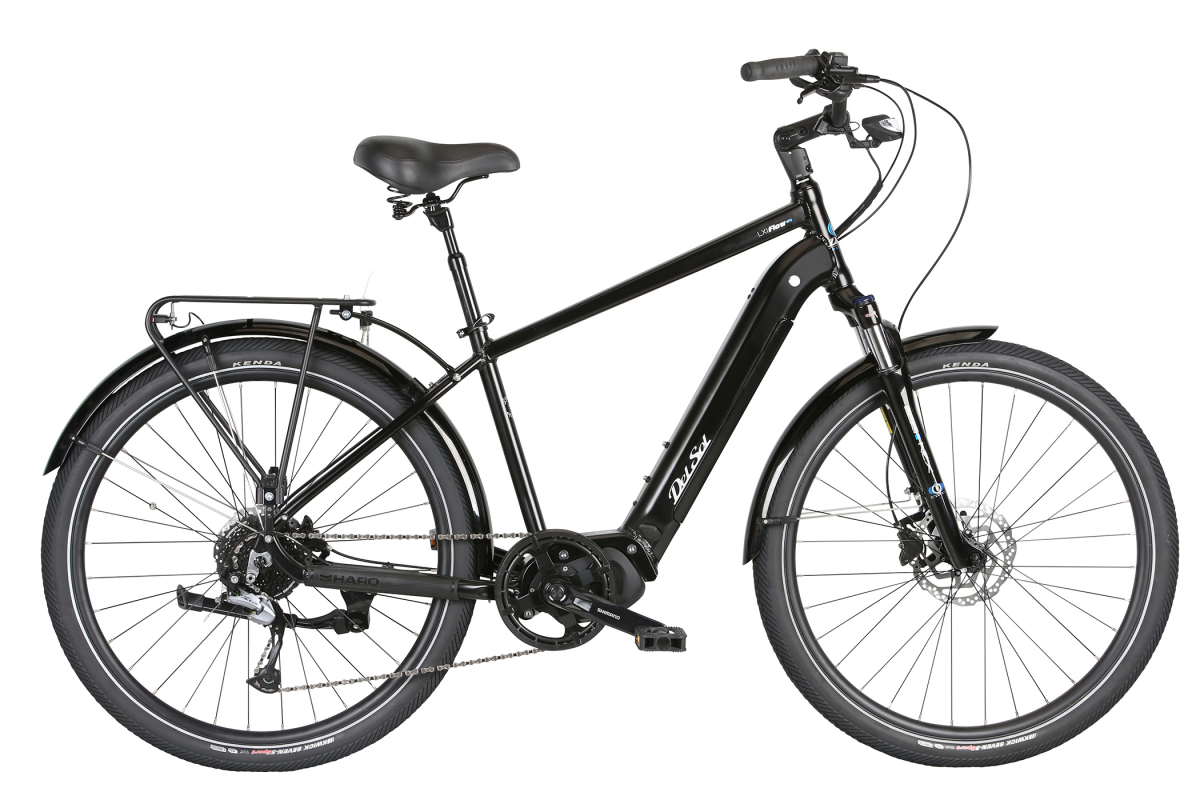

You want an e-bike, and you wanna make sure you're getting a super-quality e-bike without overpaying. Well, along comes the LXI Flow i/O. Full Shimano components -- even hydraulic brakes -- accompany a proven, Shimano E5000 mid-drive, pedal-assist motor. Refined geometry with easy-access standover heights make the LXI Flow i/O the ultimate e-bike for modern mobility that doesn't sacrifice on ultimate comfort.
FEATURES
- Full Shimano quality componentry and E5000 pedal-assist, mid-drive motor are time proven and the leading name brand in e-bikes
- Upright posture ensures visibility and makes for light actuation, easy steering
- Generous standover heights and high-rise handlebars provide irrefutable comfort and ease of mounting/dismounting
- Bright, wide-angle lights with CREE high-definition bulbs provide easy-to-use, even easier-to-see lighting
- Easy-steer handling ensures a light touch
- Class 1 e-bike: pedal assist only, up to 20mph
| Frame Components | |
|---|---|
| Frame | LXI Flow i/O | 6061 heat-treaded aluminum | Tig-welded construction | Buttressed down tube frame | Fully internal battery | Angle-correct mid-drive motor mount | Internal e-bike wiring | 73mm threaded BSA bottom bracket shell | Post mount disc tab | 135m |
| Fork | SRSuntour | SF20 NEX-HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake |
| Headset | FSA No. 10 | 1-1/8" | Threadless |
| Drivetrain | |
| Cranks | Shimano FC-E5010 crank arm set for E5000 mid-motor |
| Bottom Bracket | N/A |
| Chain | KMC E9-Sport | 9-speed |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Acera M3100 | Shadow Design | Long cage | 9-speed |
| Derailleur Shifter | Shimano Acera Rapidfire Plus | 9-speed |
| Battery | 36V | 504Wh | Fully-integrated within down tube |
| Pedals | Comfort | Shock-absorbing Kraton inserts |
| Wheels | |
| Tires | Kenda Kwick Seven.5 | 27.5 x 2.2" |
| Wheels/Rims | Alloy | Width (internal): 25mm | Doulbe-wall construction | 32h |
| Front Hub | Shimano TX-505 | 100mm quick release | Center Lock disc mount | 32h |
| Rear Hub | Shimano TX505 | 135mm quick release | Center Lock disc mount | HG freehub | 32h |
| Freewheel/Cassette | Shimano HG200-9 | 11-36T | 9-speed |
| Spokes | Stainless | 13g |
| Braking System | |
| Brakes | Shimano MT200 Hydraulic Disc | Post mount | 180/160mm Center Lock rotors |
| Brake Levers | Shimano MT200 | Alloy | Hydraulic |
| Other Components | |
| Grips | Del Sol Ergo Comfort with Gel | Dual Density |
| Handle Bar | LXI Flow i/O: Alloy | 85mm rise | 54° sweep | 630mm wide; LXI Flow i/O ST: Alloy | 40mm rise | 40° sweep | 615mm wide |
| Stem | Alloy | Ï•31.8 bar bore | Adjustable angle | Integrated light holder |
| Seat | Del Sol Couch Plus saddle | Compression-tuned elastomers | Del Sol Hand-Holder e-bike-specific handle |
| Seat Post | Alloy | Suspension | 40mm travel | 27.2 x 350mm |
| Seat Clamp | Alloy | 31.8mm |
| Extras | Kickstand | Integrated Rack | Full-Coverage Fenders | Charger & cables |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 68° | 71° | 595mm (23.4") | 356mm (14") | 465mm (18.3") | 45mm (1.8") | 1120mm (44.1") | 762mm (30") | 384mm (15.1") | 90mm | 630mm | 170mm | |||
| 17 | 68° | 71° | 595mm (23.4") | 435mm (17.1") | 465mm (18.3") | 45mm (1.8") | 1120mm (44.1") | 800mm (31.5") | 379mm (14.9") | 90mm | 630mm | 170mm | |||
| 20 | 68° | 71° | 605mm (23.8") | 508mm (20") | 465mm (18.3") | 45mm (1.8") | 1131mm (44.5") | 835mm (32.8") | 386mm (15.2") | 110mm | 630mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
