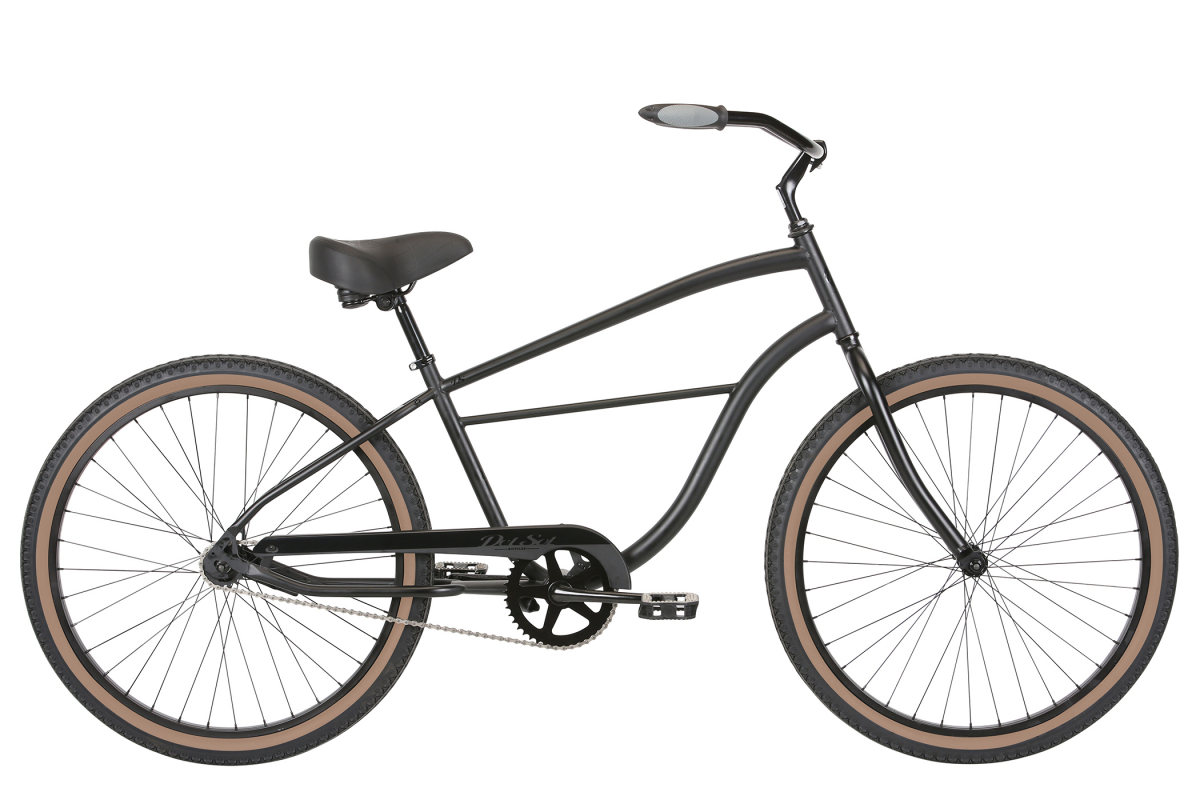

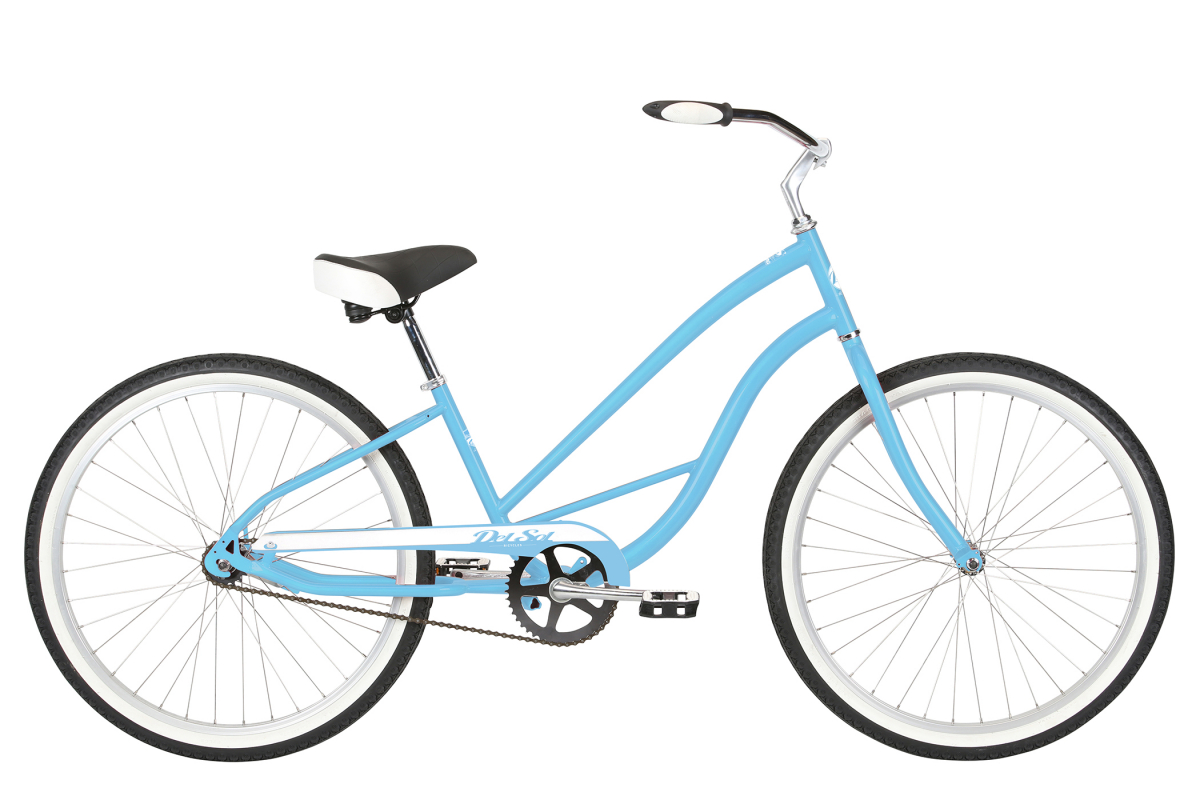

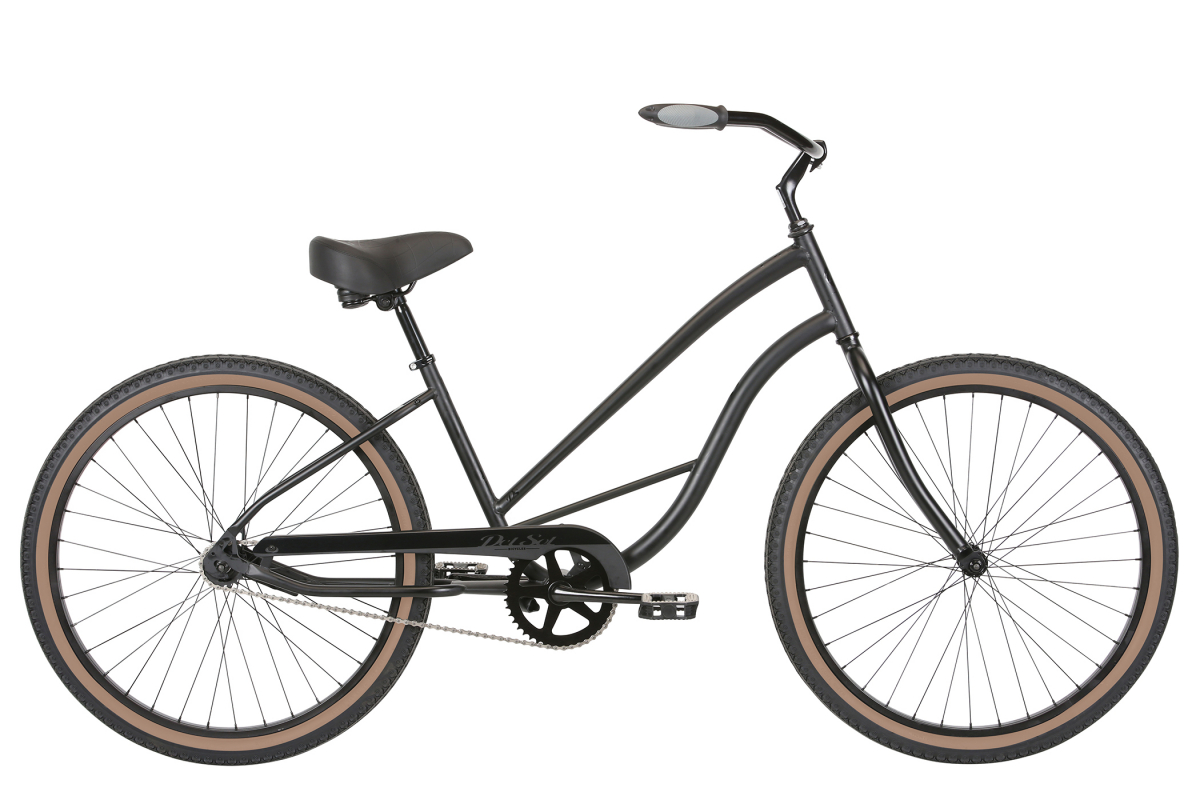

Day-in, day-out surf culture through the laidback simplicity of a cruiser emblematic of Del Sol's SoCal/Haro BMX herritage. From flip flops to checkered Vans to no shoes at all (no shoes = the preferred footwear of North County San Diego) the Cantina's your wingman (or wingwoman too!) for all things beach going, even if beach going isn't even on the menu. It's more of a mindset, and appreciation for the easygoing lifestyle that gave birth to Del Sol -- long live the simple, 1-speed steel cruiser -- here's to you, Cantina cruiser, may we all live like you.
FEATURES
- Pedal-forward positioning creates foot-down ease at stops
- Low-slung frame design makes for easy mounting and dismounting
- Alloy wheels make for lightweight, rust-free durability
- Coaster brake makes for durable, simple stopping
- Color-matched chainguide prevents clothing or shoelaces getting munched by chain
- Del Sol elastomer-tuned Lounge Chair provides cush comfort for the long haul
| Frame Components | |
|---|---|
| Frame | Cantina | Classic steel | Tig-welded construction | Easygoing geometry | Pedal-forward design | American bottom bracket shell | Coaster-brake mount | Classic 110mm spacing | Cartridge kickstand mount |
| Fork | Classic raked cruiser | Steel | 1" threaded |
| Headset | 1" threaded |
| Drivetrain | |
| Cranks | 1-piece | Steel | 44T | 170mm length |
| Sprocket | Steel | 18T | Cog |
| Bottom Bracket | American |
| Chain | KMC Z1 Wide |
| Front Derailleur | N/A |
| Rear Deralleur | N/A |
| Derailleur Shifter | N/A |
| Pedals | Boardwalk cruiser | Shock-absorbing Kraton inserts |
| Wheels | |
| Tires | Kenda Kruiser | 26 x 2.125" | Matte Black & Matte Olive: Skinwall | Sky Blue & Lime: Whitewall |
| Wheels/Rims | Alloy | Width (internal): 24mm | 36 hole |
| Front Hub | Steel | 3/8" x 100mm | Bolt-on | 36h |
| Rear Hub | Steel | 3/8" x 110mm | Bolt-on | Coaster brake |
| Spokes | Stainless | 14g |
| Braking System | |
| Brakes | Coaster brake |
| Brake Levers | N/A |
| Other Components | |
| Grips | Del Sol Ergo Cruiser |
| Handle Bar | Laid-back Cruiser | 700mm wide |
| Stem | Quill | Alloy | 30° rise | ϕ25.4 bar bore | 80mm length |
| Seat | Del Sol tuned-elastomer Lounge Chair |
| Seat Post | Steel | 25.4mm x 350mm |
| Seat Clamp | Alloy | Ï• 28.6mm | Bolt-on |
| Extras | Rack and fender mounts | Steel cartridge kickstand |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mens | 67° | 67° | 689.1mm (27.1") | 429.8mm (16.9") | 537mm (21.1") | 45mm (1.8") | 1199.4mm (47.2") | 728mm (28.7") | 80mm | 700mm | 170mm | ||||
| ST | 67° | 67° | 689.1mm (27.1") | 389.9mm (15.4") | 537mm (21.1") | 45mm (1.8") | 1199.4mm (47.2") | 526mm (20.7") | 80mm | 700mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
