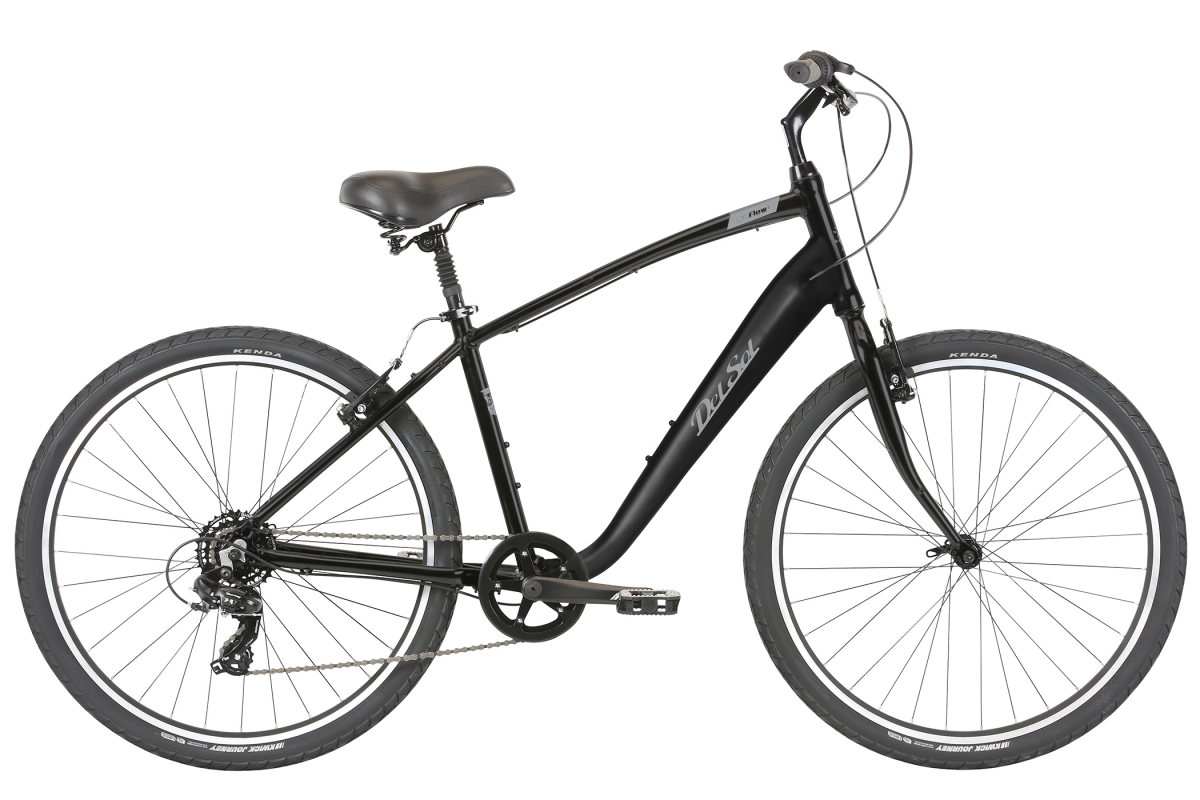

Lxi Flow 1
| Year | 2021 |
|---|---|
| MSRP | $449.99 * |
| Sizes | S/15", M/17", L/20" |
| Colors | Black, Charcoal, Process Cyan |
| Weight | 32 lbs |
Basic doesn't have to skimp on comfort, and simple doesn't mean devoid of features. The feature-laden LXI Flow 1 combines ultimate comfort with ultimate affordability. An upright, see the cars and have the cars see you posture, suspension seatpost, and straightforward 7-speed-twist shifter make riding a bike as simple as... riding a bike.
FEATURES
- Upright ride positioning provides excellent visibility, comfort, and easy on/off the bike transitions
- Mid-range, 1x7 drivetrain with twist shifter provides simple, easy shifting
- Affordable price point keeps comfort within reach
- Relaxed headtube angle provides more predictable and steady steering with nothing sneaking up on you
- Relaxed seat tube angle brings the rider position less over the bars and more evenly positioned, with better posture
| Frame Components | |
|---|---|
| Frame | LXI Flow | Heat-treated 6061 aluminum | Tig-welded construction | Easygoing geometry | Size-Specific Wheel Design | 68mm threaded BSA bottom bracket shell | 135mm quick-release spacing |
| Fork | Steel | 1-1/8" threaded | Size-Specific Wheel Design | V-brake mount | 100mm quick-release spacing |
| Headset | 1-1/8" integrated | threaded |
| Drivetrain | |
| Cranks | 3-piece | Forged alloy | Steel 38T chainring with dual-guide design | 170mm length |
| Bottom Bracket | 68mm threaded BSA shell | JIS square taper | Sealed cartridge |
| Chain | KMC Z7 | 7-speed |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Tourney 7-speed |
| Derailleur Shifter | Shimano Revo 7-speed |
| Pedals | Causeway flattoppers | Shock-absorbing Kraton inserts |
| Wheels | |
| Tires | Kenda Kwick Journey S: 26 x 1.75"; M: 27.5 x 1.75"; L: 29 x 1.77" |
| Wheels/Rims | Alloy | Width (internal): 19mm Double-wall | 32h |
| Front Hub | Alloy | 100mm quick release | Rim brake | 32h |
| Rear Hub | Alloy | 135mm quick release | Rim brake | 7-speed freehub | 32h |
| Freewheel/Cassette | Shimano Tourney | 7-speed | Mid-range | 12-32T |
| Spokes | Stainless | 14g |
| Braking System | |
| Brakes | Alloy | V-brakes |
| Brake Levers | Alloy | Linear Pull |
| Other Components | |
| Grips | Del Sol Ergo Comfort | Dual Density |
| Handle Bar | Steel Riser Bar | ϕ25.4 bar bore | 80mm rise | 15-degree wrist-saver sweep | 635mm width |
| Stem | Quill | Alloy | 30° rise | ϕ25.4 bar bore | 80mm length |
| Seat | Del Sol Coach | Shock-absorbing springs |
| Seat Post | Suspension | 27.2 x 300mm |
| Seat Clamp | Alloy | Quick release | ϕ 31.8mm |
| Extras | Rack & Fender Mounts |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 15 ST | 68° | 71° | 572mm (22.5") | 381mm (15") | 440mm (17.3") | 40mm (1.6") | 1077mm (42.4") | 430mm (16.9") | 635mm | 170mm | |||||
| M / 17 ST | 68° | 71° | 588mm (23.1") | 432mm (17") | 450mm (17.7") | 55mm (2.2") | 1097mm (43.2") | 445mm (17.5") | 635mm | 170mm | |||||
| S / 15 | 68° | 74° | 575mm (22.6") | 381mm (15") | 440mm (17.3") | 40mm (1.6") | 1080mm (42.5") | 742mm (29.2") | 635mm | 170mm | |||||
| M / 17 | 68° | 74° | 595mm (23.4") | 432mm (17") | 450mm (17.7") | 55mm (2.2") | 1104mm (43.5") | 778mm (30.6") | 635mm | 170mm | |||||
| L / 20 | 68° | 74° | 594mm (23.4") | 508mm (20") | 470mm (18.5") | 63mm (2.5") | 1128mm (44.4") | 845mm (33.3") | 635mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
