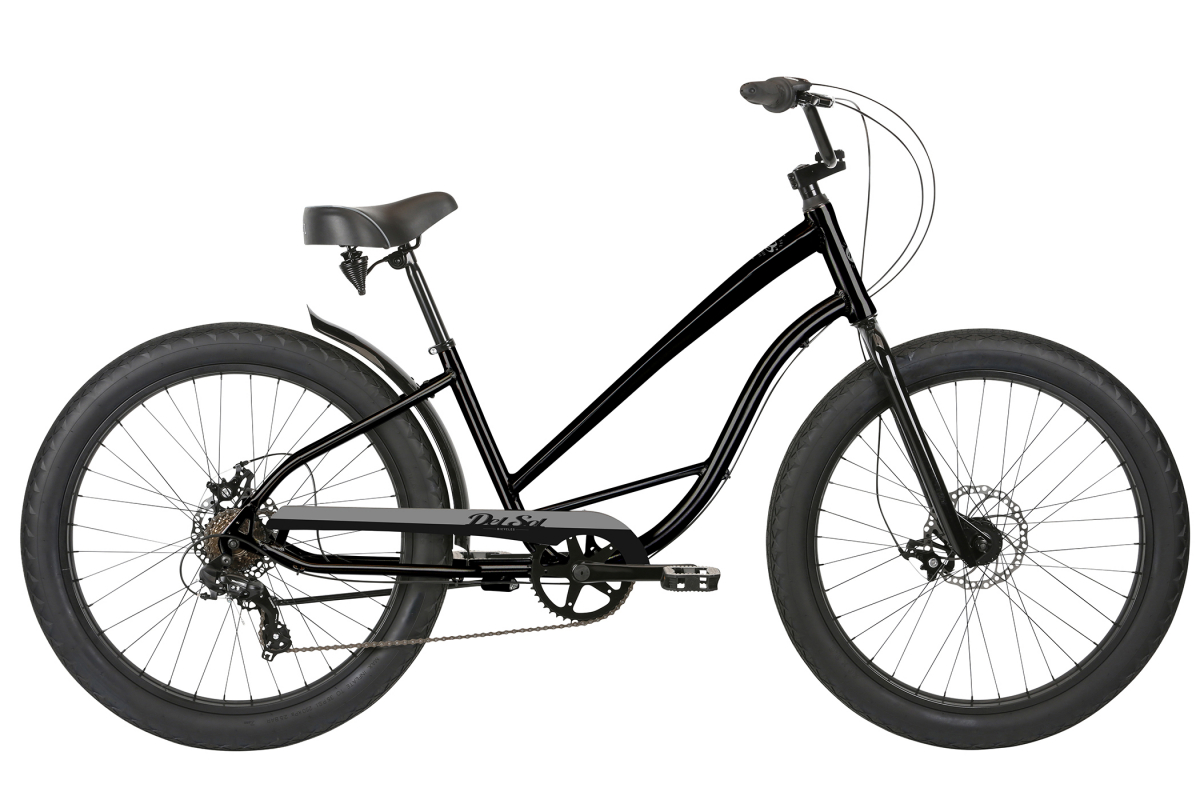

Railer Plus
| Year | 2021 |
|---|---|
| MSRP | $569.99 * |
| Sizes | 17", 15.5" |
| Colors | Brushed Alloy, Black, Vivid Blue |
| Weight | 41 lbs |
Take one part plus bike, one part mountain bike, and one part cruiser and whaddya get? This bike. And it's splendid because you get the gearing of a mountain bike, the supple ride of a plus bike, and the easygoing simplicity of a cruiser. Did we intend that from the start with the Railer Plus? Well, the jury's still out on the one my friend, but one thing's for sure: it's a winning combo, intentional or otherwise, so we'll take it.
FEATURES
- Wide, high-rise BMX-inspired handlebars provide comfort, laid-back positioning, and stylistic stability
- Supple 26+ tires and wide rims smooth out bumps and provide float in sandy conditions
- 8-speed gearing adds versatility to a laid-back cruiser making the Railer Plus equally adept at climbing hills to the beach overlook or blasting down the bike path
- Pedal-forward positioning allows for full leg extension while still easily putting a foot down at stop signs
| Frame Components | |
|---|---|
| Frame | Railer Plus | Rust-proof 6061 heat-treated aluminum | Tig-welded constuction | Easygoing geometry | Pedal-forward design | 73mm threaded BSA bottom bracket shell | I.S. disc brake mount | 141mm spacing | Cartridge kickstand mount |
| Fork | Railer Hi-Ten Plus Cruiser |
| Headset | 1-1/8" integrated | threaded |
| Drivetrain | |
| Cranks | 3-piece | Forged alloy | 42T chainring with dual-guide design | 170mm length |
| Bottom Bracket | Threaded 73mm BSA shell | JIS square taper | Sealed cartridge |
| Chain | KMC Z8.3 | 8-speed |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Tourney TX800 | 8-speed |
| Derailleur Shifter | Shimano Revo twist shifter |
| Pedals | Boardwalk cruiser | Shock-absorbing Kraton inserts |
| Wheels | |
| Tires | Railer Plus 26 x 3.0" |
| Wheels/Rims | Alloy | Width (internal): 50mm | 36h |
| Front Hub | Steel | 3/8" x 100mm | Bolt-on | I.S. 6-bolt disc | 36h |
| Rear Hub | Alloy | 3/8" x 141mm | Bolt-on | I.S. 6-bolt disc | HG freehub | 36h |
| Freewheel/Cassette | Shimano Tourney CS-HG200-8 cassette | 14-32T | 8-speed |
| Spokes | Stainless | 14g |
| Braking System | |
| Brakes | Tektro MD280 | Mechanical disc brake | I.S. mount | I.S. 6-bolt 180/160mm rotors |
| Brake Levers | Alloy | Linear pull |
| Other Components | |
| Grips | Del Sol Foam Cruiser |
| Handle Bar | Railer Throwback | 805mm wide |
| Stem | Railer BMX Throwback | Alloy | Ï•25.4 bar bore | 1-1/8" threadless |
| Seat | Del Sol Cruiser HD-tuned Lounge Chair |
| Seat Post | Alloy | 27.2mm x 350mm |
| Seat Clamp | Alloy | Ï• 31.8mm | Bolt-on |
| Extras | Rear moto fender | Rack mounts | Steel cartridge kickstand |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mens | 67° | 69.5° | 690mm (27.2") | 458mm (18") | 537mm (21.1") | 50mm (1.9") | 1224mm (47.4") | 777mm (30.6") | 63.5mm | 805mm | 170mm | ||||
| ST | 67° | 69.5° | 676mm (26.6") | 422mm (16.6") | 537mm (21.1") | 50mm (1.9") | 1224mm (46.8") | 590mm (23.2") | 63.5mm | 805mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
