Race LT Pro 24
| Year | 2024 |
|---|---|
| MSRP | * |
| Sizes | 21.75" |
| Colors | Blue |
| Weight |

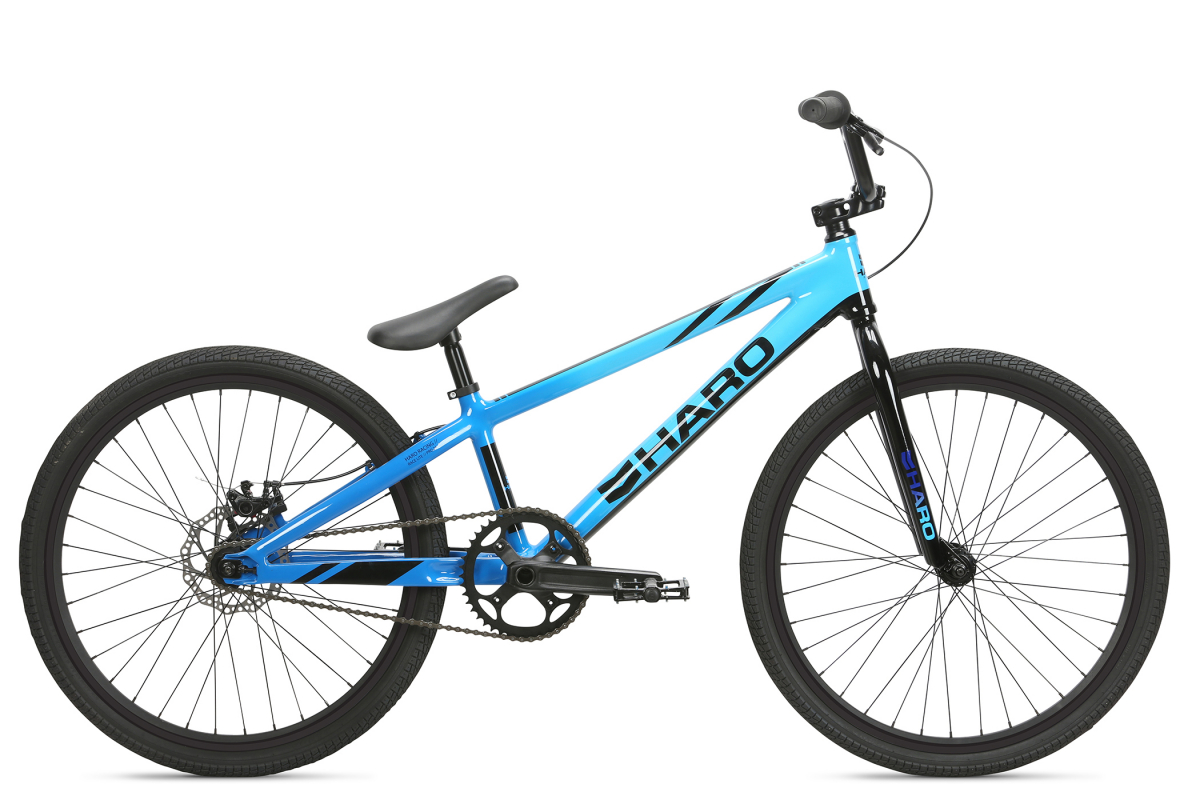

Big wheel feels. The Race Lite Pro 24 is smooth, stable and fast on the track. Built on our heat-treated aluminum Race Lite frame, upsized for 24" wheels with a 21.75" top tube, You also get 24-sized chromoly forks and bars, along with the same high-performance spec as its 20" family members: 2-piece 175mm alloy cranks with a sealed BB86 bottom bracket and 24" alloy wheels rolling on sealed bearings. For the cruiser crew, the Pro Lite 24 is ready-to-go.
FEATURES
- 6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners. 21.75" top tube length.
- Full chromoly 1 1/8" Threadless Steerer w/ Tapered Legs
- 2-pc 175mm Forged Alloy w/ 24mm Hollow Spindle. 40T chainring.
- 24" Alloy 36h, double wall rims
- 36h Alloy sealed bearing hubs with w/disc 16T cassette rear
- Kenda "Konversion" tires. 24 x 1.95 front, 24 X 1.75" rear.
| Frame Components | |
|---|---|
| Frame | 6061-T6 Heat Treated Alloy PTC Disc Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioners. 21.75" top tube. |
| Fork | Full chromoly 1 1/8" Threadless Steerer w/ Tapered Legs |
| Headset | 1-1/8"" Sealed Threadless |
| Drivetrain | |
| Cranks | 2-pc Forged Alloy w/ 24mm Hollow Spindle - 175mm - 44t Alloy Chainring |
| Sprocket | 40t Alloy Chainring |
| Bottom Bracket | Press-Fit BB86, Sealed Bearing |
| Gearing | 40/16 |
| Chain | KMC Z33 1/2 X 3/32" |
| Pedals | Alloy DX, 9/16" |
| Wheels | |
| Tires | Kenda Konversion 24 X 1.95 front, 24 X 1.75" rear. |
| Wheels/Rims | 24" Alloy 36h, Double Wall |
| Front Hub | 36h Alloy Sealed-Bearing |
| Rear Hub | 36h sealed disc 16T cassette rear |
| Freewheel/Cassette | 16t Cassette |
| Spokes | 14 g |
| Braking System | |
| Brakes | Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor |
| Brake Levers | Promax XL-373 Two Finger |
| Other Components | |
| Grips | Micro-Knurl Grip |
| Handle Bar | Haro full chromoly, 5.25" Rise |
| Stem | Forged Alloy Top-Load, 45mm reach |
| Seat | Haro Slim Plastic Pivotal |
| Seat Post | Alloy Pivotal, 27.2mm |
| Seat Clamp | Alloy, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 24 | 73.3° | 71° | 553mm (21.75") | 266.5mm (10.5") | 397mm (15.6") | 305mm (12") | 599mm (23.6") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
