Race LT Expert XL

Year 2024
MSRP *
Sizes 20"
Colors Black
Weight

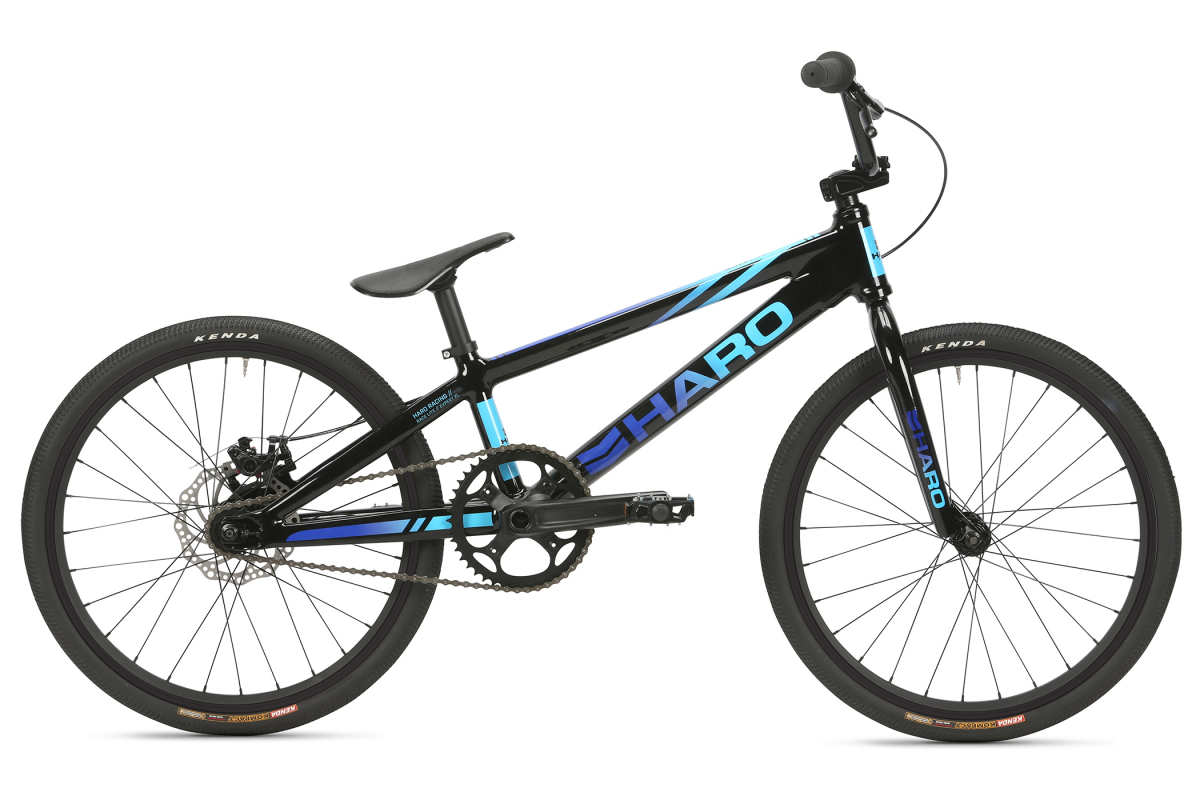

Almost there. Just short of full-sized, the Haro Race Lite Expert XL features a 20" top tube length with room to move. Lightweight aluminum construction with a sturdy chromoly fork to handle the hard landings of the learning curve. The parts are size-matched to fit the slightly longer frame with 170mm 2-piece alloy cranks and instead of the narrower "Mini" sized wheels and tires of the smaller bikes in the lineup, the Expert XL features 20 X 1.5" alloy rims with a 1.65" front and 1.5" rear tire for more surface contact to put the power to the ground. A rear disc brake slows your roll when you've crossed the finish line.

FEATURES

  • 6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners. 20" top tube.
  • Full chromoly 1" with threadless steerer tube
  • 2-pc Forged Alloy 165mm crank w/ 24mm hollow spindle. 38T chainring.
  • 20" Alloy 36h double wall rims
  • 36h alloy sealed bearing hubs w/disc 15T cassette rear
  • Kenda "Konversion" tires: 20 x 1.65" front/20 x 1.50" rear
SPECIFICATIONS
Frame Components
Frame 6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners
Fork Full chromoly 1 1/8" Threadless Steerer w/tapered legs
Headset 1-1/8" Sealed Threadless
Drivetrain
Cranks 2-pc Forged Alloy w/ 24mm Hollow Spindle. 165mm
Sprocket 38t Alloy Chainring
Bottom Bracket Press-Fit BB86, Sealed Bearing
Gearing 38/15
Chain KMC Z33 1/2 X 3/32"
Pedals Alloy DX, 9/16"
Wheels
Tires Kenda "Konversion" tires: 20 x 1.65" front/20 x 1.50" rear
Wheels/Rims 20" Alloy 36h, Double Wall
Front Hub 36h Alloy Sealed-Bearing
Rear Hub 36h Alloy Sealed-Bearing w/ Disc Cassette Rear
Freewheel/Cassette 15t Cassette
Spokes 14g
Braking System
Brakes Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor
Brake Levers Promax XL-373 Two Finger
Other Components
Grips Micro-Knurl Grip
Handle Bar Haro Mini Alloy Bar, 6.5" Rise
Stem Forged Alloy Top-Load, 45mm Ext.
Seat Haro Slim Plastic Pivotal
Seat Post Alloy Pivotal, 27.2mm
Seat Clamp Alloy, 31.8mm
GEOMETRY
Size Head Angle Seat Angle Top Tube Seat Tube Chainstay BB Height Stand Over
20 73° 70° 507mm (20") 224mm (8.8") 352mm (13.9") 280mm (11") 495.3mm (19.5")

RESOURCES

Owner's manual: Bike Manual PDF

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
