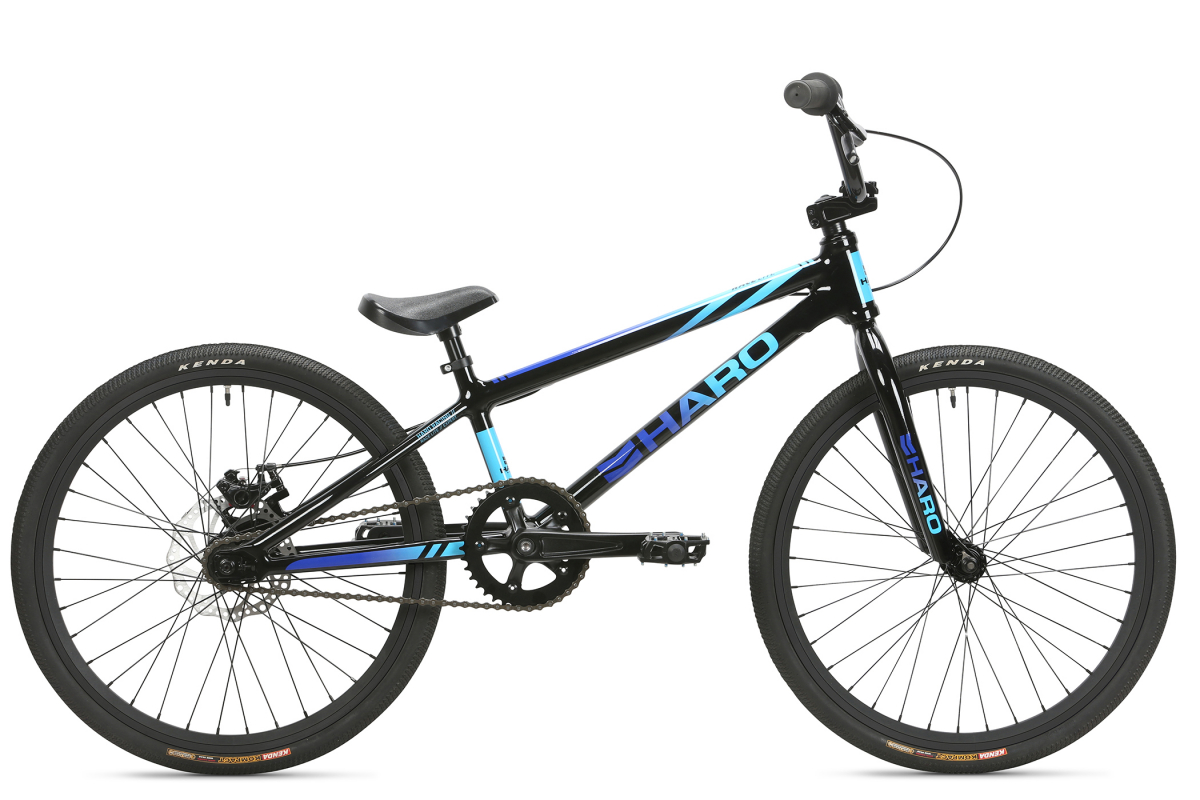

Race LT Expert
| Year | 2024 |
|---|---|
| MSRP | * |
| Sizes | 19" |
| Colors | Black |
| Weight |
Moving up in the ranks? Whether you're racing in the expert class or not, the Haro Race Lite Expert is the perfect bike for riders that have outgrown a Mini but are not ready for a full-sized machine. A heat-treated alloy frame with a 19" top tube length provides knee room and stability at full speed. The Expert is the smallest bike in the Haro lineup to feature a rear disc brake and has a sealed cassette rear hub and bottom bracket too. Looks fast, goes fast, stops easy.
FEATURES
- 6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners. 19" top tube.
- Full chromoly 1" with threadless steerer tube
- 2-piece forged alloy 155mm crank w/24mm hollow spindle. 38T chainring.
- 20" alloy 28h double-wall rims
- 28h alloy hubs with sealed 15T cassette rear
- Kenda "Kompact" 20 x 1 1/8" tires
| Frame Components | |
|---|---|
| Frame | 6061-T6 Heat Treated Alloy Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner |
| Fork | Full chromoly 1" Threadless Steerer |
| Headset | 1" Semi-Sealed Threadless |
| Drivetrain | |
| Cranks | 2-pc Forged Alloy 155mm w/ 24mm Hollow Spindle |
| Sprocket | 38T |
| Bottom Bracket | Sealed Bearing Square Taper |
| Gearing | 38/15 |
| Chain | KMC Z33 1/2 X 3/32" |
| Pedals | Mini Alloy DX, 9/16" |
| Wheels | |
| Tires | Kenda "Kompact" 20 x 1 1/8" |
| Wheels/Rims | 20" Alloy 28h, Double Wall |
| Front Hub | 28h Alloy Sealed-Bearing |
| Rear Hub | 28h Alloy Sealed-Bearing w/ Cassette Rear |
| Freewheel/Cassette | 15t Cassette |
| Spokes | 14g |
| Braking System | |
| Brakes | Promax V-Brake |
| Brake Levers | Promax Two-finger |
| Other Components | |
| Grips | Mini Micro-Knurl Grip |
| Handle Bar | Haro Mini Alloy Bar, 6.5" Rise |
| Stem | Forged Alloy Top-Load, 45mm Ext. |
| Seat | One-piece seat/post combo |
| Seat Post | Alloy, 22.2mm |
| Seat Clamp | Alloy, 25.4mm |
| Extras | Disc brake Adapter, Disc ready rear hub |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 20 | 73° | 71° | 479.5mm (19") | 233mm (9.2") | 349mm (13.7") | 280mm (11") | 495.3mm (19.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
