Race LT Pro
Year | 2024 |
---|---|
MSRP | * |
Sizes | 20.75" |
Colors | Blue |
Weight |

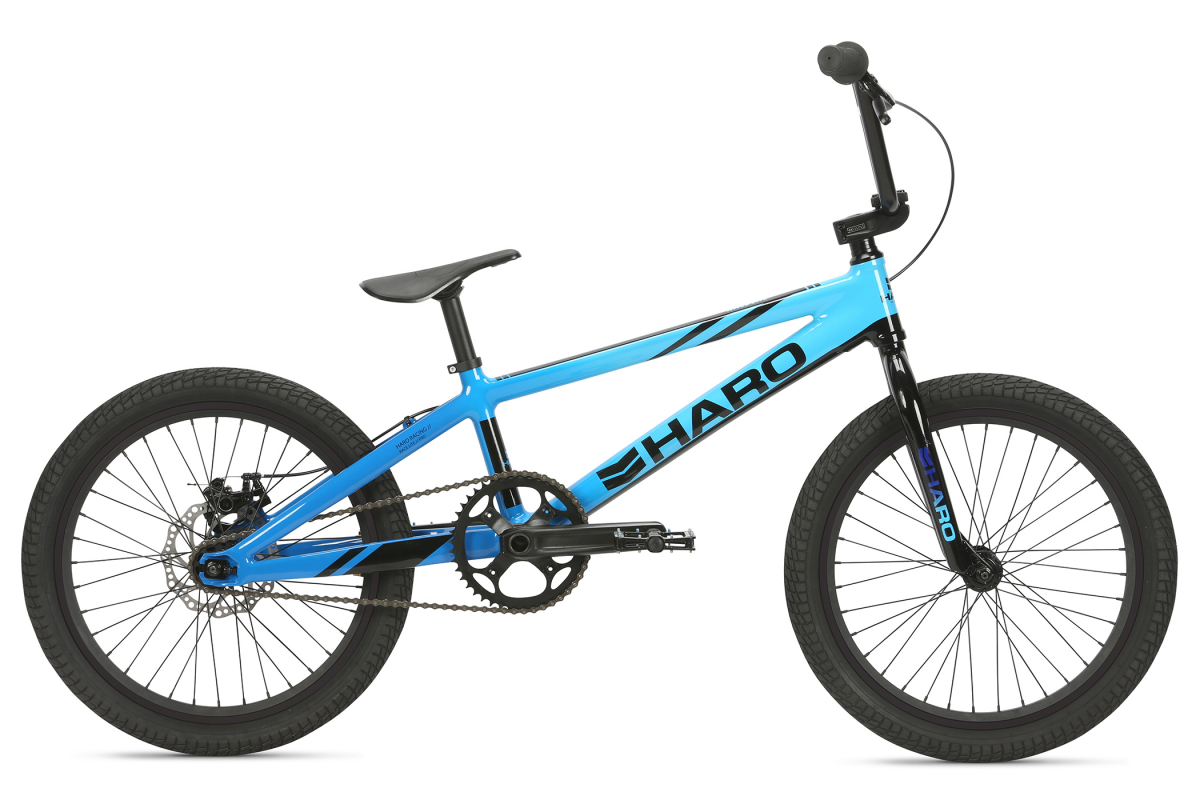

Not quite ready to go pro? The Race Lite Pro is almost fully grown up with a tried & true 20.75" top tube length. Add a durable chromoly fork to take the landings, 8" rise chromoly bars, 170mm forged cranks and pro-sized 20 X 1.75" rims mounted with a 1.95" front and 1.75" Konversion tires, and you have yourself a race-ready BMX machine.
The Race Lite Pro model shares many of the same key components and spec as the Expert XL model but have been sized up slightly. 20.75" top tube frame, 175mm cranks, 8" rise bars and wider rims/tires all contribute to making this platform fit the needs of racers who have grown beyond the Expert XL size.
FEATURES
- 6061-T6 Heat Treated Alloy Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner
- Full chromoly 1 1/8" Threadless Steerer w/ Tapered Legs
- 2-pc Forged Alloy w/ 24mm Hollow Spindle
- 20" Alloy 36h, Double Wall
- 36h Alloy Sealed-Bearing w/Disc 16T Cassette Rear
- Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear
Frame Components | |
---|---|
Frame | 6061-T6 Heat Treated Alloy PTC Disc Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner. 20.75" top tube. |
Fork | Full chromoly 1 1/8" Threadless Steerer w/tapered legs |
Headset | 1-1/8"" Sealed Threadless |
Drivetrain | |
Cranks | 2-pc Forged Alloy w/ 24mm Hollow Spindle - 170mm - 44t Alloy Chainring |
Sprocket | 44t Alloy Chainring |
Bottom Bracket | Press-Fit BB86, Sealed Bearing |
Gearing | 44/16 |
Chain | KMC Z33 1/2 X 3/32" |
Pedals | Alloy DX, 9/16" |
Wheels | |
Tires | Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear |
Wheels/Rims | 24" Alloy 36h, Double Wall |
Front Hub | 36h Alloy Sealed-Bearing |
Rear Hub | 36h sealed disc 16T cassette rear |
Freewheel/Cassette | 16t Cassette |
Spokes | 14 g |
Braking System | |
Brakes | Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor |
Brake Levers | Promax XL-373 Two Finger |
Other Components | |
Grips | Micro-Knurl Grip |
Handle Bar | Haro full chromoly, 8" Rise |
Stem | Forged Alloy Top-Load, 45mm reach |
Seat | Haro Slim Plastic Pivotal |
Seat Post | Alloy Pivotal, 27.2mm |
Seat Clamp | Alloy, 31.8mm |
Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
---|---|---|---|---|---|---|---|
20 | 74° | 72° | 527mm (20.75") | 240mm (9.4") | 364mm (14.3") | 293mm (11.5") | 562mm (22.1") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
