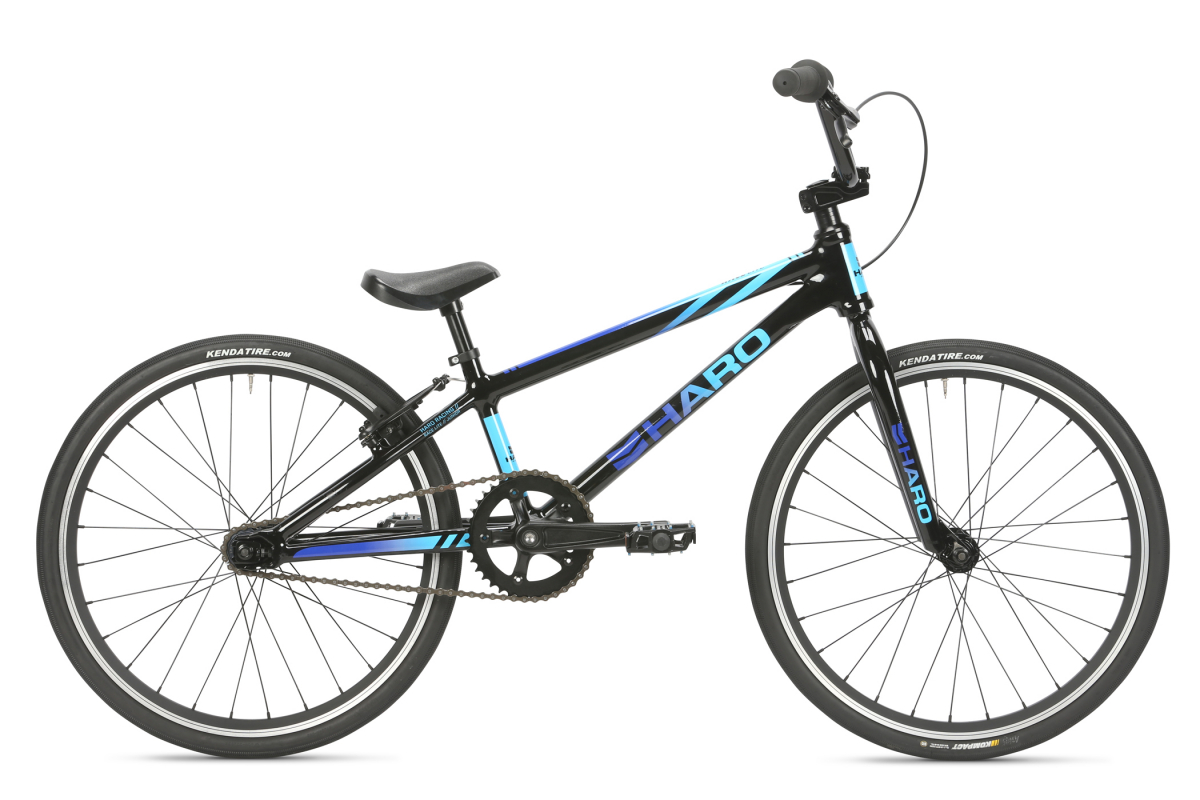

Race LT Junior
| Year | 2024 |
|---|---|
| MSRP | * |
| Sizes | 18.25" |
| Colors | Black |
| Weight |
Rising up in the ranks? The Race Lite Junior fits right in. The Junior shares the same 20 X 1-1/8" wheel size as the Mini but the 6061 alloy frame, 3 piece alloy cranks and handlebars all increase in size to accommodate growing riders. Function and control are achieved through features like integrated chain adjusters, a 100% chromoly fork, CNC alloy stem and a sealed bottom bracket for smooth operation and high speeds.
FEATURES
- 6061-T6 heat-treated alloy frame w/integrated head tube, internal cable routing, 3D dropouts w/integrated chain tensioner. 18.25" top tube
- Full chromoly 1" w/threadless steerer
- 3-piece forged 145mm alloy cranks
- 20" alloy 28h, double-wall rims
- Kenda "Kompact" 20 x 1 1/8" tires
| Frame Components | |
|---|---|
| Frame | 6061-T6 Heat Treated Alloy Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner. 18.3" top tube. |
| Fork | Full chromoly 1" Threadless Steerer |
| Headset | 1" Semi-Sealed Threadless |
| Drivetrain | |
| Cranks | 3-pc Forged Alloy - 145mm - 38t Alloy Chainring |
| Sprocket | 38t Alloy Chainring |
| Bottom Bracket | Sealed Bearing Square Taper |
| Gearing | 38/14 |
| Chain | KMC Z33 1/2 X 3/32" |
| Pedals | Mini Alloy DX, 9/16" |
| Wheels | |
| Tires | Kenda "Kompact" 20 x 1 1/8" |
| Wheels/Rims | 20" Alloy 28h, Double Wall |
| Front Hub | 28h Alloy sealed bearing |
| Rear Hub | 28h Alloy sealed bearing, 14T cassette |
| Freewheel/Cassette | 14T cassette |
| Spokes | 14 g |
| Braking System | |
| Brakes | Promax V-Brake |
| Brake Levers | Promax 2-finger |
| Other Components | |
| Grips | Mini Micro-Knurl Grip |
| Handle Bar | Haro Mini Alloy Bar, 5" Rise |
| Stem | Forged Alloy Top-Load, 45mm Ext. |
| Seat | One-piece seat/post combo |
| Seat Post | Alloy, 22.2mm |
| Seat Clamp | Alloy, 25.4mm |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 20 | 73° | 71° | 464.9mm (18.3") | 232.7mm (9.2") | 346mm (13.6") | 280mm (11") | 495.3mm (19.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
