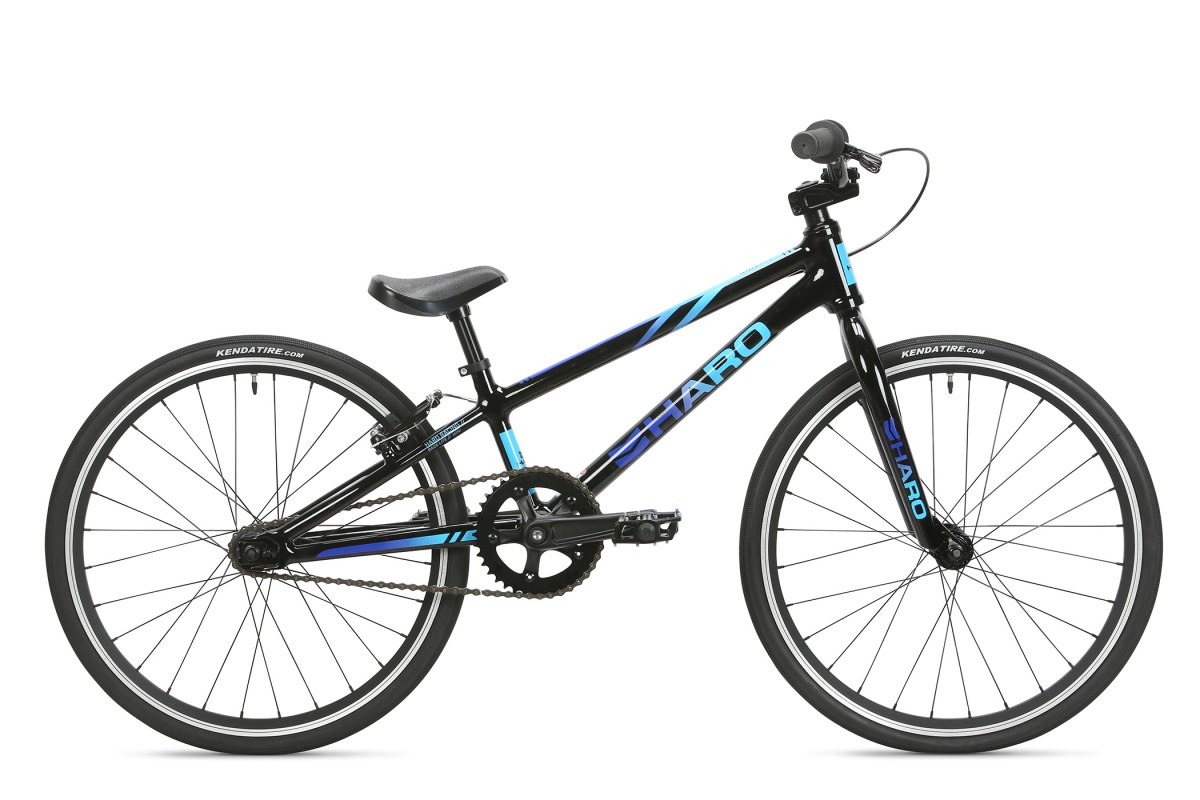

Race LT Mini

Year 2024
MSRP *
Sizes 17.75"
Colors Black
Weight

The Race Lite Mini is designed around a 6061 alloy frame with race specific geometry and a 17.75" top tube length that fits little riders just right. 20 X 1-1/8" sealed alloy wheel set. Scaled-down 3-piece 130mm alloy race cranks for minimal resistance for maximum power from little legs.

FEATURES

  • 6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners
  • Full chromoly 1" with threadless steerer tube
  • 3-pc forged 130mm alloy cranks with sealed BB
  • 20" Alloy 28h, double-wall rims
  • Kenda "Kompact" tires 20 x 1 1/8"
SPECIFICATIONS
Frame Components
Frame 6061-T6 Heat Treated Alloy Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner. 17.75" top tube length
Fork Full Chromoly 1" Threadless Steerer
Headset 1" Semi-Sealed Threadless
Drivetrain
Cranks 3-pc Forged Alloy - 130mm - 38t Alloy Chainring
Sprocket 38t Alloy Chainring
Bottom Bracket Sealed Bearing Square Taper
Gearing 38/14
Chain KMC Z33 1/2 X 3/32"
Pedals Mini Alloy DX, 9/16"
Wheels
Tires Kenda "Kompact" 20 x 1 1/8"
Wheels/Rims 20" Alloy 28h, Double Wall
Front Hub 28h Alloy sealed bearing
Rear Hub 28h Alloy sealed bearing, 14T cassette
Freewheel/Cassette 14t cassette
Spokes 14 g
Braking System
Brakes Tektro V-Brake
Brake Levers Tektro two finger
Other Components
Grips Mini Micro-Knurl Grip
Handle Bar Haro Mini Alloy Bar, 2" Rise
Stem Forged Alloy Top-Load, 45mm Ext.
Seat One-piece Mini seat/post combo
Seat Post Alloy, 22.2mm
Seat Clamp Alloy, 25.4mm
GEOMETRY
Size Head Angle Seat Angle Top Tube Seat Tube Chainstay BB Height Stand Over
20 72° 71° 447.7mm (17.75") 212mm (8.3") 339mm (13.3") 280mm (11") 469.9mm (18.5")

RESOURCES

Owner's manual: Bike Manual PDF
