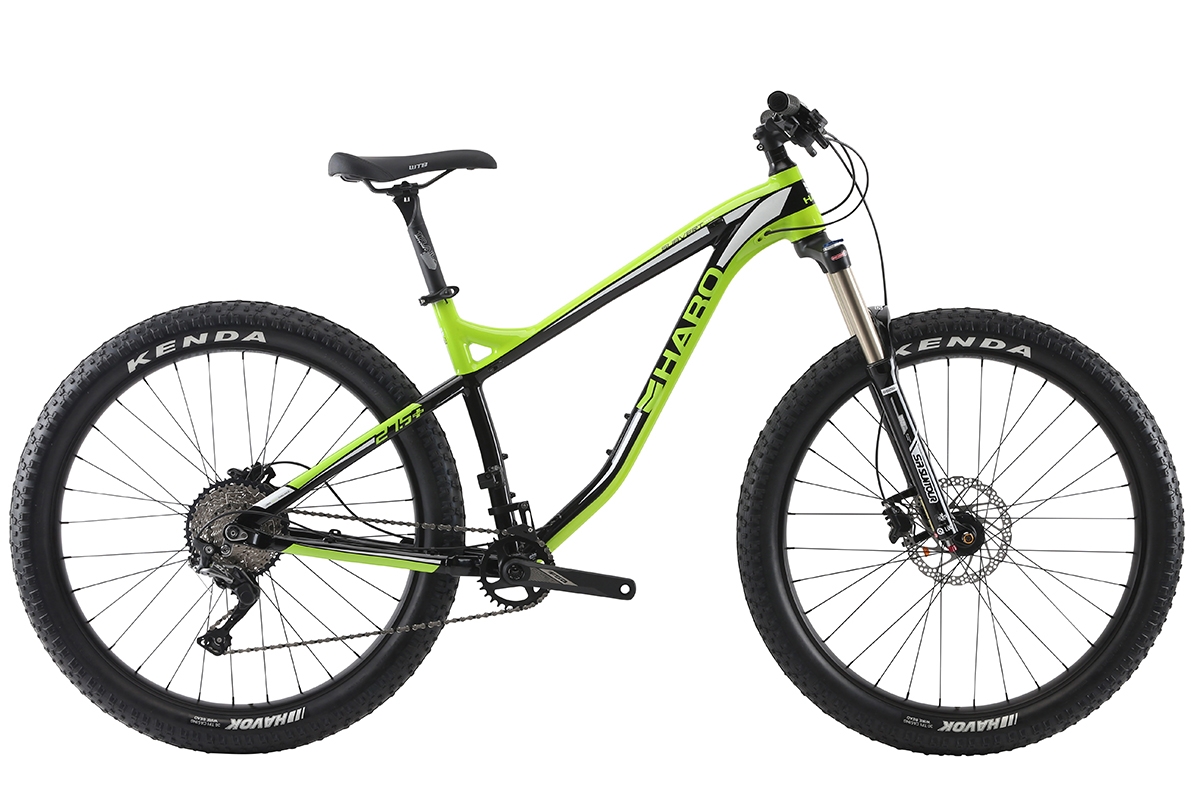

Subvert HT5

  • Year: 2017
  • MSRP: $1,629.99 *
  • Sizes: 14.5", 16", 18", 20.5"
  • Colors: Neon Green / White
  • Weight:

Trust the Subvert HT5, a Plus hardtail designed to carry you with reliable ease through your wildest days. Start with a high-end 6061-T6 alloy frame engineered around 27.5" Plus wheels, and the comfort and control of 3.0 Plus tires. Add a simple and effective 1x11 drive train featuring all new Shimano SLX 7000 components, a new FSA Comet 1x crankset, and a Suntour Raidon fork. A revamped Ritchey cockpit rounds out a component package that is light, effective, and all-day-durable.

FEATURES

  • 6061-T6 alloy Hardtail frame, 27.5" Plus geometry, tapered 1.5" head tube, 73mm BB shell, 12x148mm Boost thru-axle dropouts
  • MY17 SR Raidon RLR 27.5 Plus fork, tapered alloy steerer, 120mm travel, air spring, w/ remote lockout & Boost 15x110mm thru-axle
  • New FSA Comet Modular Boost crankset, 30T Megatooth Crmo Chainring
  • New Shimano SLX 7000 1x11-spd Shadow Plus rear derailleur & shifter
  • New Shimano SLX 7000 11-42T cassette
  • Ritchey Trail handlebar & seat post
  • WTB Scraper 27.5" Plus i40 rims w/ TCS i40 rim tape, Tubeless ready
  • Kenda Havoc 27.5x3.0" tires, TCS, Aramid beads, 120 tpi
  • Shimano BR-M395 Hydraulic disc brakeset
SPECIFICATIONS
Frame Components
Frame 6061-T6 Series Alloy Hardtail Frame, 27.5" Plus / 29" Geometry, Tapered 1.5" Head Tube, 73mm BB Shell, 12X148mm Boost Thru-Axle Dropouts, Internal Cable Routing
Fork 2017 SR Suntour Raidon 32 RLR DS-27.5 Plus; 1-1/8 - 1.5in Tapered Alloy Steerer, 120mm Travel, Air Spring w/ Remote Lockout, Boost 150x110mm Thru-Axle
Headset FPD Dozer-1048 w/ 1.5" ACB Bottom For 44/56mm Head Tube
Frame Shock N/A
Drivetrain
Cranks FSA Comet Modular MegaExo Boost, 30t Megatooth Crmo Chainring
Bottom Bracket Mega Exo BB-7100 Boost
Chain KMC X11-1 NP/GY, 1/2" X 11/128", 1x11 Specific
Front Derailleur N/A
Rear Deralleur 2017 Shimano SLX, RD-M7000, SGS 10/11-Spd Top Normal, Shadow Plus
Derailleur Shifter 2017 Shimano SLX, SL-M7000, 1x11-Spd, Right Side Only, w/o Optical Gear Display
Pedals N/A
Wheels
Tires Kenda Havoc 27.5x3.0", TCS, Aramid Bead 60 tpi
Wheels/Rims WTB Scraper i40 27.5"Plus, 45mm Width, Alloy DW Rims w/ TCS i40 Rim Tape, Pivit Boost Alloy Disc Hubs, 32h, w/ Sealed Bearings, Thru-Axles 150x110mm Front & 12X148mm Rear, 11-Spd Cassette
Freewheel/Cassette Shimano CS-M7000, 11-42t, 11-Spd
Braking System
Brakes Shimano BR-M395 Hydraulic 180/160mm Rotors
Brake Levers Shimano BL-M396
Other Components
Grips Ritchey MTN Trail WCS Lockring, 135mm
Handle Bar Ritchey MTN Trail Low Riser, 20mm Rise, 740 / 760 mm Wide; 9 Deg. Sweep
Stem Pivit Alloy Trail, Cold Forged, 0 Deg., 4-Bolts, 60 To 70mm Ext.
Seat WTB Rocket Sport
Seat Post Ritchey Trail 2-Bolts, Alloy Micro Adjust 31.6mm
Seat Clamp Pivit Alloy 34.9mm Quick Release
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
14.5 68.5° 75 / 71.5° 565mm (22.2") 368mm (14.5") 445mm (17.5") 56mm (2.2") 1102mm (43.4") 683mm (26.9") 626mm (24.6") 382mm (15")
16 68.5° 75 / 71.5° 585mm (23") 406mm (16") 445mm (17.5") 56mm (2.2") 1123mm (44.2") 694mm (27.3") 626mm (24.6") 402mm (15.8")
18 68.5° 75 / 72.2° 615mm (24.2") 457mm (18") 445mm (17.5") 56mm (2.2") 1159mm (45.6") 700mm (27.6") 635mm (25") 435mm (17.1")
20.5 68.5° 75 / 72.8° 630mm (24.8") 520mm (20.5") 445mm (17.5") 56mm (2.2") 1180mm (46.5") 756mm (29.8") 645mm (25.4") 451mm (17.8")
