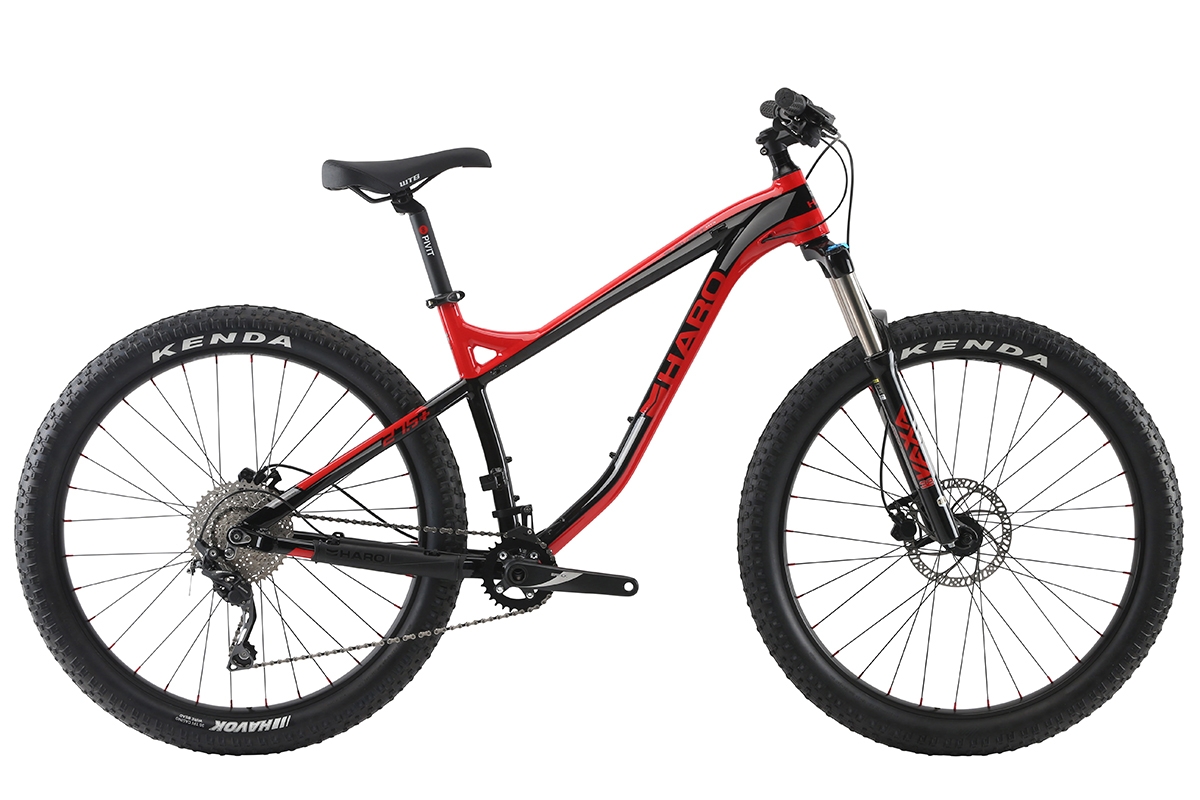

What's your rocky-trail secret? Plush, wide, smooth rolling Kenda Havoc 2.8" tires, pumped to your preferred air pressure: low for maximum cush, or higher for faster rides. Designed for Plus tires, the HT3's 6061-T6 high-end aluminum alloy frame with internal cable routing is paired with the Boost compatible HL Vaxa suspension fork and Pivit Boost alloy disc hubs, to match and compliment oversized Plus tires. Your feature-rich component package includes new 1x10 Shimano / SunRace drive train, 2-pc crankset, Tektro disc brakes and tubeless-ready WTB TCS wheels.
FEATURES
- 6061-T6 27.5" Plus alloy frame, internal cable routing, tapered 1.5" head tube, 12x148mm Boost thru-axle dropouts
- New HL 866 Vaxa fork, 120mm travel, taper steerer, Boost 110mm axle w/ Q/R
- FPD DOZER tapered headset
- 2-pc crankset w/ narrow-wide 30T chainring, 24mm Axle, Boost compatible
- Shimano Deore 1x10 Shadow Plus rear derailleur & Deore shifter
- SunRace 10-spd 11-40T cassette
- New Tubeless ready WTB Scraper i35 rims
- New Kenda Havoc 120 tpi 27.5x2.8" tires
- Pivit Boost alloy disc hubs, 32h, 12x148mm rear thru-axle
- New upper chain-guide
| Frame Components | |
|---|---|
| Frame | 6061-T6 Series Alloy Hardtail Frame, 27.5" Plus / 29" Geometry, Tapered 1.5" Head Tube, 73mm BB Shell, 12X148mm Boost Thru-Axle Dropouts, Internal Cable Routing |
| Fork | HL VAXA 866 HLO 27.5" Plus; w/ Alloy Tapered Steerer 1-1/8 - 1.5in, 110mm Hub Width, 120mm Travel; w/ Hydraulic Lockout, Post Mount, 9mm Q/R Dropouts |
| Headset | FPD Dozer-1048 w/ 1.5" ACB Bottom For 44/56mm Head Tube |
| Frame Shock | N/A |
| Drivetrain | |
| Cranks | Samox TAF31 1x10, 2-Pc, BCD 76, 170/175mm, 30t Narrow Wide Alloy Forged Chainring w/ 24mm Axle, Boost 148 |
| Bottom Bracket | Samox EB2401 Sealed Cartridge, For 53mm Chainline (Boost 148) |
| Chain | KMC X10-1 NP/GY, 1/2" X 11/128", 1x10 Specific w/ Missing Link |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Deore 615, 10-Spd, Top Normal, Shadow Plus |
| Derailleur Shifter | Shimano Deore, 1x10-Spd, Right Side Only, w/ Optical Gear Display |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Havoc 27.5x2.8", TCS, Aramid Bead 60 tpi |
| Wheels/Rims | WTB Scraper i35 27.5"Plus, 35mm Width, Alloy DW Rims w/ TCS I35 Rim Tape, Pivit Boost Alloy Disc Hubs, 32h, 110mm Q/R Axle Front & 12X148mm Thru-Axle Rear, 10-Spd Cassette |
| Freewheel/Cassette | Sunrace CSMS3 11-40t, 10-Spd |
| Braking System | |
| Brakes | Tektro Auriga Hydraulic HD-M285 180/160mm Rotors |
| Brake Levers | Tektro Auriga |
| Other Components | |
| Grips | WTB Weirwolf |
| Handle Bar | Pivit Alloy 25mm Riser Bar 31.8mm, 700 / 720mm Wide |
| Stem | Pivit Alloy Trail 0 Deg., 4-Bolts, 55mm Ext. |
| Seat | WTB Pure Sport |
| Seat Post | Pivit Alloy Micro Adjust 31.6mm |
| Seat Clamp | Pivit Alloy 34.9mm Quick Release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.5 | 68.5° | 75 / 70.5° | 565mm (22.2") | 368mm (14.5") | 445mm (17.5") | 54mm (2.1") | 1097mm (43.2") | 683mm (26.9") | 626mm (24.6") | 382mm (15") | |||||
| 16 | 68.5° | 75 / 71.5° | 585mm (23") | 406mm (16") | 445mm (17.5") | 54mm (2.1") | 1118mm (44") | 694mm (27.3") | 626mm (24.6") | 402mm (15.8") | |||||
| 18 | 68.5° | 75 / 72.2° | 615mm (24.2") | 457mm (18") | 445mm (17.5") | 54mm (2.1") | 1152mm (45.4") | 700mm (27.6") | 635mm (25") | 435mm (17.1") | |||||
| 20.5 | 68.5° | 75 / 72.8° | 630mm (24.8") | 520mm (20.5") | 445mm (17.5") | 54mm (2.1") | 1175mm (46.3") | 756mm (29.8") | 645mm (25.4") | 451mm (17.8") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
