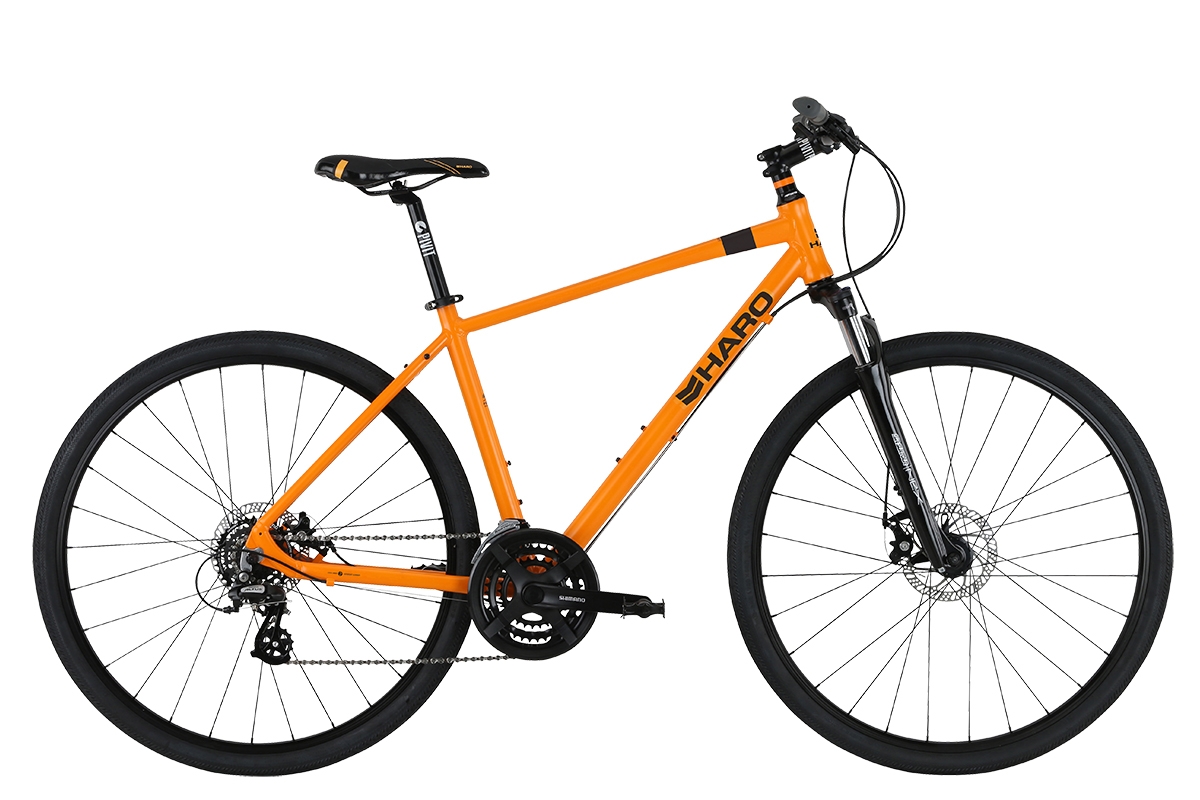

Crunch on the gravel path around the lake, or take off on that climb to the top of the hill. Your Bridgeport, with high-quality aluminum frame designed with Rider-Optimized Geometry, smooth Shimano shifting and 63mm of front suspension, is always ready for a "rode" trip.
FEATURES
- Haro Solum Dual Sport frame with Rider Optimized Geometry, mechanically-shaped alloy tubing, and chainstay disc brake mount
- SR Suntour NEX HLO suspension fork with 63mm travel and hydraulic lockout
- Shimano TY-301 crankset, 48/38/28t and sealed cartridge BB
- Shimano Altus rear derailleur
- Shimano Tourney 3x7-spd EZ Fire shifters
- Shimano Tourney FD-TY510 front derailleur
- Pivit disc brake hubs w/ Alex DC-26 700c double wall rims
- Pivit alloy 25mm riser bar & forged stem
- New Tektro Aires MD-M280 mechanical disc brakes
| Frame Components | |
|---|---|
| Frame | Haro Solum 6061 Alloy w/ Rider-Tuned Geometry |
| Fork | SR Suntour NEX HLO 63mm travel w/ Hydraulic Lockout |
| Headset | FSA Orbit No. 10 |
| Frame Shock | N/A |
| Drivetrain | |
| Cranks | Shimano TY-301 48/38/28t |
| Bottom Bracket | Shimano Sealed Cartridge |
| Chain | KMC Z51 |
| Front Derailleur | Shimano Tourney FD-TY510 |
| Rear Deralleur | Shimano Altus RD-M310-L |
| Derailleur Shifter | Shimano ST-EF-500 3x7-Spd |
| Pedals | VP Nylon Body w/ Steel Cages |
| Wheels | |
| Tires | H-5113 700 x 38c |
| Wheels/Rims | Alex DC-26 700c Alloy DW 32h Rims, Pivit Alloy Disc Cassette Hubs |
| Freewheel/Cassette | Shimano HG-200 7-Spd 12-32t |
| Braking System | |
| Brakes | Tektro Aires MD-M280 Mechanical Disc, 160mm Rotors |
| Brake Levers | Shimano ST-EF-500 |
| Other Components | |
| Grips | Haro Dual Sport |
| Handle Bar | Pivit Alloy 25mm Rise 31.8mm 9° Sweep |
| Stem | Pivit Alloy, 31.8mm |
| Seat | Haro Dual Sport |
| Seat Post | Pivit Alloy Micro Adjust 27.2mm |
| Seat Clamp | Alloy Q/R, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 70.5° | 73° | 575mm (22.6") | 394mm (15.5") | 445mm (17.5") | 1067mm (42") | 700mm (27.6") | ||||||||
| 17.5 | 70.5° | 73° | 585mm (23") | 445mm (17.5") | 445mm (17.5") | 1078mm (42.4") | 725mm (28.5") | ||||||||
| 19 | 70.5° | 73° | 600mm (23.6") | 483mm (19") | 445mm (17.5") | 1093mm (43") | 748mm (29.4") | ||||||||
| 21 | 70.5° | 73° | 615mm (24.2") | 533mm (21") | 445mm (17.5") | 1108mm (43.6") | 794mm (31.3") | ||||||||
| 23 | 70.5° | 73° | 625mm (24.6") | 584mm (23") | 445mm (17.5") | 1119mm (44.1") | 843mm (33.2") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
