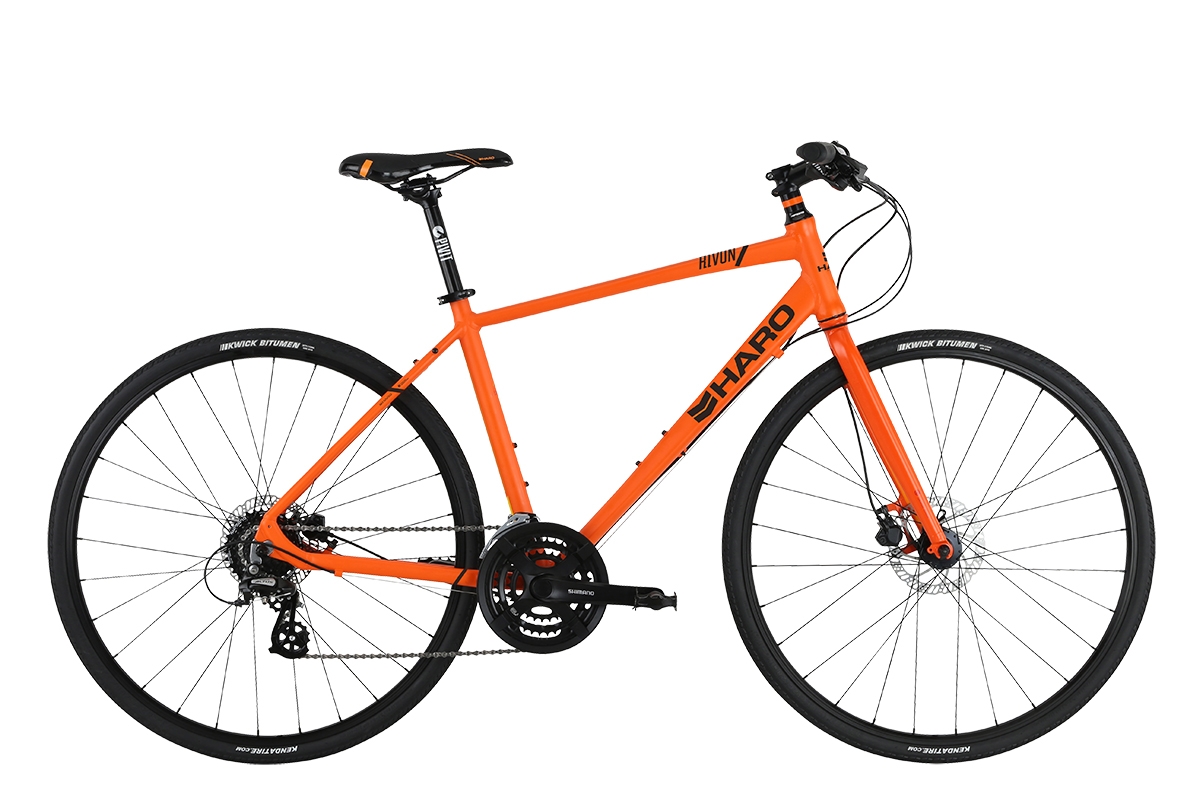

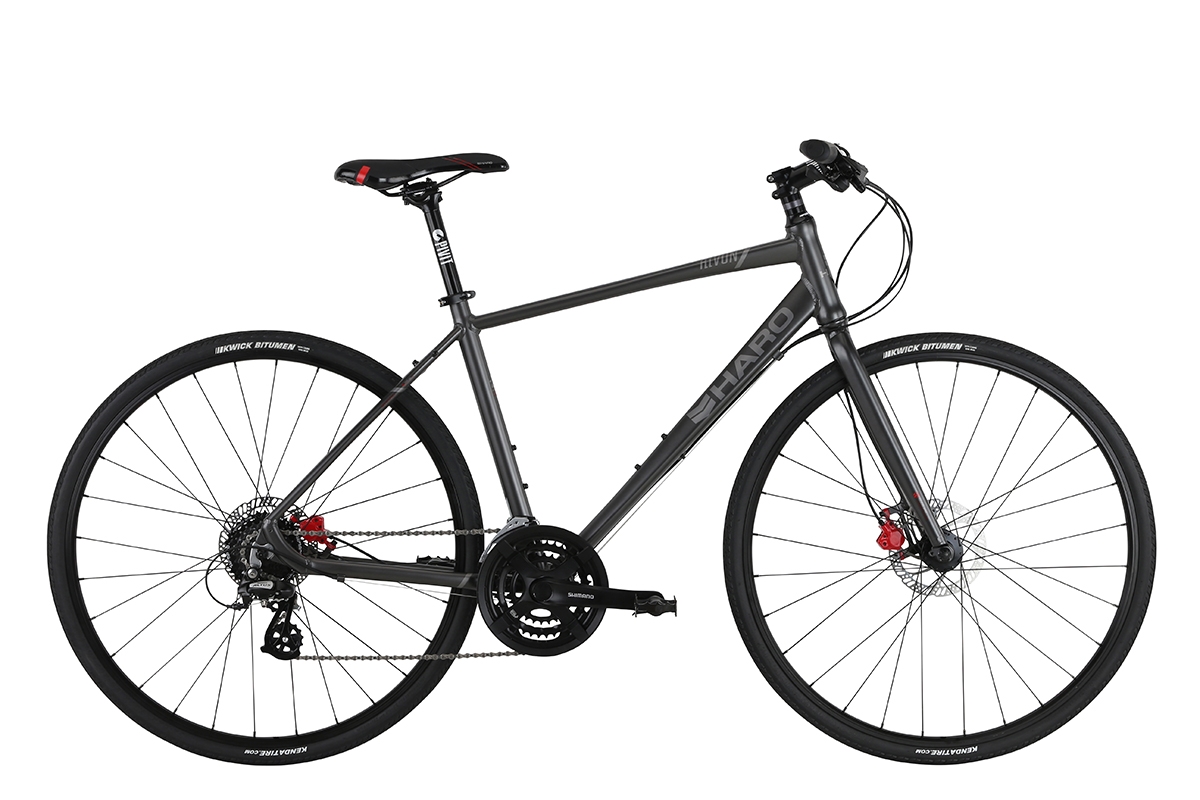

Break up with your car and your therapeutic donut habit. Get outside further, faster and have more fun on the Rivon with aluminum frame and fork with Rider Optimized Geometry, 24 speeds, and refined Tektro hydraulic disc brakes.
FEATURES
- Haro Ventus Sport Hybrid frame with Rider Optimized Geometry, mechanically-shaped alloy tubing, and chainstay disc brake mount
- Haro Ventus alloy fork with Chromoly steerer tube and post-mount disc brake
- New 2017 Shimano TY501 48/38/28t crankset and sealed cartridge BB
- Shimano Altus 8 speed shifters, front and rear derailleurs
- New Tektro Auriga hydraulic brakes
- Shimano 12-32t 8-spd cassette
- Pivit alloy flattop bar and forged stem
- Kenda Bitumen 700 x 32c tires
- Pivit alloy disc hubs w/ Alex DC-26 700c alloy double wall rims
- VP nylon body w/ steel cages
| Frame Components | |
|---|---|
| Frame | Haro Ventus 6061 Alloy w/ Rider-Tuned Geometry |
| Fork | Haro Ventus Alloy w/ Post Disc Mount |
| Headset | FSA Orbit No. 10 |
| Frame Shock | N/A |
| Drivetrain | |
| Cranks | Shimano TY-501 48/38/28t |
| Bottom Bracket | Shimano Sealed Cartridge |
| Chain | KMC X8 |
| Front Derailleur | Shimano Altus M191 |
| Rear Deralleur | Shimano Altus M310 |
| Derailleur Shifter | Shimano SL-M310 8-Spd |
| Pedals | VP Nylon Body w/ Steel Cages |
| Wheels | |
| Tires | Kenda Kwick Bitumen 700 x 32c |
| Wheels/Rims | Alex DC-26 700c Alloy DW 32h Rims, Pivit Alloy Disc Cassette hubs |
| Freewheel/Cassette | Shimano HG-200-8 8-Spd 12-32t |
| Braking System | |
| Brakes | Tektro Auriga Hydraulic Disc, 160mm Rotors |
| Brake Levers | Tektro Auriga |
| Other Components | |
| Grips | Haro Dual Sport |
| Handle Bar | Pivit Alloy 25mm Rise 31.8mm 9° Sweep |
| Stem | Pivit Alloy, 31.8mm |
| Seat | Haro Ventus |
| Seat Post | Pivit Alloy Micro Adjust 27.2mm, 2 Bolts |
| Seat Clamp | Alloy Q/R, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 70.5° | 73.5° | 555mm (21.9") | 394mm (15.5") | 445mm (17.5") | 1052mm (41.4") | 715mm (28.1") | ||||||||
| 17.5 | 70.5° | 73.5° | 570mm (22.4") | 445mm (17.5") | 445mm (17.5") | 1069mm (42.1") | 725mm (28.5") | ||||||||
| 19 | 71° | 73.5° | 580mm (22.8") | 483mm (19") | 445mm (17.5") | 1075mm (42.3") | 748mm (29.4") | ||||||||
| 21 | 71.5° | 73° | 600mm (23.6") | 533mm (21") | 445mm (17.5") | 1085mm (42.7") | 794mm (31.3") | ||||||||
| 23 | 71.5° | 73° | 620mm (24.4") | 584mm (23") | 445mm (17.5") | 1106mm (43.5") | 845mm (33.3") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
