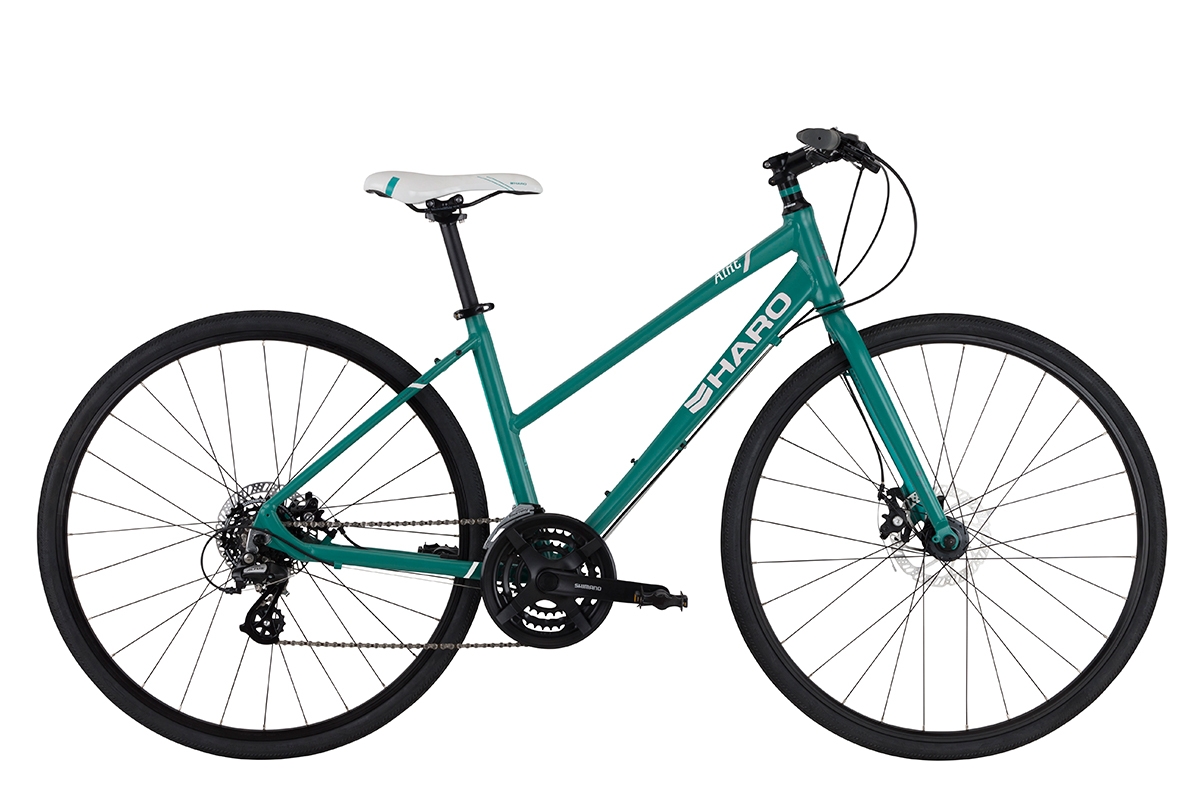

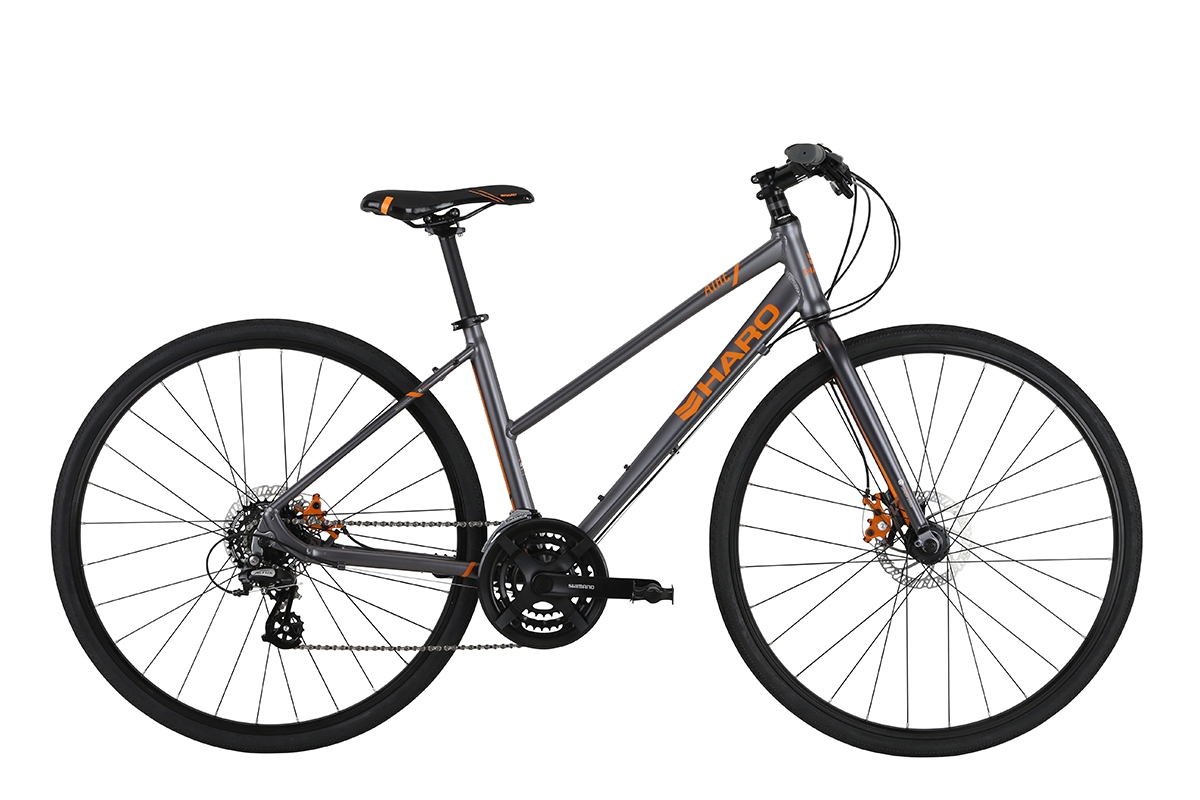

Get that workout glow pedaling through the countryside, or roll with ease on errands in town. You'll be riding with grace and power on the Aire, with lightweight aluminum step-thru frame, safe and powerful disc brakes, and quality Shimano shifting.
FEATURES
- Haro Ventus Sport Hybrid Step-Thru frame with Rider Optimized Geometry, mechanically-shaped alloy tubing, and chainstay disc brake mount
- Haro Ventus steel fork with disc brake mounts
- Shimano TY301 crankset, 48/38/28t and sealed cartridge BB
- Shimano Altus rear derailleur
- Shimano Tourney 7-spd EZ Fire shifters
- Shimano Dual Pull front derailleur
- Pivit alloy disc hubs w/ Alex DC-26 700c alloy double wall rims
- Pivit alloy 9 degree sweep flattop bar, and forged stem
- Tektro Aires mechanical disc brakes
- New Pivit 2-Bolt zero offset seat post
- VP nylon body w/ steel cages
| Frame Components | |
|---|---|
| Frame | Haro Ventus 6061 Alloy w/ Rider-Tuned Geometry |
| Fork | Haro Ventus Hi-Ten steel w/ IS Disc Mount |
| Headset | FSA Orbit No. 10 |
| Frame Shock | N/A |
| Drivetrain | |
| Cranks | Shimano TY-301 48/38/28t |
| Bottom Bracket | Shimano Sealed Cartridge |
| Chain | KMC Z51 |
| Front Derailleur | Shimano Tourney FD-TY510 |
| Rear Deralleur | Shimano Altus RD-M310-L |
| Derailleur Shifter | Shimano ST-EF-500 3x7-Spd |
| Pedals | VP Nylon Body w/ Steel Cages |
| Wheels | |
| Tires | H-5113 700 x 32c |
| Wheels/Rims | Alex DC-26 700c Alloy DW 32h Rims, Pivit Alloy Disc Cassette hubs |
| Freewheel/Cassette | Shimano HG-200 7-Spd 12-32t |
| Braking System | |
| Brakes | Tektro Aires MD-M280 Mechanical Disc, 160mm Rotors |
| Brake Levers | Shimano ST-EF-500 |
| Other Components | |
| Grips | Haro Dual Sport |
| Handle Bar | Pivit Alloy 25mm Rise 31.8mm 9° Sweep |
| Stem | Pivit Alloy, 31.8mm |
| Seat | Haro Ventus |
| Seat Post | Pivit Alloy Micro Adjust 27.2mm, zero offset, 2 bolts |
| Seat Clamp | Alloy Q/R, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 69.5° | 74° | 535mm (21.1") | 381mm (15") | 445mm (17.5") | 1048mm (41.3") | 654mm (25.7") | ||||||||
| 16 | 70.5° | 74° | 545mm (21.5") | 432mm (17") | 445mm (17.5") | 1050mm (41.3") | 665mm (26.2") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
