Bridgeport ST
| Year | 2017 |
|---|---|
| MSRP | $509.00 * |
| Sizes | 14", 16" |
| Colors | SG Grey / Orange, SG Purple |
| Weight |

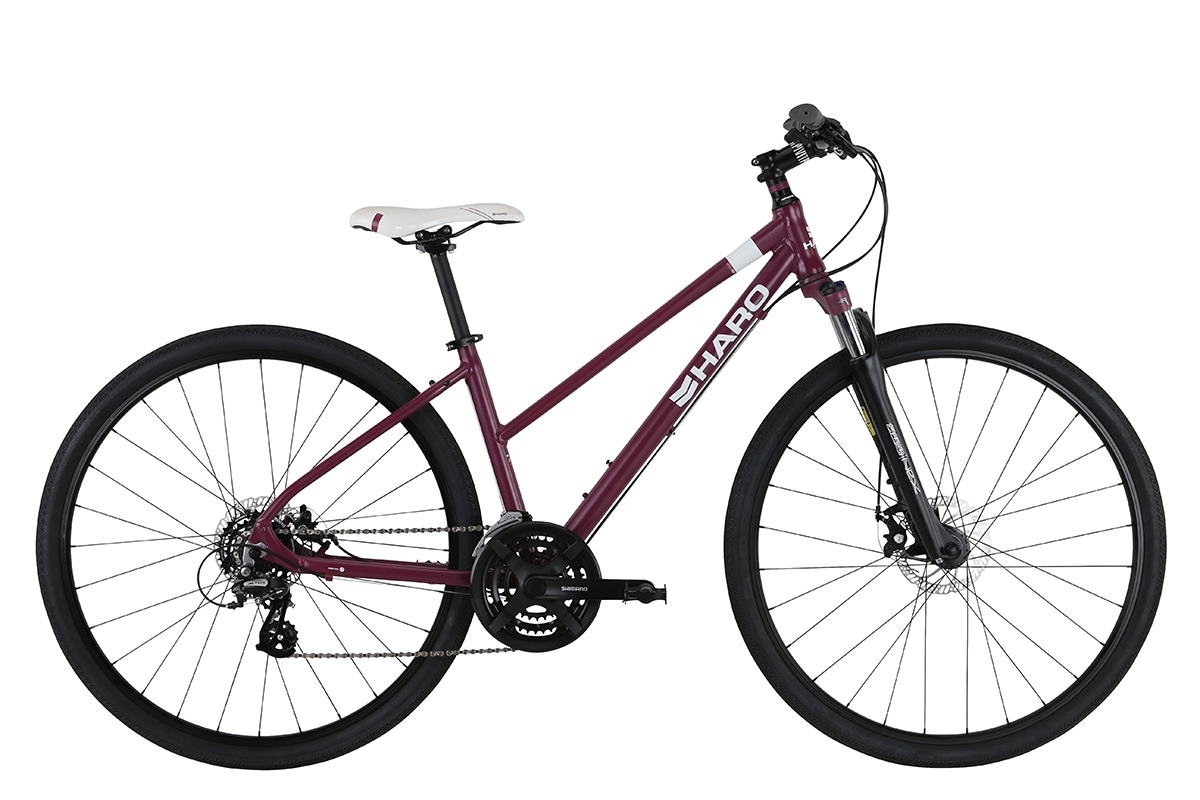

Oh, the places you'll go on your Bridgeport ST, a lightweight Step-Thru aluminum bike with hill-conquering Shimano gearing, a comfy 63mm of front suspension, and safe and powerful mechanical disc brakes. Available in color choices as beautiful as the view, the Bridgeport ST is your Instagram-ready riding companion.
FEATURES
- Haro Solum Dual Sport Step-Thru frame with Rider Optimized Geometry, mechanically-shaped alloy tubing, and chainstay disc brake mount
- SR Suntour NEX HLO suspension fork with 63mm travel and hydraulic lockout
- Shimano TY-301 crankset, 48/38/28t and sealed cartridge BB
- Shimano Altus rear derailleur
- Shimano Tourney 3x7-spd EZ Fire shifters
- Shimano Tourney front derailleur
- Pivit disc brake hubs w/ Alex DC-26 700c double wall rims
- Pivit alloy 25mm riser bar w/ forged stem
- New Pivit 2-Bolt zero offset seat post
- New Tektro Aires MD-M280 mechanical disc brakes
| Frame Components | |
|---|---|
| Frame | Haro Solum 6061 Alloy w/ Rider-Tuned Geometry, Step-Through |
| Fork | SR Suntour NEX HLO 63mm travel w/ Hydraulic Lockout |
| Headset | FSA Orbit No. 10 |
| Frame Shock | N/A |
| Drivetrain | |
| Cranks | Shimano TY-301 48/38/28t |
| Bottom Bracket | Shimano Sealed Cartridge |
| Chain | KMC Z51 |
| Front Derailleur | Shimano Tourney FD-TY510 |
| Rear Deralleur | Shimano Altus RD-M310-L |
| Derailleur Shifter | Shimano ST-EF-500 3x7-Spd |
| Pedals | VP Nylon Body w/ Steel Cages |
| Wheels | |
| Tires | H-5113 700 x 38c |
| Wheels/Rims | Alex DC-26 700c Alloy DW 32h Rims, Pivit Alloy Disc Cassette Hubs |
| Freewheel/Cassette | Shimano HG-200 7-Spd 12-32t |
| Braking System | |
| Brakes | Tektro Aires MD-M280 Mechanical Disc, 160mm Rotors |
| Brake Levers | Shimano ST-EF-500 |
| Other Components | |
| Grips | Haro Dual Sport |
| Handle Bar | Pivit Alloy 25mm Rise 31.8mm 9° Sweep |
| Stem | Pivit Alloy, 31.8mm |
| Seat | Haro Dual Sport |
| Seat Post | Pivit Alloy Micro Adjust 27.2mm, zero offset, 2 bolts |
| Seat Clamp | Alloy Q/R, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 70° | 74° | 550mm (21.7") | 355mm (14") | 445mm (17.5") | 1058mm (41.7") | 680mm (26.8") | ||||||||
| 16 | 70° | 74° | 572mm (22.5") | 406mm (16") | 445mm (17.5") | 1081mm (42.6") | 680mm (26.8") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
